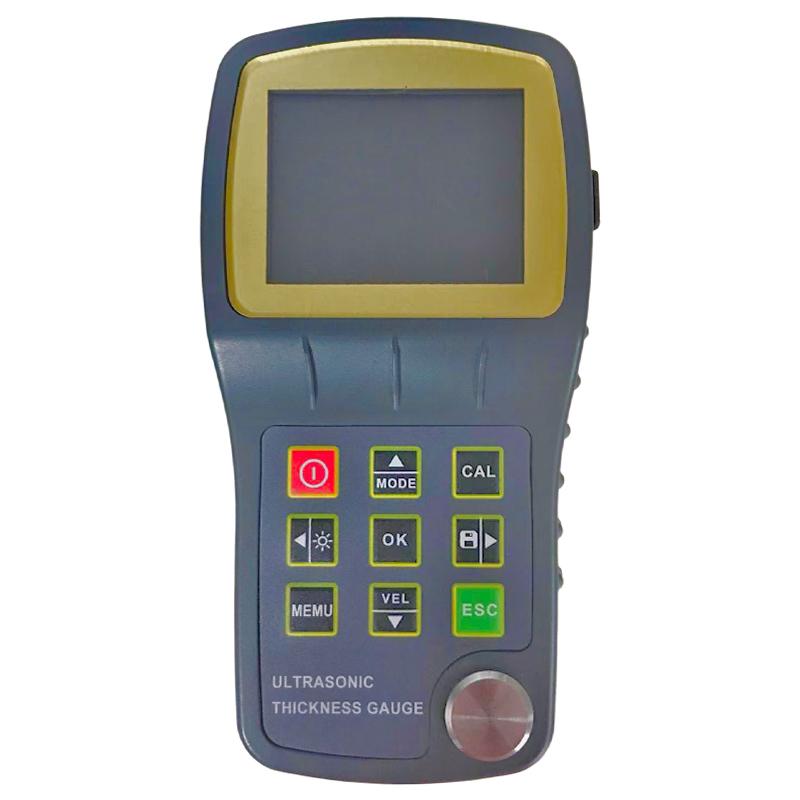

KAIRDA NDT350 split platings Thickness Gauge for penetrating coatings
NDT350
KairDa NDT350 Split platings Thickness GaugeSPEC
KairDa NDT350 Split platings Thickness GaugeDetails

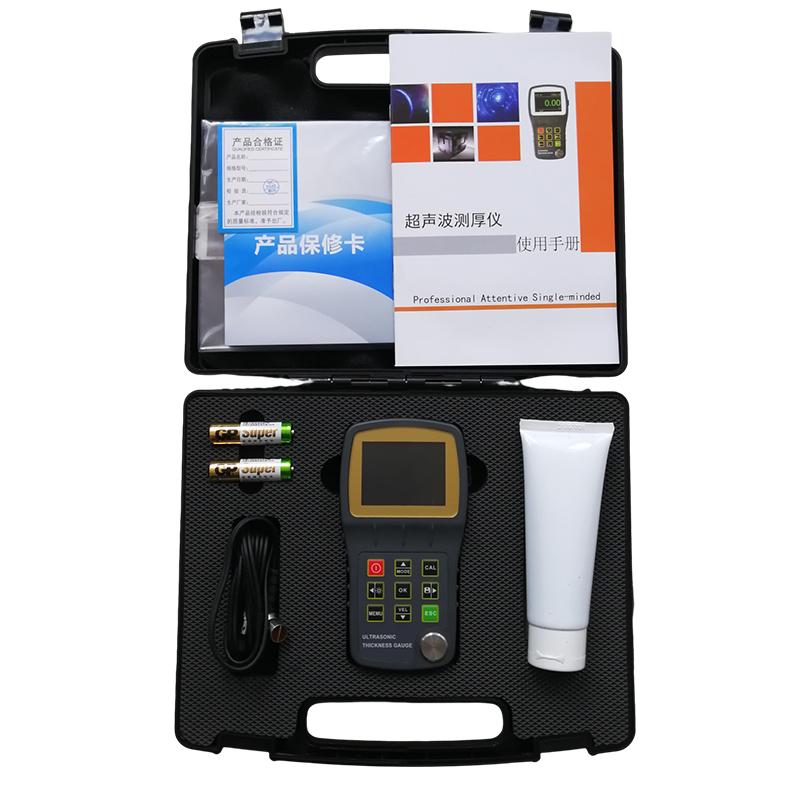

KairDa NDT350 Split platings Thickness GaugePacking list
- SKU
- NB042579
- Measurement range
- Ordinary thickness measurement mode: 0.75~ 300mm (steel, depending on the probe); coating penetration thickness measurement mode: 2~ 100mm (coating thickness 0.1~ 3mm)
- Display resolution
- 0.01mm, 0.1mm adjustable
- Error of indication
- +/- (1% H + 0.1) mm (where H is the actual Film thickness of the measured object)
- Sound speed range
- 1000m/s～9999m/s
- Calibrated mode
- One point calibrated (for conventional Film thickness measurement); Two point calibrated (for curved wall thickness measurement or special applications)
- Measurement frequency
- In normal mode, 4 points per second measurement; in scan mode, 16 points per second measurement, automatically captures the thinnest point
- TF card interface
- Yes, data can be stored using a TF card.
- USB interface
- Yes, it can be connected with a computer to realize data communication.
- Working language
- Chinese, English
- Power
- 2 1.5V AA batteries, with low Voltage prompt function when the power is insufficient
- Automatic shutdown
- Automatic shutdown time can be selected (3, 5, 10, 30 minutes)
- Operating temperature
- 0℃～40℃
- Dimensions
- 145×75×27mm
- Weight
- 240g

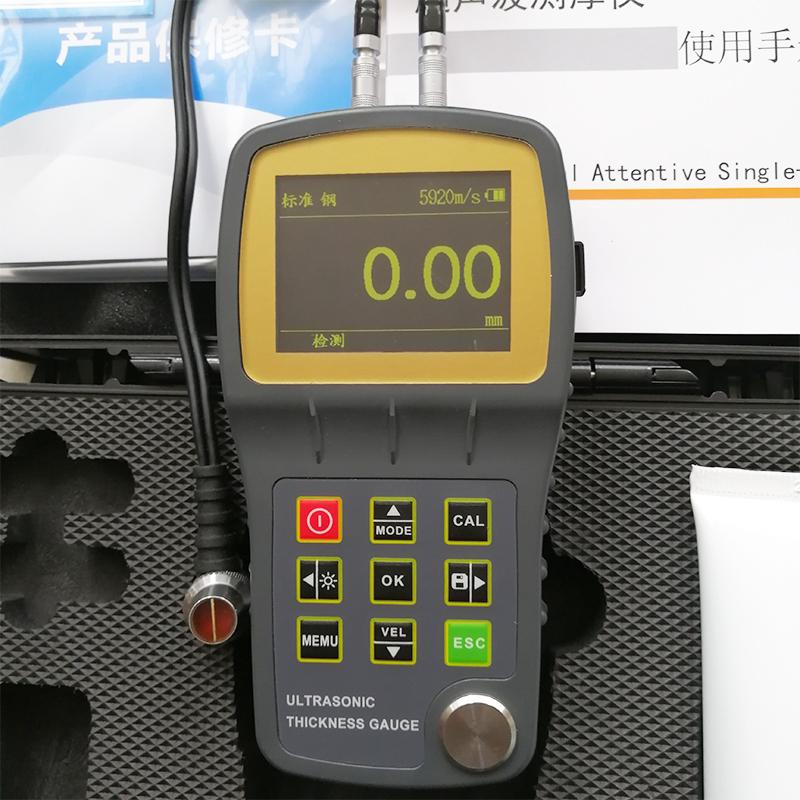

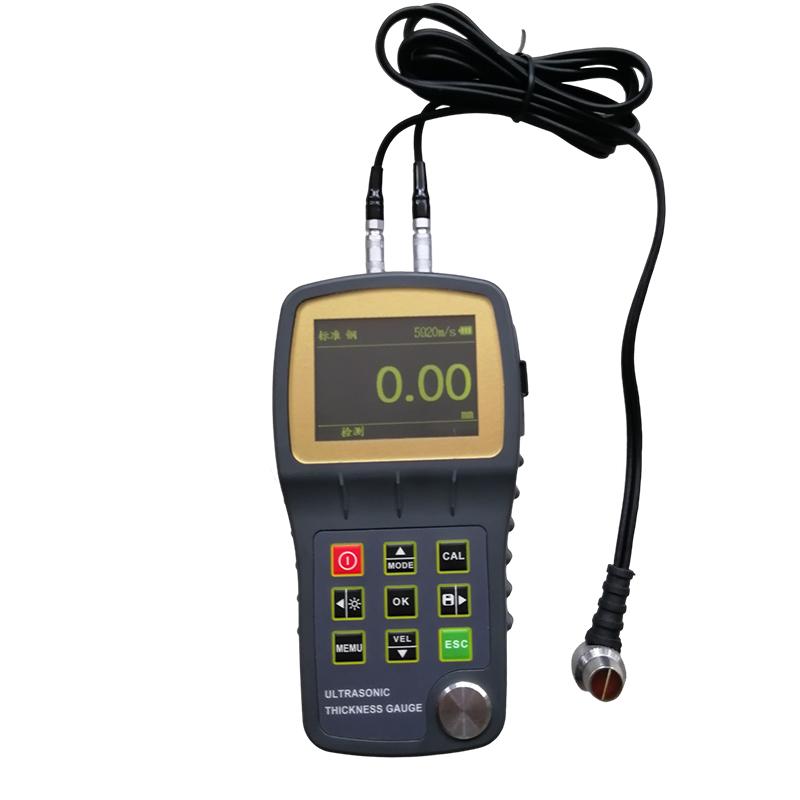

Introduction
NDT350 Penetrating Ultrasonic Thickness Gauge adopts 2.4-inch (320*240) true-color LCD display, has TF card and usb interface, has the function of penetrating paint film and coating, and can measure metal, plastic, ceramic, Detailed measurement of glass material processing parts, and monitoring of various pipelines and pressure vessels in production equipment, and monitoring their thinning degree after being corroded during use. Widely used in petroleum, chemical industry, metallurgy, shipbuilding, aviation, aerospace and other fields.
Features
Probe zero point automatic calibration;
A variety of practical measurement modes: standard measurement mode, high peak measurement mode, minimum measurement mode, difference measurement mode, average measurement mode, high temperature measurement mode (with high temperature probe);
User-friendly data storage mode: data can be saved in groups, and the amount of data saved in each group can be selected, without the need to save each measurement data, simplifying the operation;
Full Chinese menu, easy to operate, easy to learn;
Large-capacity data storage: unlimited storage quantity;
Suitable for measuring coarse-grained materials such as gray cast iron (need to purchase a special coarse-grained probe)
Suitable for measuring high-temperature materials, the peak value can reach 300 degrees or 500 degrees (need to purchase a special high-temperature probe separately)
