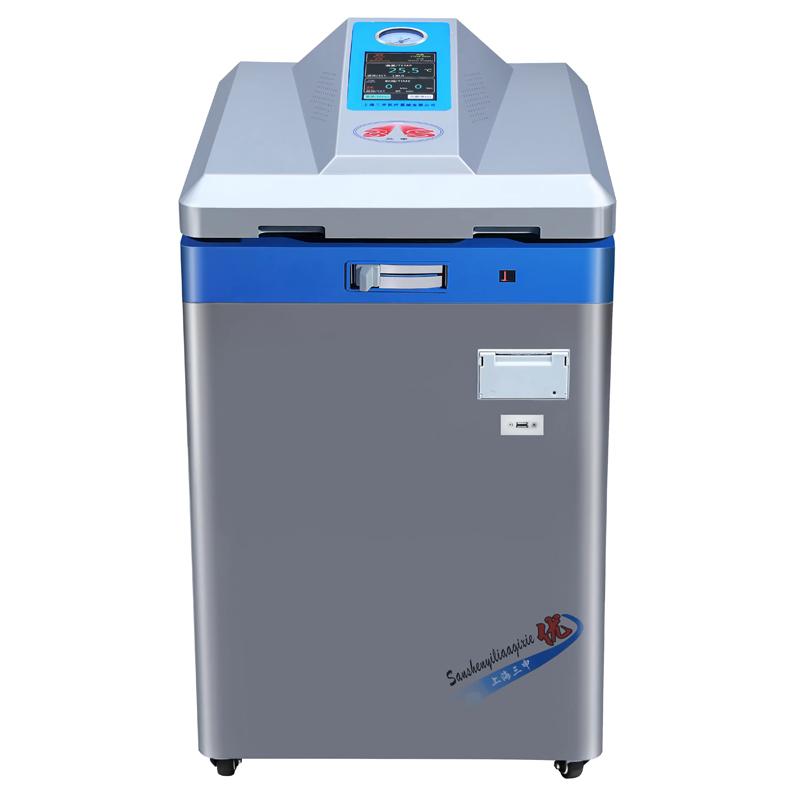

SANSHEN YMMD125L Vertical Pulsating Vacuum Pressure Steam Autoclave

YMMD125L

Vertical Pulsating Vacuum Pressure Steam Autoclave

It is made of SUS304 stainless steel, with a volume of 125L, with 3 net baskets of φ 39x22cm, with external heating protection device, and standard printer.

Introduction

The vertical pulsating vacuum pressure steam sterilizer uses saturated steam to sterilize required items through high temperature and high pressure. It is widely used in sterilization and sterilization in hospitals, hospitals, environmental protection, university scientific research, food chemical industry and other units.

Features

• Made of SUS304 stainless steel, the pressure vessel has a wall thickness of 2.5mm, a large-diameter vertical structure, and a radial self-expanding silicone sealing ring.

• The 12-post latch of the lever has a synchronous retractable one-time switch structure. When the cover is opened, it automatically pops up vertically. The upper cover is protected by heat insulation and anti-scalding.

• It adopts electronic, mechanical, pressure, and temperature cooling multiple safety interlock protection devices and a closed lid inspection system. The device cannot be started until the door is closed. It will only unlock when it drops to the set safe temperature and pressure, and there will be an opening and closing operation prompt sound. .

• There is a full-color 7-inch LCD display on the top, with Chinese and English options available, and touch operation to select the sterilization program and parameters.

• Dynamic digital display of pressure, temperature, time and alarm information, dynamic curve display of the entire operation process, entering the status interface to check the current operating program, graphic display of the fully automatic sterilization process.

• Three-level independent passwords and fingerprint recognition are used to control entry operations.

• Built-in independent Water Tank and electric evaporator for easy cleaning of the sterilization room. Water shortage alarm automatically cuts off the heating power.

• Built-in steam condensation system, internal steam circulation, closed pipeline without waste gas and waste water discharge, meeting the sterilization needs of biological safety.

• Equipped with a high-precision gas filtering device, it can effectively filter out particles with a diameter greater than 0.22um.

• It is equipped with a wastewater sampling port to facilitate timely treatment of wastewater as required.

• The sterilization chamber is equipped with an external heating and insulation device, and the computer program can automatically adjust and control the heating temperature and time.

• It is equipped with an oil-free Vacuum Pump that can reach a vacuum degree below -0.09MPa, and has pulsating vacuum and heated film dual drying functions.

• It adopts low center of gravity, high-load adjustable casters, and can turn and shift in 360C.

• Design pressure is 0.38MPa (temperature 150C), sterilization temperature range is 105~136C, sterilization time is 0-65000min, pressure gauge range: -0.1~0.3MPa, dual safety valves automatically discharge steam when the pressure exceeds 0.24MPa .

• Microcomputer fully automatic control, preset six one-click fixed sterilization programs for instruments, packages, solutions, rubber, medical waste and culture media, and three auxiliary programs of preheating, insulation and dissolution. The preset program parameters can be adjusted as needed Modified, with custom programs available to meet a variety of sterilization needs.

• There are two procedures: DB test and vacuum test, which are used to test the vacuum leakage rate, exhaust capacity and steam penetration rate of the equipment.

• The scheduled start and preheating function can automatically run according to the scheduled time, and the scheduled time can be set from 0 to 9999 minutes.

• For non-liquid programs, the preheating, pulsation, temperature rise, sterilization, exhaust, and drying processes are fully automatically controlled. For liquid programs, the preheating, temperature rise, sterilization, and exhaust processes are fully automatically controlled .

• The standard printer can print sterilization temperature, time, pressure, FO value and other sterilization data in real time. There is also a USB interface, which can copy the sterilization data automatically recorded by the system to a USB flash drive and save it.

• Equipped with Pt100 temperature sensor and TT/PT test interface for verifying multi-point temperature and pressure.

• It has the function of viewing the current time, number of outages, fault occurrence time and code, and has plateau pressure, inner chamber pressure, and inner chamber temperature compensation functions.

• The pulsating cold air is automatically discharged, and the steam is automatically fully discharged, micro-discharged, non-discharged or manually discharged after sterilization.

• Dual-fan heat dissipation cooling system, air return valve prevents negative pressure.

• Background safety test program, automatic fault detection system, over-temperature, over-pressure, leakage, over-current, short circuit, low water level and various faults, beeping sound and light alarms, LCD screen displays alarm code and alarm information, and the sterilization process automatically stops.

• It has a power-off memory storage function, audible and visual prompts when sterilization is completed and a text display of "Open the door", and has a quick maintenance window.

•


Packing list：machine X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
