Brand：INESA
Model：SGW-635

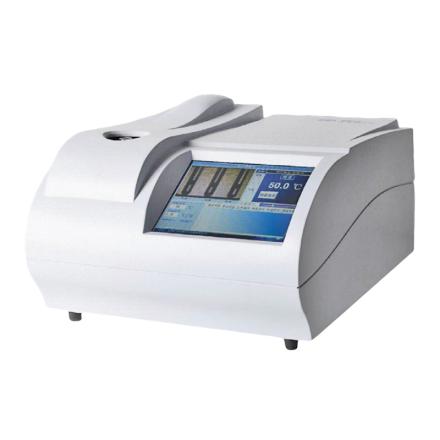

Name：Automatic image oil melting point (slip point) instrument
Specifications
| Temperature range | 15~100℃ |
| Measuring method | Automatic, visual (playback monitoring) |
| Experimental method storage Capacity | 300 kinds |
| Electronic signature | Yes. |
| data traceability | Yes. |
| Temperature Resolution | 0.1℃ |
| Heating rate | 0.1 ℃/min--15 ℃/min available |
| Error of indication | Environmental temperature is 23 ℃ +/- 5 ℃: +/- 0.4 ℃ |
| Repeatability | ±5％ |
| linear Heating rate error | Not more than 10% of the set value. |
| processing power | 3 |
| Capillary tubing size | Outer diameter: φ 1.4mm Inner diameter: φ 1.0mm, length: 90mm Water jacket Outer diameter: φ 3.8 Inner diameter: φ 2.1, length 800mm |
| Sample height | Slip point sample: 10 mm +/- 2 mm melting point sample: 3 mm |
| Operating system | Windows (can be connected to a LIMS system) |
| Data storage | 16G |
| Display mode | 8-Inch LCD touch screen |
| Calibration method | 8 point calibrated |
| Interface | USB/keyboard/mouse/universal printer/VGA/Ethernet network interface card/optional wireless network interface card |
| Power Supply | 220V±22V，100W，50Hz |
| Dimensions | 390*320*240mm |
| Net Weight | 13kg |
Packing list
machine X1, manual X1, certificate X1, warranty card X1
After-sales instructions
Warranty days: 365 days
