INESA SGW-806 light transmitance Haze Meter, vertical and horizontal

SE
With A Light source, C Light source, D65 Light source three Light source, range 0~100%, light transmitance error within +/- 1%, haze error within +/- 5%, large LCD touch screen, with USB interface.
$1936.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con CAT

INESA SGW-806 Light transmitance/haze meter (standing and lying)SPEC

INESA SGW-806 Light transmitance/haze meter (standing and lying)Details

INESA SGW-806 Light transmitance/haze meter (standing and lying)Packing list

SKU
NB042613
Light source (LED Light source)
A Light source (2856K); C Light source (6774K); D65 Light source (6500K)
Measurement range
Light transmitter: 0% -100.00%; Haze: 0% -100.00%
Minimum indication
Light transmitance 0.01%, haze 0.01%
An indication of light transmitance error
+/- within 1% (standard neutral gray sheet)
Haze indication relative error
+/- 5% or less
Repeatability
Light transmitter Repeatability: ≤ 0.1%; Haze Repeatability: ≤ 0.1
Sample window size
Entry window Should 25mm; Exit window Should 21mm
Display mode
Large screen LCD touch screen
Communication interface
USB interface, U disk storage function
Power Supply
220V±22V，50Hz±1Hz
Instrument size
540mm*270mm*300mm
Net Weight of instrument
13kg
SGW-806
Light transmitance/haze meter (standing and lying)
With A Light source, C Light source, D65 Light source three Light source, range 0~100%, light transmitance error within +/- 1%, haze error within +/- 5%, large LCD touch screen, with USB interface.

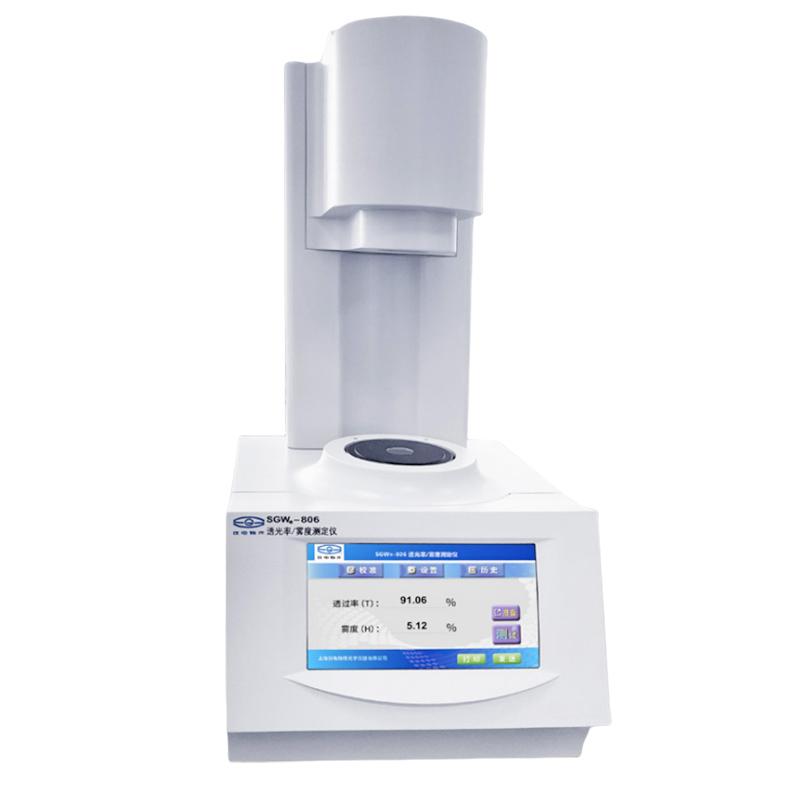

INESA SGW-806 light transmitance Haze Meter, vertical and horizontal Picture

Introduction

• SGW-806® transmittance/haze Tester is based on the People's Republic of CHINA Home standard GB2410-2008 "Test Method for Light Transmittance and Haze of Transparent Plastics" and ASTM D1003-61 (2007) Standard Test Method for Haze and Luminous Transmittance of Transparent Plastic" is a fully automatic measuring instrument designed by the computer, which is suitable for the light transmittance and transmission haze test of all transparent and translucent parallel planar samplers (plastic plates, sheets, plastic films, flat glass).

• Used in national defense, scientific research, industrial production, plastic industry, automotive glass, mobile phone glass, acrylic, film industry, packaging industry and other fields.

• Industry application standards: HG/T 5065-2016 overprint varnish for architectural coatings, GB 14866-2006 technical requirements for personal eye protection, GB/T 2410-2008 Determination of light transmittance and haze of transparent plastics, etc.

Features

Optical system:Parallel illumination, hemispherical scattering, integrating sphere photoelectric reception are adopted

Attractive appearance:Ergonomic, with two observation modes: standing and lying down

Three light sources:A light source, C light source, D65 light source

Smart Automatic:It adopts microcomputer automatic operating system and data processing system, no knob operation, easy to use

Easy export:Standard USB port, USB flash drive storage function

Accurate data:Transmittance results are displayed directly to 0.01% and haze to 0.01%

Working Light Source:LED light, long service life, quick detection when turned on


FAQ
QI want to measure the light transmitance and haze of the mobile phone Glass, which instrument should I choose?
A SGW-806 light transmitance/haze tester meets the test standards of mobile phone Glass, can accurately measure light transmitance and haze to 0.01%, and the vertical-use design is convenient for you to operate flexibly to ensure accurate and reliable data.
