Specifications
| Coating speed | 5~ 180Mm/s (< 5mm/s can be customized) |
| Coating size | 350*400mm |
| Spreader speed | Digital display, different speeds |
| Vacuum aperture | Φ1.2mm |
| Vacuum hole spacing | 20*20mm |
| Speed control | Infinitely variable speed |
| Bottom plate material | aluminum alloy |
| Heating temperature range | RT+~200℃ |
| Temperature Uniformity | ±3℃ |
| Customizable functions | Automatic Inking System |
| Feeding principle | Air source pressure flows out |
| Feeding motion mode | Reciprocating linear motion |
| Feeding traverse speed | 2-150mm/s |
| spit Volume | Adjustable (by adjusting the air pressure and the running speed of the discharge port) |
| Shaft drive mode | Timer belt |
| Feeding system air source | 0.6Mpa, can be connected to the trachea of φ8 (self-matching) |
| Power Voltage of charging system | 220V,50Hz |
| Tank pressure | Maximum withstand 8Mpa |
| Material of feeding barrel | 304 stainless steel with wall thickness of 4mm |
| Feeding barrel configuration | Safety valve, pressure regulating valve, pressure gauge, air discharge valve |
| Optional | Leakage tank, substrate fixing fixture, trimming horizontal height support foot device, Glass plate, Silicone pad and Weight (for applications with uneven substrate thickness of Spreader), application width control baffle |
| Dimensions | 650*500*550mm |
| Dosing drum Volume | 1L |
| Nozzle atomization effect | Equipped according to customer needs |
| Coating method | Left and right reciprocating lame plating |
Packing list

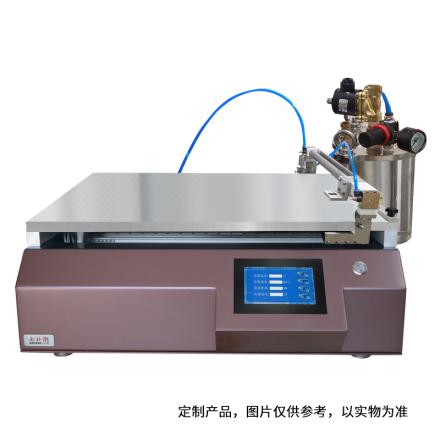

Heating Vacuum chuck Film Applicator X1, External Vacuum Pump X1, Automatic Inking System x1, Product Manual X1
After-sales instructions
Warranty days: 365 days
