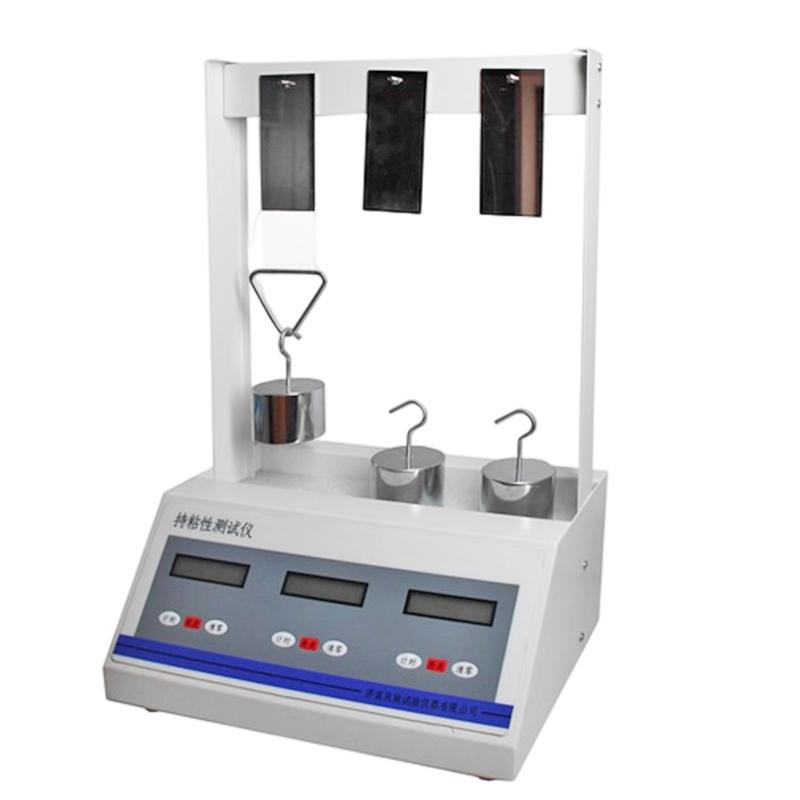

CHENCHI CNY-3A Three-Station Lasting Adhesive Tester Standard Pressure Roller 2000g +/- 50g

CNY-3A

Lasting Adhesive Tester

In line with the standard GB/T4851, it is suitable for tack testing of various adhesive products. It can test three stations at the same time, and has functions such as automatic timing and locking.

Introduction

This product is in accordance with the national standard GB/T4851-2014Test Method for Adhesion of Pressure-Sensitive TapesIt is suitable for the adhesion test of various adhesive products, such as pressure-sensitive tapes, medical patches, self-adhesive labels, protective films, etc.

How it works

The test plate with the specimen is hung vertically on the test frame, and the weight of the specified weight is hung at the lower end, and the displacement of the specimen sticking off after a certain period of time, or the time when the specimen is completely detached is used to characterize the ability of the adhesive tape to resist pulling.

Features

• Using single-chip microcomputer timing, the timing is more accurate and the error is smaller;

• Long-term timing, up to 99h59min59s;

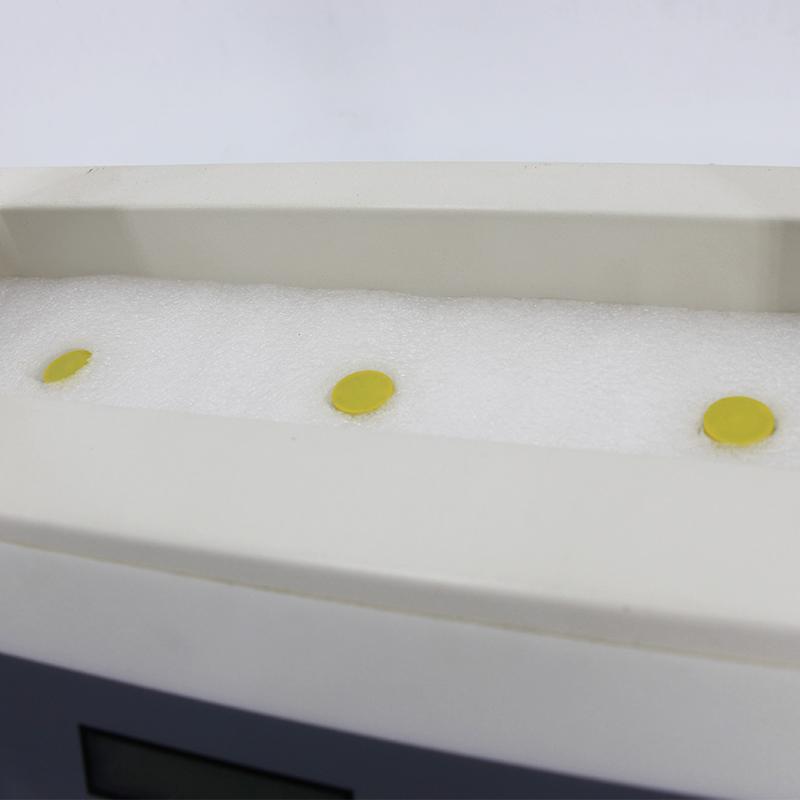

• Good proximity switch, wear-resistant and anti-smashing, high sensitivity, longer service life;

• The test board and test weights are designed in strict accordance with the standard, and the test board is laser cutting process, with neat and smooth edges, no burrs and no curling edges, which ensures the accuracy of the detection data;

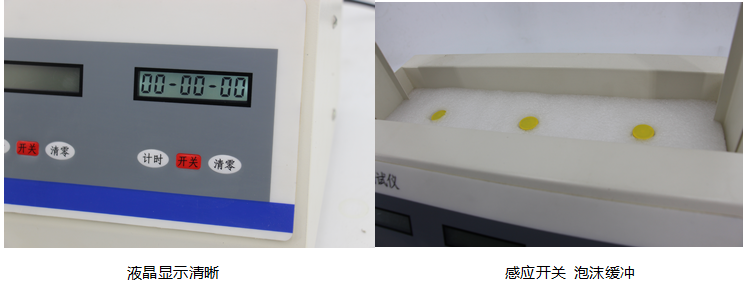

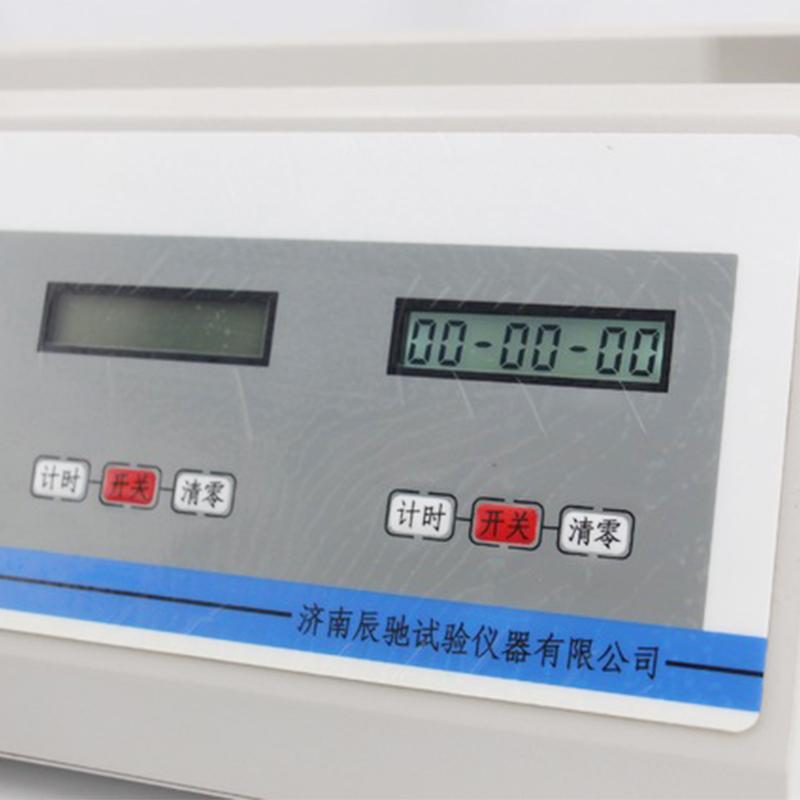

• The system is controlled by a microcomputer, with a PVC operation panel, a membrane button and an LCD screen, which is convenient for users to quickly carry out test operations and data viewing.

• Three test stations can carry out multiple sets of test items at the same time;

• Automatic timing, locking and other functions further ensure the high accuracy of test results;

• The new LCD display delay off function is added to prevent data loss caused by misoperation or sudden power failure of the external power supply.

Product Details:

Packing list：complete-built unit X1, manual X1, certificate of conformity X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
