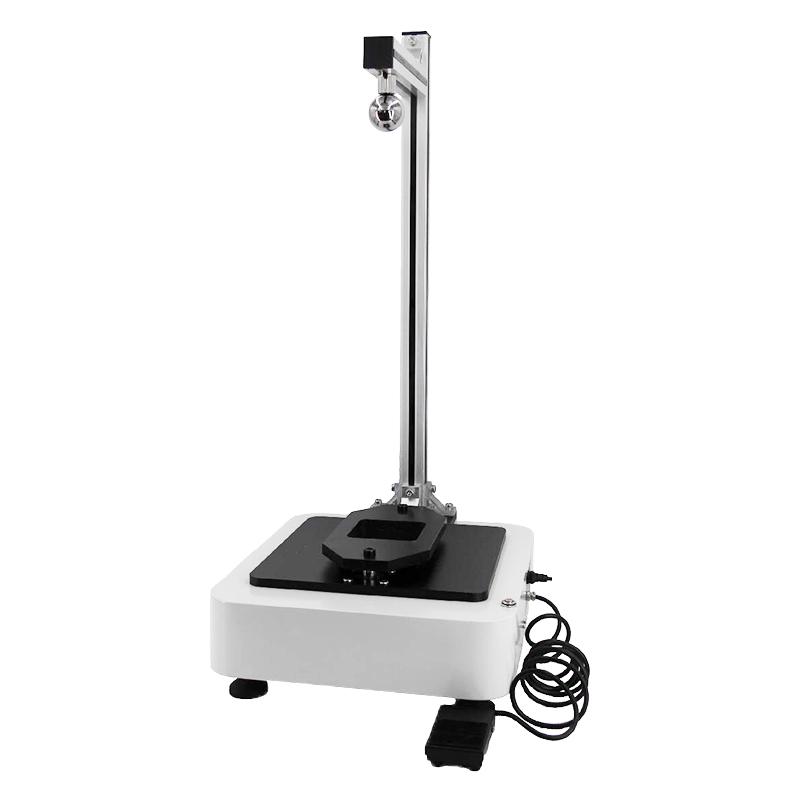

CHENCHI MLQ-02 hard sheet falling ball impact test instrument 0-2mm

MLQ-02

Falling ball impact test instrument

Film thickness is less than 2mm plastic sheet, the test height of 300mm~ 600mm, different ball height adjustable, foot switch start mode, steel ball electromagnetic suction hanging, automatic release.

Introduction

Hard sheet falling ball impact testing machine is suitable for judging the damage of plastic sheets with a thickness of less than 2mm under the impact of a steel ball at a given height. Widely used in quality inspection institutions, pharmaceutical companies and packaging manufacturers.

Features

• A variety of impact steel balls are available to meet the requirements of different standards

• The height of different falling balls can be adjusted to meet the requirements of different samples

• The sample is clamped and released pneumatically, and the test operation is performed more quickly and accurately

• The steel ball is electromagnetically sucked and released automatically, avoiding system errors caused by human factors

• Foot switch start mode, humanized operation

• The protective device makes the test process safer

• Central positioning device, reliable test results

Test Principle

Cut a sample of a certain size, hold the sample on the chuck, select a suitable steel ball and install it on the electromagnetic device, release the steel ball, let the steel ball fall freely on the central part of the sample, and observe the damage of the sample. Calculate the breakage rate after multiple tests.

test application

Basic application: PVC hard sheet - used for judging the damage of polyvinyl chloride plastic sheet with a thickness less than 2mm under the impact of a steel ball at a height required by the standard.

Extended application: anti-theft bottle caps - used for anti-theft bottle caps falling ball impact test.

According to the standard

YBB00212005-2015, YBB00232005-2015, YBB00222005-2015, YBB00182004-2015, YBB00202005-2015, YBB00242002-2015

Packing list：complete-built unit X1, manual X1, certificate of conformity X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
