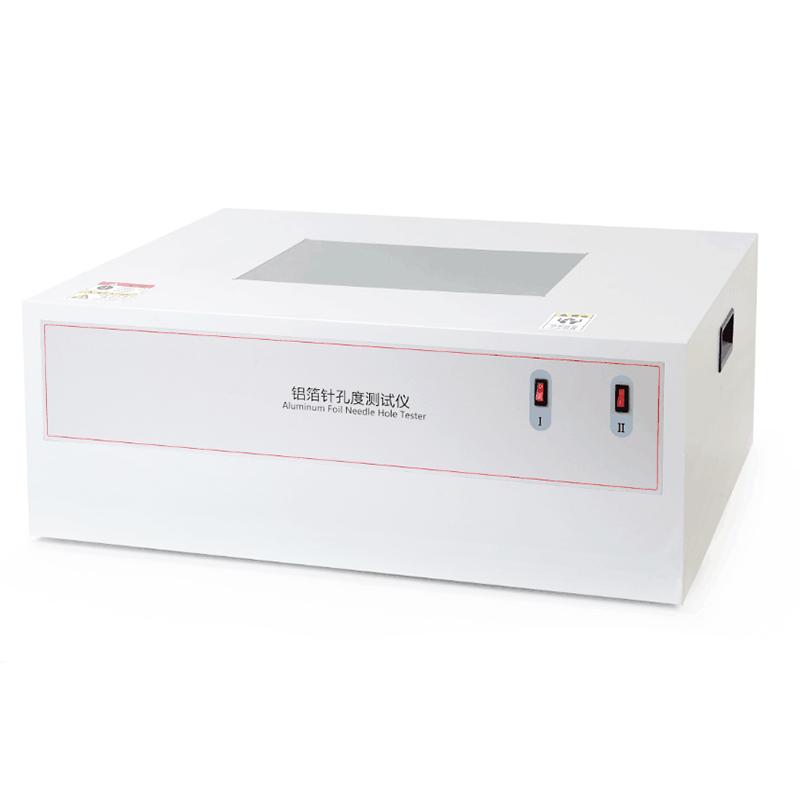

CHENCHI MZK-01 Aluminum foil pinholing degree Detector
SEIn line with YBB00152002 standard, observation size 400 × 250mm, transmission Illumrination degree 1000Lux, 100X high definition magnification, using high light transmitance Glass liner.
$767.00/set
PromotionLoading...
Coupon
Model：
MZK-01
Similar products
labchen MZK-01 Aluminum foil pinholing degree DetectorSPEC
labchen MZK-01 Aluminum foil pinholing degree DetectorDetails
labchen MZK-01 Aluminum foil pinholing degree DetectorPacking list
- SKU
- NB042668
- Observation size
- 400×250mm
- Illumrination degree
- 1000Lux
- Application environment Illumrination degree
- 20Lux-50Lux

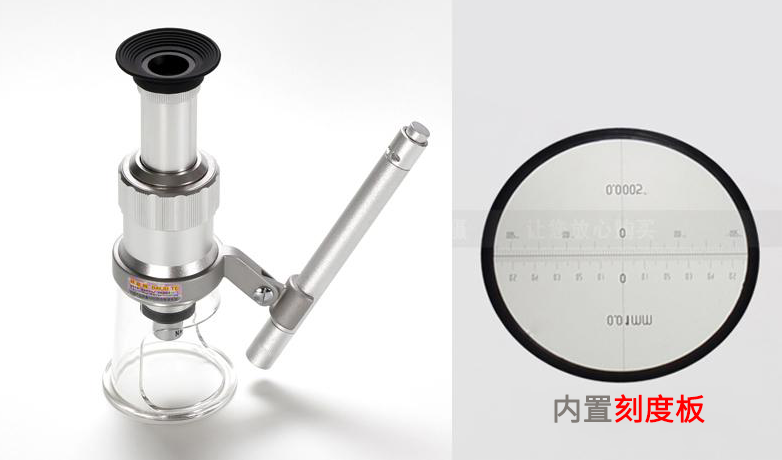

- Reading Microscope Magnification
- 100X high definition amplification,
- Scale
- Minimum 0.02mm, maximum 1.6mm
- Dimensions
- 800 × 600 × 300mm (length, width and height)
- Weight
- 20Kg
- standard
- YBB00152002-2015 Medicinal aluminum foil, etc
- Power
- 15W, 30W, 45W three gears optional
MZK-01
Aluminum foil pinholing degree Detector
In line with YBB00152002 standard, observation size 400 × 250mm, transmission Illumrination degree 1000Lux, 100X high definition magnification, using high light transmitance Glass liner.
Introduction
Aluminum foil pinhole Tester MZK-01 is equipped with a high transmittance glass lining, which meets the testing requirements for pinholes in YBB00152002-2015 medicinal aluminum foil. There are three options: 15W, 30W, and 45W.
Test Principle
Under the specified environment and the light source of the light box, the number of pinholes is observed and the size of the pinholes is measured through the medical aluminum foil pinhole inspection table by using the light transmittance of the pinholes of the aluminum foil.
Product Standards
YBB00152002-2015 Pharmaceutical aluminum foil, etc.
