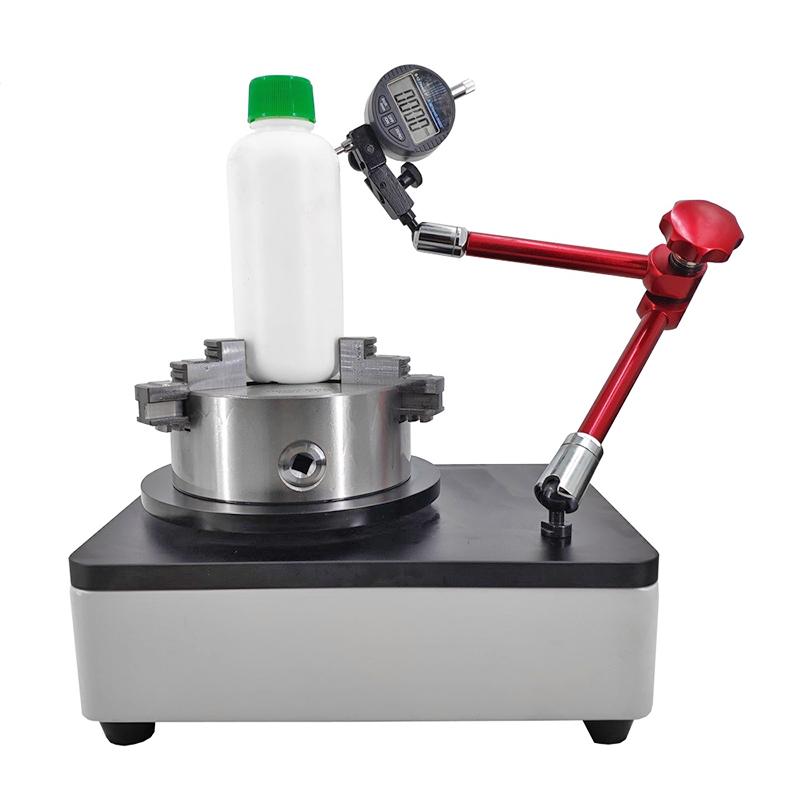

CHENCHI CZD-100 vertical deviation instrument, range 0-12.7mm

CZD-100

Verticality deviatIon Meter

Clamping diameter positive claw 3-55mm, reverse claw 55-145mm, measurement range 0-12.7mm, universal bracket positioning, suitable for ampoules, mineral water bottles, beer bottles and other products.

Introduction

The verticality deviation Tester is suitable for the verticality deviation test of various round bottle packages such as ampoules, mineral water bottles, and beer bottles. This product conforms to the national standard, simple structure, wide application range, convenient and durable, high precision. It is a professional testing instrument for pharmaceutical, pharmaceutical packaging, food, daily chemical and other enterprises and drug inspection institutions.

Test Principle

Fix the bottom of the bottle on the rotating disk of the horizontal plate, make the bottle mouth contact with the dial indicator, rotate 360° to read the maximum and minimum values, and 1/2 of the difference between the two is the vertical axis deviation value. The instrument utilizes the characteristics of high concentricity of the three/four-jaw self-centering chuck, and cooperates with a set of high-degree-of-freedom brackets that can freely adjust the height and orientation, which can meet the inspection of various glass bottles and plastic bottles.

Packing list：complete-built unit X1, manual X1, certificate of conformity X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
