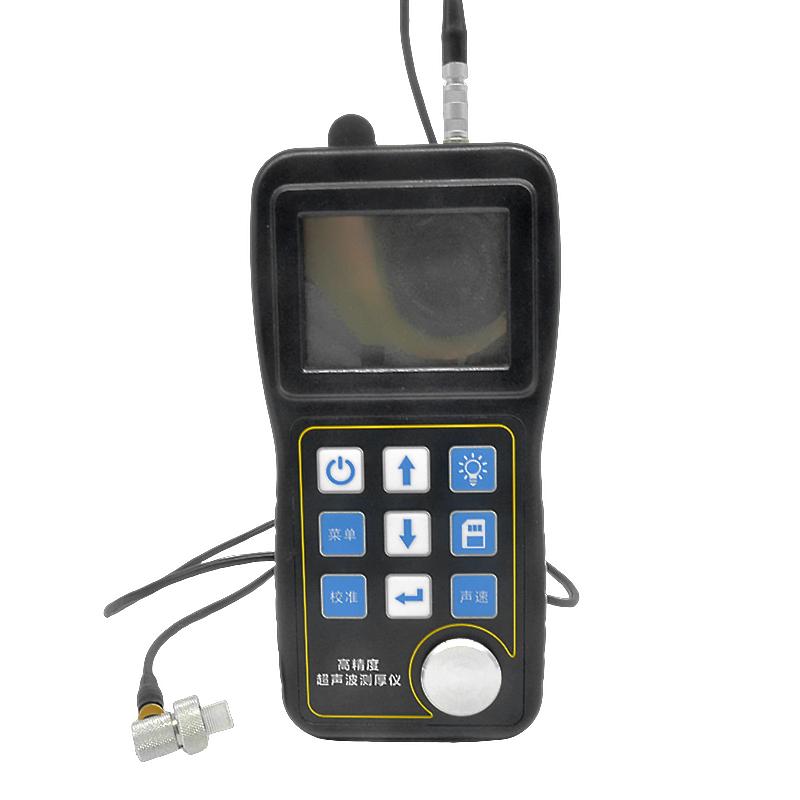

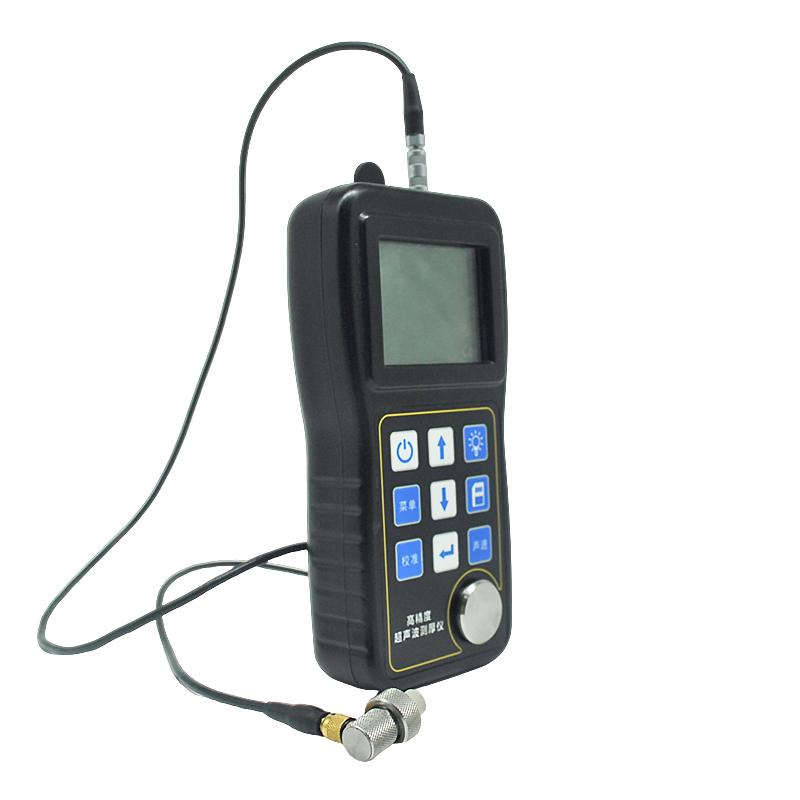

KAIRDA NDT361 Penetrable coating Thickness Gauge 0.15-20 mm

NDT361 (0.15-20 mm steel)

Ultra-thin part Thickness Gauge

Speed of sound and single point Adjustment, support I-E, E-E mode, minimum thickness up to 0.15mm, LED backlight display, 500 Data storage functions.

Applications

This ultrasonic Thickness Gauge can accurately measure various plates and various processed parts. It can be widely used in various fields such as petroleum, chemical industry, metallurgy, shipbuilding, aviation, aerospace, and special inspection institutes.

Features

1. Using "clutter flying technology", on the one hand, it can realize the measurement of ultra-thin parts, and the minimum thickness (steel) can reach 0.15mm; on the other hand, it can realize high-precision thickness measurement, and the highest resolution can reach 0.001mm; Extremely high measurement precision and indexing accuracy.

2. Two measurement modes I-E mode and E-E mode are optional;

  IE: Bottom wave-echo mode meets conventional thick workpiece measurement; EE: Echo-echo mode meets thin workpiece measurement with high precision

3. It can measure through the surface coating;

4. Put the probe on the test block of the Thickness Gauge and press the button to automatically adjust to zero;

5. With LED backlight display, it is convenient to use in dimly lit environments;

6. It has the function of sound velocity calibration (reverse measurement of sound velocity) or single point calibration;

7. It is possible to set the alarm setting and difference mode;

  1) The thickness range can be set, and it will automatically alarm when it exceeds the upper and lower lines.

  2) Difference mode: input the known workpiece thickness value and display the actual workpiece thickness difference

8. Metric and imperial conversion: mm and inch can be switched units

9. Divide 5 arrays, which can store 500 thickness values for storage, viewing and deletion;

10. Can store the sound velocity of 5 different materials

11. Imported 15MHz single crystal delay probe is used, which is suitable for measuring flat thin plates

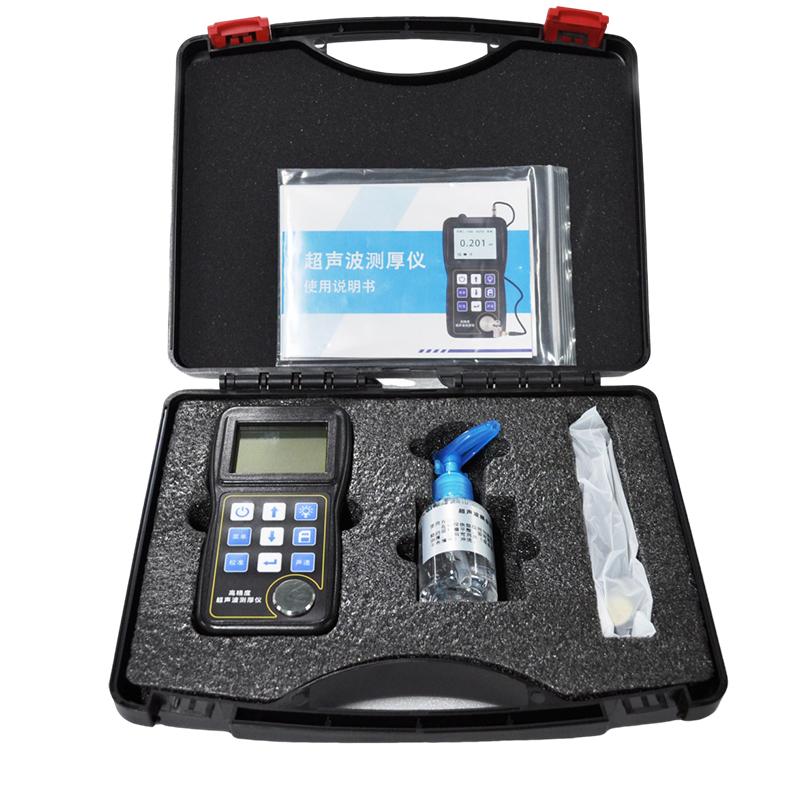

Packing list：host × 1, coupling agent × 1, manual × 1, certificate × 1, 15M single crystal probe × 1, alkaline battery 1.5V × 2, packing list × 1, warranty card × 1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
