CHENCHI NLY-20 Bottle Cap Torque Meter, Range 0-20Nm

SE
The dual mode of locking force and opening force can continuously collect data, automatically clear, intelligent fault prompt, level 1 measurement accuracy, clamping range Φ25mm~ Φ170mm, LCD display.
$767.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con CAT

labchen NLY-20 Bottle cap torsIon MeterSPEC

labchen NLY-20 Bottle cap torsIon MeterDetails

labchen NLY-20 Bottle cap torsIon MeterPacking list

SKU
NB042672
Power
5V rechargeable battery Power , AC220V 50HZ power adapter
range
0-20Nm
System resolution
0.001N.m
Clamping range
F25mm ~ F170mm
statistical quantity
1 to 99 pieces
Display
LCD display
test conditions
Standard laboratory environment
Instrument size
330*200*200mm
Net Weight
About 15KG
Standard
GB/T 17876,ASTM   D 2063, ASTM D 3198, ASTM D 3474 etc.
NLY-20
Bottle cap torsIon Meter
The dual mode of locking force and opening force can continuously collect data, automatically clear, intelligent fault prompt, level 1 measurement accuracy, clamping range Φ25mm~ Φ170mm, LCD display.

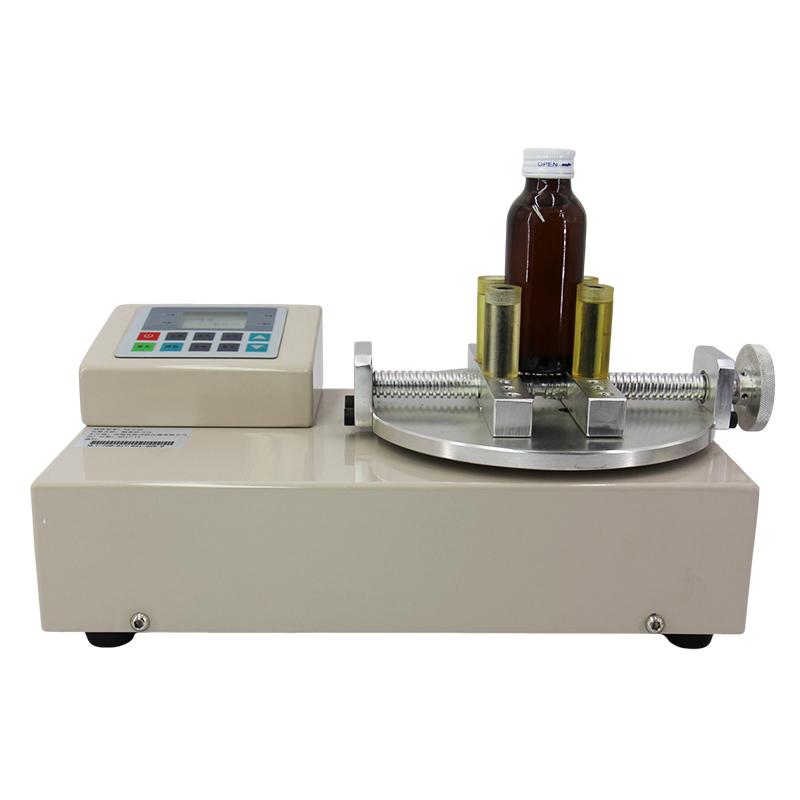

CHENCHI NLY-20 Bottle Cap Torque Meter, Range 0-20Nm Picture

Introduction

The bottle cap Torque Tester is an intelligent measuring instrument designed and developed for testing various torques. It is specially used to detect the torque of opening or tightening bottle caps. It can also measure car mirrors, door and window wrenches, and contact lens caps through special fixtures. and other product torque.

Features

  • Microcomputer control, LCD liquid crystal display

  • The test data is collected continuously, and the peak value is automatically maintained

  • Dual mode design of locking force and opening force

  • Standard unit of test results, no need for manual conversion

  • Test times can be set, data deletion, statistics function

  • Test parameter power-off memory

  • Automatic reset, intelligent fault prompt, overload protection

  • Small size, convenient operation, reliable performance, fast test

  • Nm, kg.cm, lb.in mutual conversion

Product Details

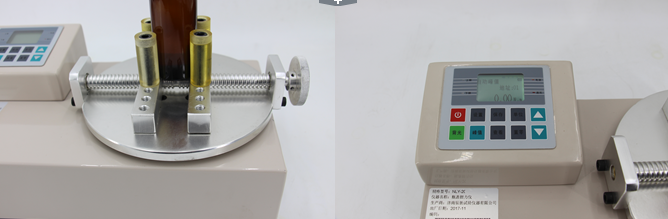

Chenchi NLY-20 Cap Torque Tester Details Figure 1


FAQ
QI want to measure the opening torque of the bottle cap. Is there any suitable instrument recommended?
A Recommended CHENCHI NLY-20 caps torque meter, it is specially designed to detect the torque of caps opening or tightening. It has a dual test mode of opening force and locking force, which automatically maintains peak readings and is easy and fast to operate.
QCan this instrument measure Miscellaneous products in addition to bottle caps?
A Yes, NLY-20 can also measure the torque of automotive reflectors, door and window wrenches, invisible Glasses covers and other products through special clamps. The clamping range is from 25mm to 170mm, and the applicability is very wide.
QI want to measure the opening and locking torque of the bottle cap. Do you have any recommendations?
A NLY-20 bottle cap torsion instrument is specially designed with a dual mode of locking force and opening force, which can accurately measure the tightening and opening torque of the bottle cap. The operation is simple and the data is automatically maintained, which is suitable for the quality control of bottle cap products.
