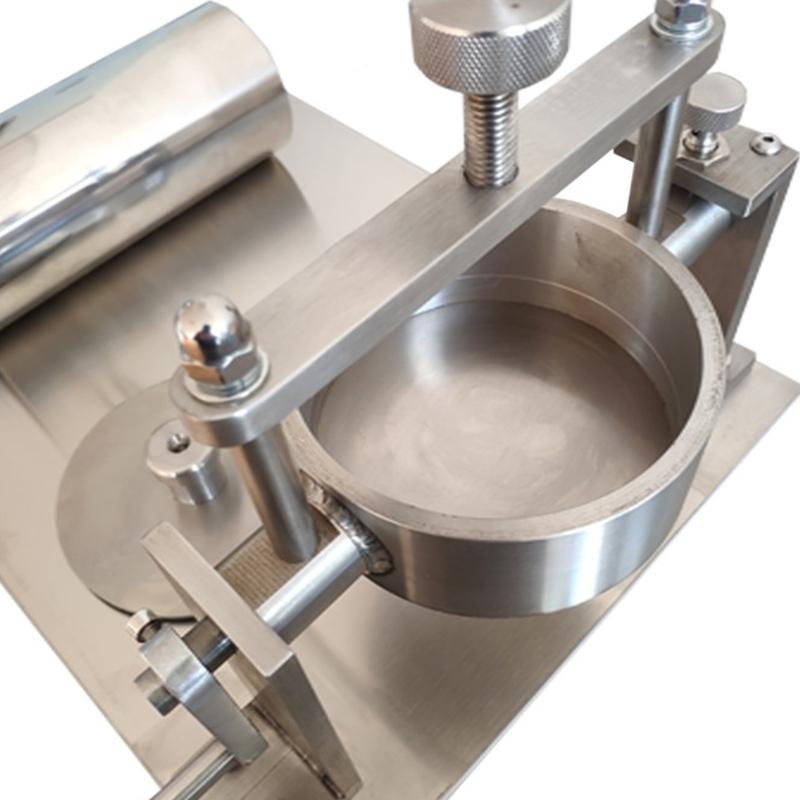

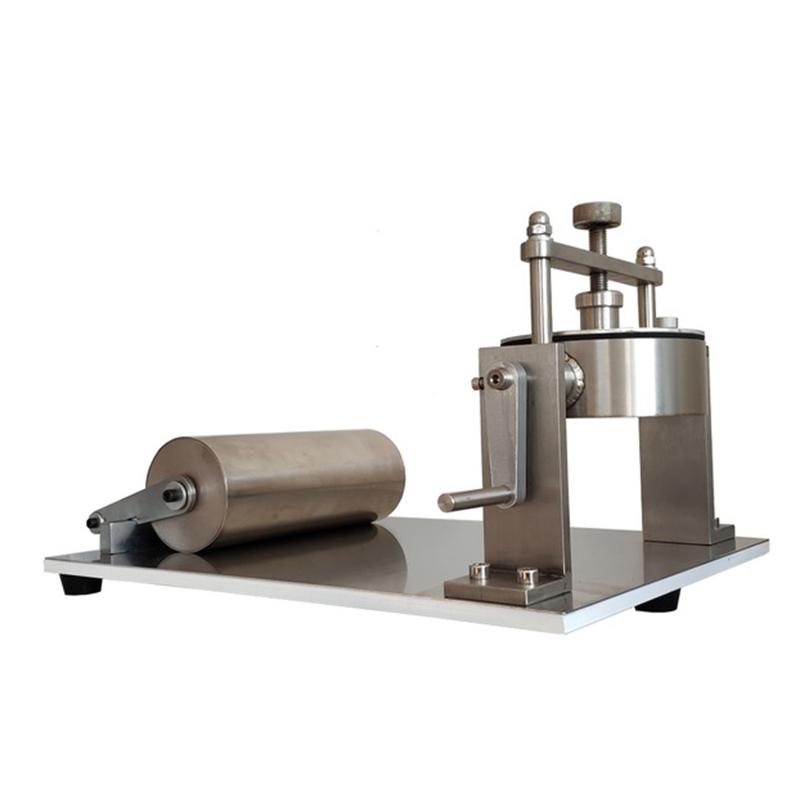

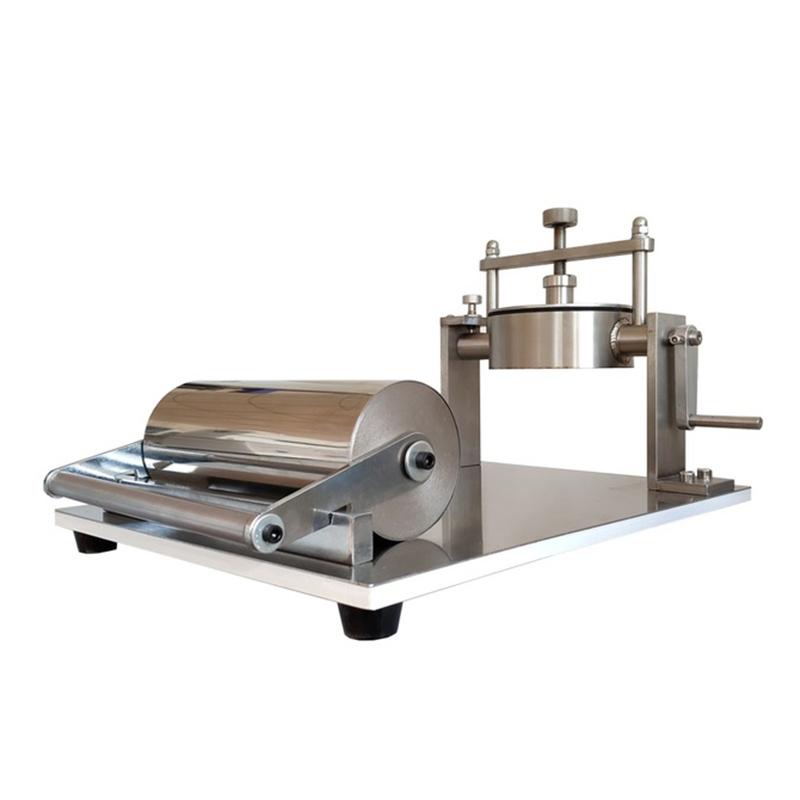

CHENCHI KBY-1 Cobb Absorption Tester
SEThe inner cross-sectional area of the metal cylinder is 100 +/- 0.2cm2, the weight of absorbent paper is 200~250g/㎡, which conforms to the GB/T1540 standard, and the test water consumption is 100mm +/- 5ml.
$630.00/set
PromotionLoading...
Coupon
Model：
KBY-1
Similar products
labchen KBY-1 Cobb absorptivity meterSPEC
labchen KBY-1 Cobb absorptivity meterDetails
labchen KBY-1 Cobb absorptivity meterPacking list
- SKU
- NB042680
- Absorbent paper quantitative
- 200～250g/㎡
- Internal cross-sectional area of metal cylinder
- 100±0.2cm²
- Corresponding inner diameter of metal cylinder
- 112.8±0.2mm
- Smooth Metal Flat Roll Length
- 200±0.5mm
- Smooth metal flat roll Mass
- 10±0.5kg
- Test water consumption
- 100mm±5ml
- Dimensions
- 480×400×420mm
- Weight
- 28kg
KBY-1
Cobb absorptivity meter
The inner cross-sectional area of the metal cylinder is 100 +/- 0.2cm2, the weight of absorbent paper is 200~250g/㎡, which conforms to the GB/T1540 standard, and the test water consumption is 100mm +/- 5ml.
Applications
It is mainly used to determine the surface water absorption of sized paper and board including corrugated board. However, it may not be suitable for paper and embossed paper with a basis weight of less than 50g/㎡, as well as loose paper (such as newsprint paper) or unsized paper (blotting paper) or other paper with relatively high water absorption.
According to the standard
GB/T1540-2002
Absorbability Definition
The amount of water absorbed by the surface of a unit area of paper and cardboard under a certain pressure and temperature within a specified time, expressed in g/㎡.
FAQ
QWhat instrument is used to measure the surface water-absorption of corrugated fibreboard?
A
The KBY-1 Cobb absorbency tester is specially used for the surface water-absorption test of adhesive paper such as corrugated fibreboard, which meets the requirements of GB/T1540 standard.
Standard
