CHENCHI NPD-2D Automatic Burst Tester 40~5600Kpa

SE
Cardboard 250-5600Kpa, paper 40-1600kpa, seven-inch color LCD display, with power failure protection test data, with integrated thermal printer, level 1 accuracy.
$1641.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con CAT
Similar products

labchen NPD-2D Automatic Burst TesterSPEC

labchen NPD-2D Automatic Burst TesterDetails

labchen NPD-2D Automatic Burst TesterPacking list

SKU
NB042682
Measurement range
Cardboard 250-5600Kpa; paper 40-1600Kpa
Clamping force between chucks
400-1200Kpa adjustable
Chuck clamping method
Pneumatic
Pressurized oil feeding speed
170±15ml/ min；95±5ml/min
Complete-built unit Accuracy
Level 1
Indication Precision
≤±0.5%
Hydraulic system sealing
At the upper limit of measurement, 1 minute pressure drop < 10% Pmax
Film convex disk pressure
When the protruding height is 10mm, the resistance range is (170~220) kPa; when the protruding height is 18mm, the resistance range is (250~350) kPa
Sample clamp ring size
Upper and lower clamp ring aperture φ31.5 +/- 0.05mm; upper 30.5 +/- 0.1mm; lower 33.1 +/- 0.1mm
Concentricity of Upper/Lower plates
≤0.25mm
Power
220V 50HZ
Power
Approx. 90W
test conditions
Temperature 10~30 ℃, Humidity not more than 85%, stable table, flat table without vibration
Net Weight
About 45kg
Standard configuration
host + micro printer + wrench + glycerin + film + power cord
Standards
ISO2759 Cardboard - Determination of Burst Resistance, GB1539 Cardboard Burst Resistance, ISO2758 Paper - Determination of Burst Resistance, GB454 Paper Burst Resistance, etc.~
NPD-2D
Automatic Burst Tester
Cardboard 250-5600Kpa, paper 40-1600kpa, seven-inch color LCD display, with power failure protection test data, with integrated thermal printer, level 1 accuracy.

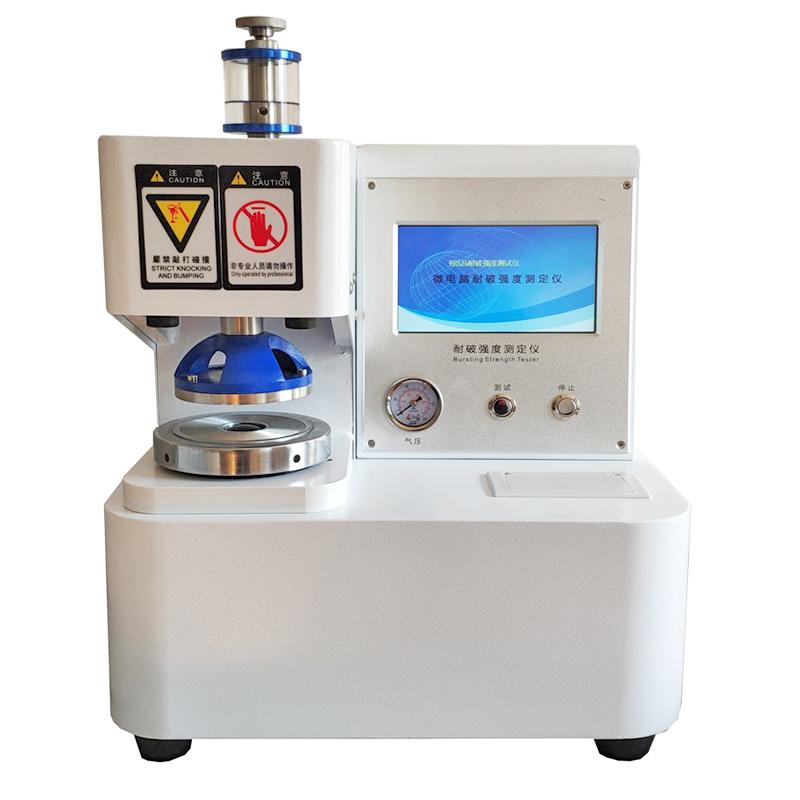

CHENCHI NPD-2D Automatic Burst Tester 40~5600Kpa Picture

Introduction

The electronic paper and cardboard Burst Tester is developed and produced according to the internationally accepted Mullen method. Its performance parameters and technical indicators meet the standards and requirements of ISO2759, GB1539, ISO2758 and GB454. It is suitable for all kinds of paper and paper. The bursting strength test of cardboard can also be used for the bursting strength test of non-paper sheet materials such as silk, cotton cloth and leather. The instrument is easy to operate, reliable in performance and excellent in technology. It is an indispensable professional equipment for scientific research units, paper manufacturers, packaging industries and quality inspection departments.

Features

  • Seven-inch color LCD display

  • Friendly menu-style man-machine interface, easy to operate

  • With power-down protection test data

  • Optional configuration Rs232 computer communication interface

  • With modular integrated thermal printer and complete and detailed test data report

FAQ
QOur factory mainly do Cardboard Encasement box, want to measure the bursting strength, there is a suitable instrument recommended?
A NPD-2D Automatic Burst Resistance Measurement range 250-5600Kpa fully covers Cardboard testing requirements, pneumatic clamping ensures that the sample does not slide, accuracy up to level 1, simple operation and thermal printer, direct report, in line with GB1539 standard.
QIs the operation of the instrument complicated? Our laboratory personnel are not very familiar with computers.
A Not complicated! NPD-2D has a seven-inch color screen and menu interface, which can be tested in a few points. It comes with a thermal printer to automatically print data, without even a computer. If needed later, you can choose an RS232 interface to export data. Daily operations are basically completed with one click, and training will take ten minutes.
QIs there a Burst Tester with Data storage and printing?
A NPD-2D built-in modular thermal printer, automatically print detailed data reports after testing, and power-down protection function to prevent data loss, optional computer interface for easy data management, Operating interface is simple and intuitive.
QWhich instruments can simultaneously test the bursting resistance of paper and non-paper sheet materials?
A CHENCHI NPD-2D fully automatic bursting resistance tester is not only suitable for all kinds of paper and Cardboard, but also can detect silk, cotton, leather and other non-paper materials. It has the functions of pneumatic clamping and adjustable clamping force to ensure the Stability and accuracy of multi-functional testing.
