CHENCHI SLD-J Tear Tester 50~16000mN

SE
Built-in thermal printer, resolution 1mN, tearing arm (104 +/- 1) mm, tearing initial angle 27.5 ° +/- 0.5 °.
$1019.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con
Similar products

labchen SLD-J Tear meterSPEC

labchen SLD-J Tear meterDetails

labchen SLD-J Tear meterPacking list

SKU
NB042683
Measurement range
（10~1000）mN
Standard pendulum
(10~1000) mN, Graduation 10 mN
error of indication
20% to 80% of the upper limit of measurement +/- 1% outside +/- 0.5% FS
Indication Repeatability Error
< 1% in the range of 20% to 80% of the upper limit of measurement, < 0.5% FS outside the range
Tear arm
104±1㎜
tearing initial angle
27.5±0.5°
tear distance
43±0.5㎜
Distance between clamps
2.8±0.3㎜
environmental conditions
Temperature 20~40 ℃, Relative Humidity ≤ 85%
Dimension
510×400×365 mm
Weight
23
SLD-J
Tear meter
Built-in thermal printer, resolution 1mN, tearing arm (104 +/- 1) mm, tearing initial angle 27.5 ° +/- 0.5 °.

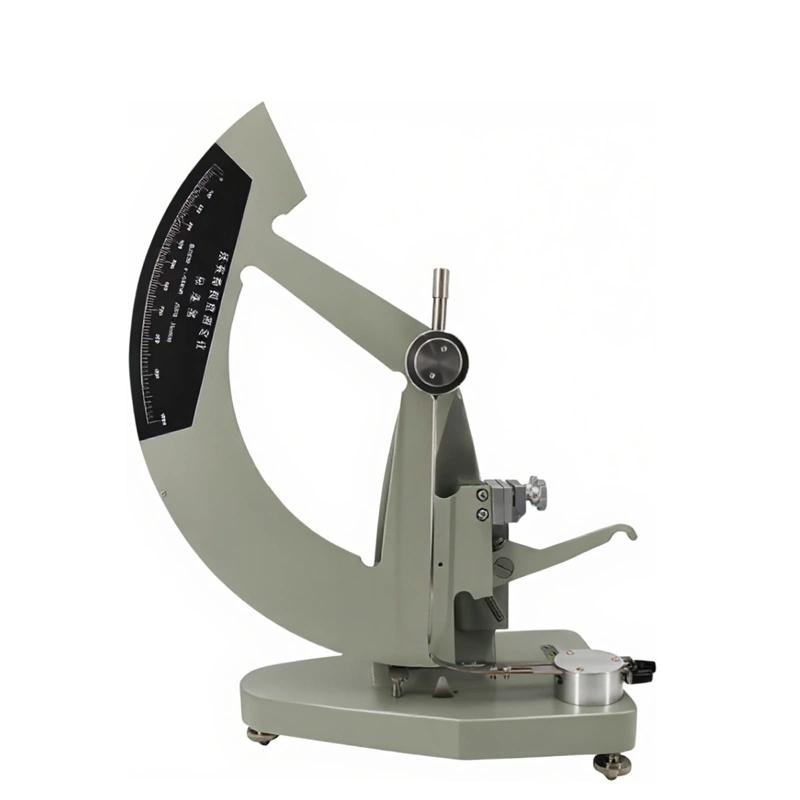

CHENCHI SLD-J Tear Tester 50~16000mN Picture

Introduction

This instrument is used to measure the internal tearing resistance or tearing degree of the paper. The Principle of the instrument is based on the work consumed by tearing the test sample to a certain length. Normally, 16 sheets of paper are stacked on top of each other. together with the tear test. Therefore, the total work expended in tearing these sheets is divided by the number of sheets torn and the tear distance, and the quotient is the force, expressed in grams, required to tear a sheet. The calculation of the instrument results is based on the condition that 16 samples are torn, and the tearing distance is 86 mm (the tearing length of the sample is 43 mm, and the tearing distance is twice as long) . The instrument is easy to operate, reliable in performance, excellent in technology, digital display of test data, and test report printed by a printer. It is an indispensable professional equipment for scientific research units, paper manufacturers, packaging industry, and quality inspection departments.

FAQ
QI want to measure the Tear strength of paper, which instrument should I use?
A The SLD-J tearing meter is specially used to measure the internal tearing Impedance of paper, calculate the tearing force by simulating the tearing process, and the results are directly displayed in grams. The operation is simple, and the data can be printed. It is very suitable for daily use in paper mills and Quality control departments.
QEncasement factory needs to test the tearing performance of cartons, what equipment is suitable?
A The SLD-J tearing meter is very suitable. It uses 16 sheets of paper to overlap the test to simulate the actual Encasement force. Measurement range is 10-1000mN, which can accurately reflect the tearing resistance of the carton material and help you control the Encasement mass.
