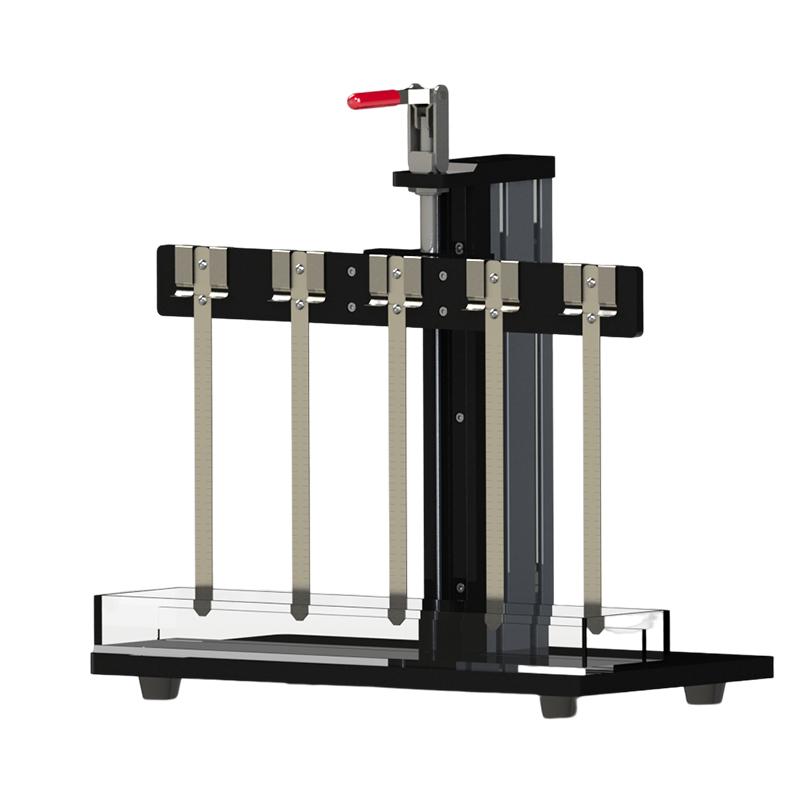

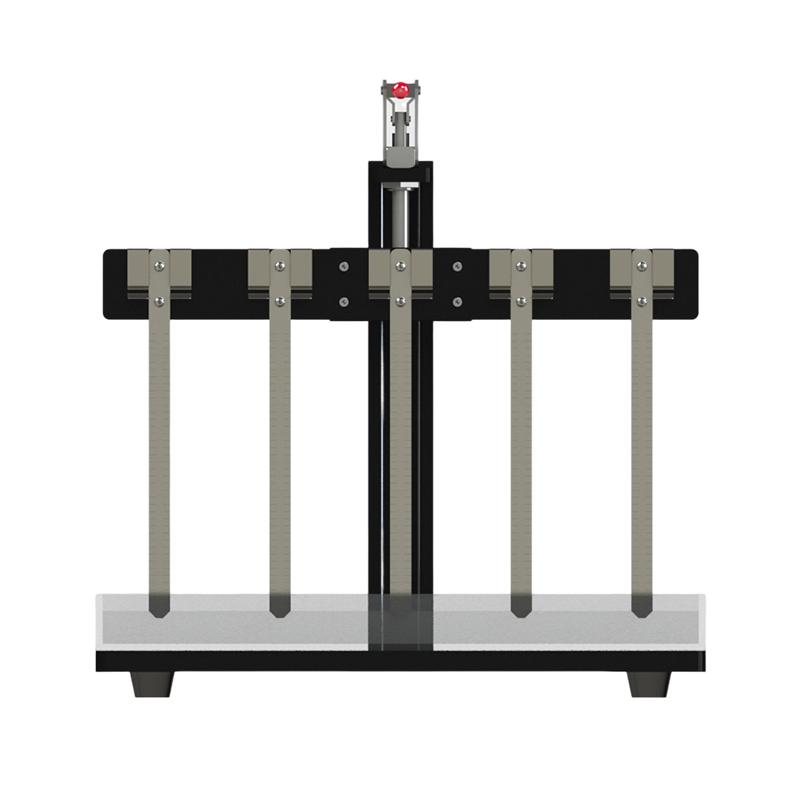

CHENCHI XSL-1 paper Water Absorption Tester 5~ 200mm
SEMeasurement range 5~ 200mm, sample size 250 × 15mm, can test 10 samples at the same time, in line with QB/T1662, GB/T461.1 standards.
$767.00/set
PromotionLoading...
Coupon
Model：
XSL-1
Similar products
labchen XSL-1 Water absorption TesterSPEC
labchen XSL-1 Water absorption TesterDetails
labchen XSL-1 Water absorption TesterPacking list
- SKU
- NB042686
- Measurement range
- 5～200mm
- Specimen size
- 250×15mm
- Ruler Graduation
- 1mm
- Simultaneous measurement of the number of samples
- Article 10
- Number of engraving rulers
- 5
- Dimensions
- 430×240×370mm
- Weight
- 10kg
XSL-1
Water absorption Tester
Measurement range 5~ 200mm, sample size 250 × 15mm, can test 10 samples at the same time, in line with QB/T1662, GB/T461.1 standards.
Introduction
Tests the wicking height of paper and board according to the Kremm method. The instrument is suitable for the determination of the capillary liquid absorption height of unglued paper and cardboard; it is not suitable for the paper and cardboard whose capillary liquid absorption height is less than 5mm within 10 minutes.
Test Principle
For a vertically suspended sample, its lower end 5mm is immersed in the reagent, and the capillary suction height after a certain period of time is measured. The liquid absorption time is selected according to the characteristics of the product, such as 10min±10s, etc.
According to the standard
QB/T1662 "Kreem Absorbency Tester", GB/T461.1 "Determination of Capillary Absorption Height of Paper and Cardboard (Kreem Method)"
FAQ
QWhich materials are suitable for measuring the water-absorption energy of this instrument?
A
It is mainly suitable for unglued paper and Cardboard, such as filter paper and toilet paper, which need to test the water absorption capacity. But it is not suitable for materials with a water absorption height of less than 5mm within 10 minutes, because the minimum measurement of the instrument is 5mm.
