CHENCHI ZBT-10S Paper cup Stiffness meter 1~ 30N

Imported chip processing system from the United States, touch screen operation, built-in micro printer, indication Precision +/- 1%, Test speed 50 +/- 0.1mm/min, in line with QB/T2294, GB/T27590 standards.
Model：
Certificate
Contact
Details SPEC CAT
Similar products

labchen ZBT-10S Stiffness meterSPEC

labchen ZBT-10S Stiffness meterDetails

labchen ZBT-10S Stiffness meterPacking list

SKU
NB042690
Measurement range
1~30N
Resolution
0.01N
Indication Precision
±1%
Test speed
50±0.1mm/min （30~80 mm/min可调）
Probe relative movement distance
9.5 +/- 0.1mm (adjustable from 1 to 20mm)
Probe pair neutral
≤0.2mm
Two probe opening distance
40-120mm
Data output method
Thermal printer
Data storage quantity
99 groups
Dimensions
500×270×330mm
Mass
About 18kg
ZBT-10S
Stiffness meter
Imported chip processing system from the United States, touch screen operation, built-in micro printer, indication Precision +/- 1%, Test speed 50 +/- 0.1mm/min, in line with QB/T2294, GB/T27590 standards.

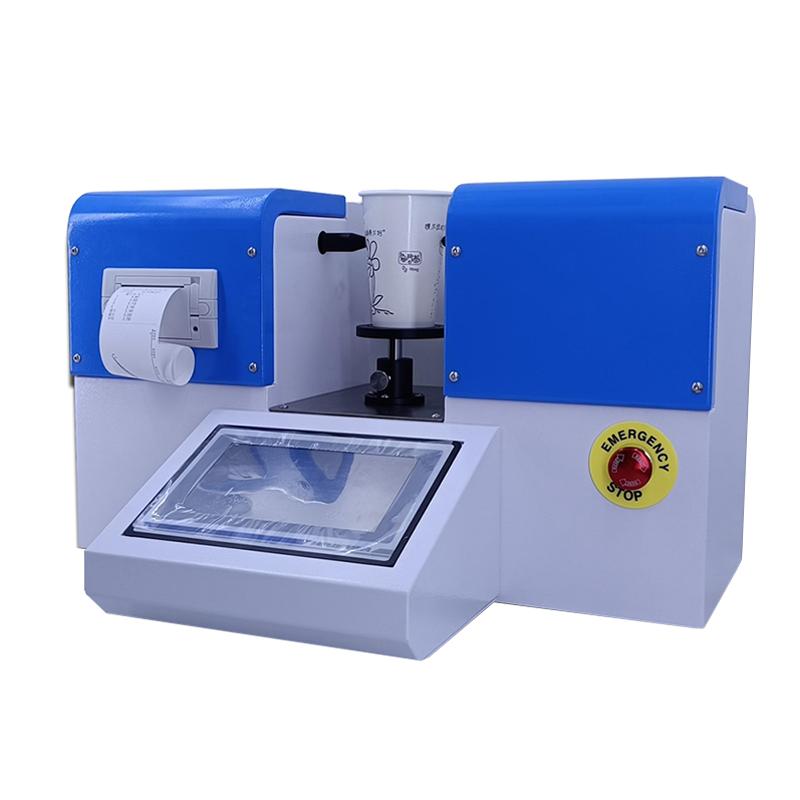

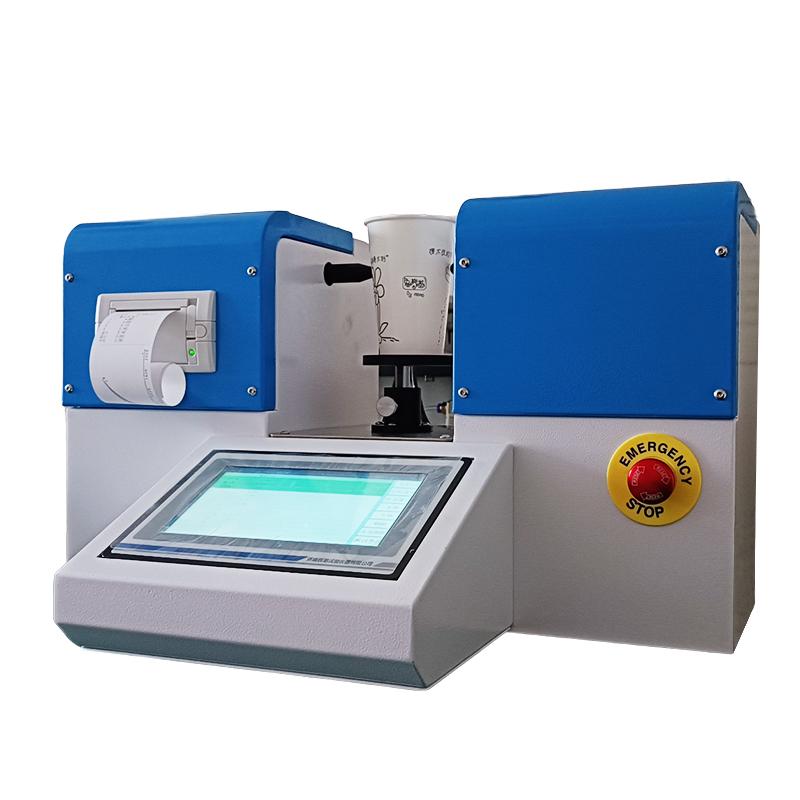

CHENCHI ZBT-10S Paper cup Stiffness meter 1~ 30N Picture

Introduction

Paper cup and bowl stiffness Tester is a special instrument for testing the stiffness of paper cups. The instrument is designed according to the basic requirements of the QB/T2294 (paper cup) and GB/T27590 (paper cup) standards and the general technical requirements of JJG157 "Non-metallic Tensile, Pressure and Wantneng Testing Machine". It is an instrument required by paper cups and related scientific research and quality inspection departments.

Product Features

High-precision uses high-precision load cells and chip processing systems imported from the United States to ensure accurate measurement indications.

In the test system with good repeatability, the two measuring heads move relative to each other through precision screw drives, and the test speed is accurate and constant. The test results have good repeatability. The test speed and relative movement distance of the probe can be set arbitrarily within a certain range, which improves the applicability of the instrument. This function is of great significance to scientific research and testing institutions.

Easy to use, easy to operate, touch screen with Chinese display and friendly human-machine interface operation. Complete the test fully automatically, with test data statistical processing function, micro printer output, and optional computer connection. When connected to a computer, in addition to automatically memorizing and storing results, the pressure curve can also be displayed and saved.

Standards compliant

      QB/T 2294, JJG157, GB/T27590-2011, etc.
