CHENCHI ZLS-200 paper filtrating speed meter 0.10~3.00mm

SE
Touch screen operation, multiparameter can be set, test results can be printed, 100ml/50ml gears can be switched, test area is 10 +/- 0.05cm2, in line with GBT10340 standard.
$1739.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con CAT

labchen ZLS-200 Paper filtrate velocity meterSPEC

labchen ZLS-200 Paper filtrate velocity meterDetails

labchen ZLS-200 Paper filtrate velocity meterPacking list

SKU
NB042693
Film thickness range
0.10～3.00 mm
test area
10±0.05 cm²
Inner diameter of clamping ring
Φ35.7 mm
Outer diameter of clamp ring
Φ50 mm
Gear selection
50mL/100mL
Result unit
ml/（cm²·s）
Display output
Touch screen display, printer output
Dimensions
330×400×920mm
Power
220V 50HZ
Operating Environment
Indoor temperature 20 +/- 10 ℃; Relative Humidity < 85%; clean and less dust, no strong magnetic field, no strong vibration source
Net Weight
18KG
Standards
GBT10340 Paper and Cardboard filtrating speed measurement
ZLS-200
Paper filtrate velocity meter
Touch screen operation, multiparameter can be set, test results can be printed, 100ml/50ml gears can be switched, test area is 10 +/- 0.05cm2, in line with GBT10340 standard.

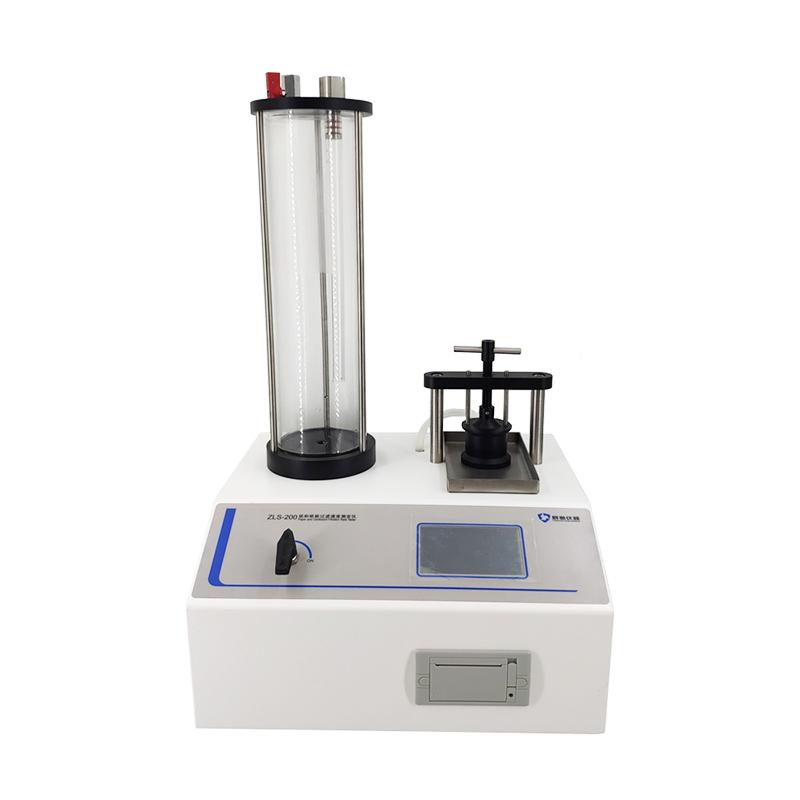

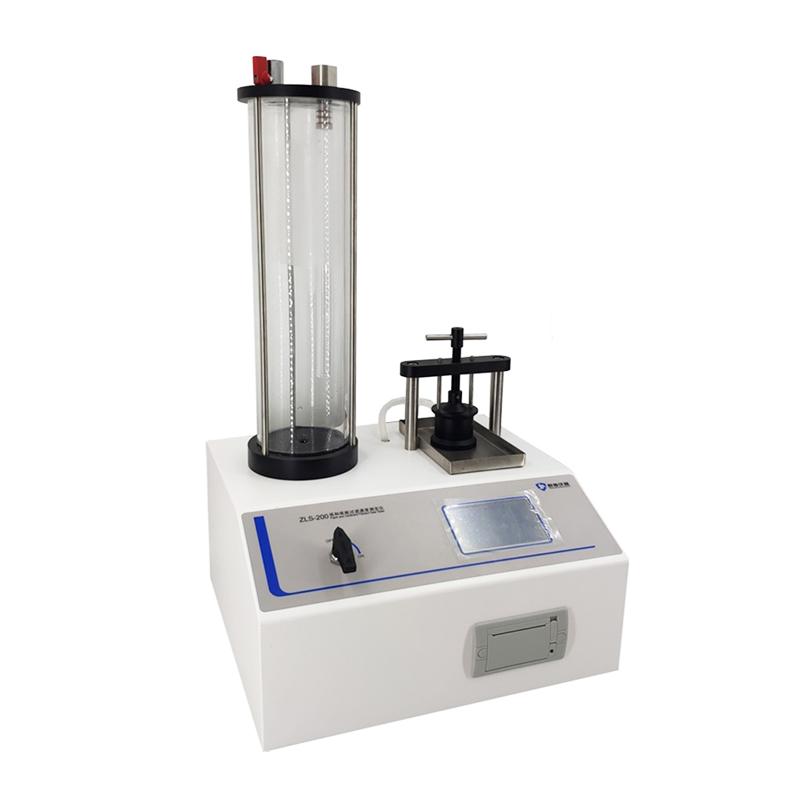

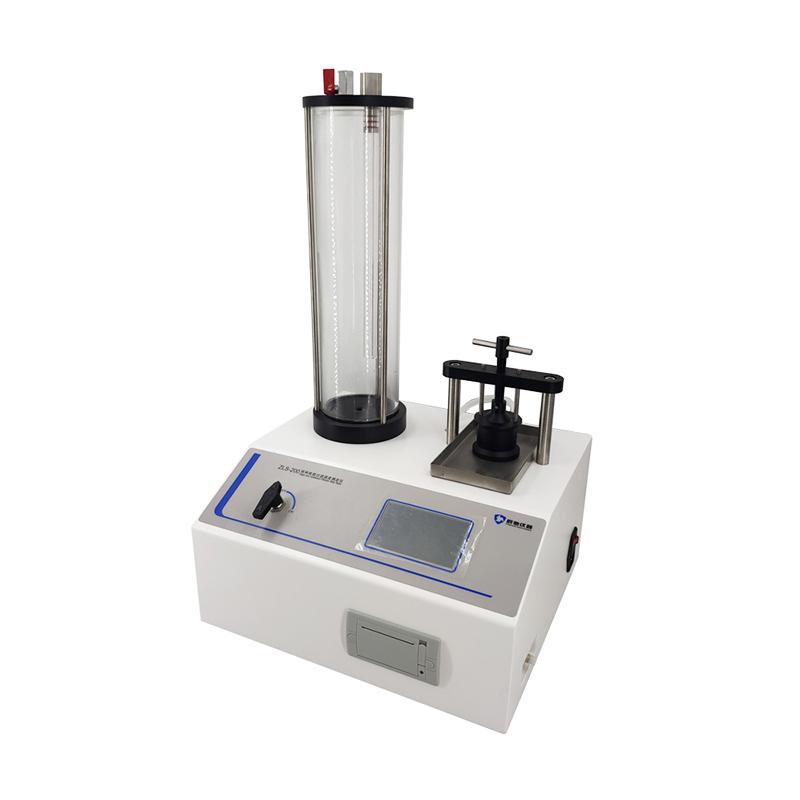

CHENCHI ZLS-200 paper filtrating speed meter 0.10~3.00mm Picture

Instrument use

This instrument is suitable for the determination of the water filtration speed of filter paper and filter paperboard with a certain wet strength, but it cannot be used for the determination of the water filtration speed of filter paper and filter paperboard processed by resin or whose surface is not hydrophilic or not completely hydrophilic . The Principle of the instrument is the time required for 100 ml or 50 ml of water to flow out through a paper sample with a diameter of 35.7mm (area 10㎝2) under the condition that the pressure difference between the two sides of the paper sample is 1Kpa (ie 100mm water column), and the time is expressed in seconds .

Features

  • Touch screen operation, multiple parameters can be set

  • 100ml/50ml gear can be switched

  • The instrument automatically calculates the final filtration speed result according to the filtration time

  • Result saving and multi-group result statistical printing
