YD-WTD Paper and Cardboard Static Bending Stiffness Tester 0~500mN.m

SE
7-Inch color LCD screen, test size 38 * 80mm, suitable for film, mica sheet, graphite sheet, composite and other sheet materials.
$1998.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con
Similar products

YunDa YD-WTD Bending Stiffness Tester (7 inch screen)SPEC

YunDa YD-WTD Bending Stiffness Tester (7 inch screen)Details

YunDa YD-WTD Bending Stiffness Tester (7 inch screen)Packing list

SKU
NB042694
Measurement Range
(0~500) mN.m, (0~10000) mN, choose according to actual needs
Accuracy
Soil 0.1%
span range
5-10-15 - 20-25-30 - 40 - 50 8 gear arm adjustable
Specimen size
The old standard 38 * 70mm, the new standard 38 * 80mm, the instrument can be tested; the actual measurement size
resolution
0.01mN
Angle resolution
0.1°
Self-calibrating
Self-calibrating equipment with calibrating tools and Weights as standard
Angular velocity control
0.5~ 1000 °/min adjustable
bending time
Choose different bending times according to the resilience of the material and can be set by yourself within the range of 5~ 35s
bending angle
Adjustable from 1 to 90 °, commonly used (15 +/- 0.3) °, (7.5 +/- 0.3) °
Display
5/7Inch touch screen operation interface, visual menu operation
Sensors Replacement
Sensors can be replaced quickly
printout
Modular integrated thermal printer
Dimensions
350*330*350mm
YD-WTD
Bending Stiffness Tester (7 inch screen)
7-Inch color LCD screen, test size 38 * 80mm, suitable for film, mica sheet, graphite sheet, composite and other sheet materials.

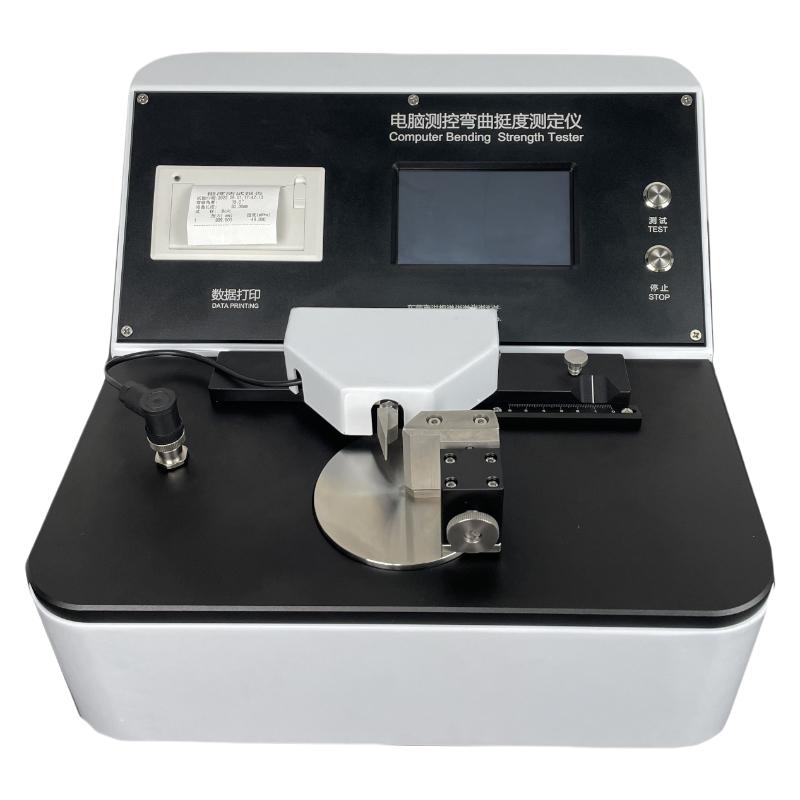

YD-WTD Paper and Cardboard Static Bending Stiffness Tester 0~500mN.m Picture

Applications

The material bending performance Tester is used to detect the bending stiffness of paper and cardboard. The bending stiffness can be used to detect the bending stiffness of sheet materials such as films, mica sheets, graphite sheets, and composite materials.

Standards

GB/T 23144, GB/T 22364, ISO 5628, ISO 2493

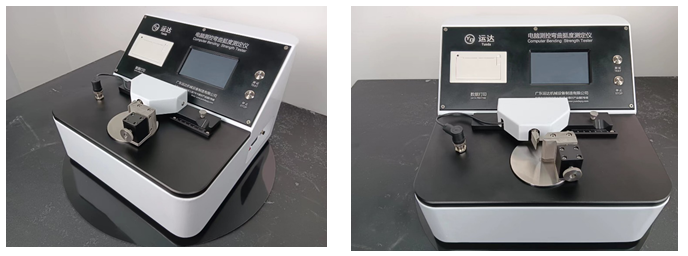

Yunda YD-WTD Bending Stiffness Tester (7-inch screen) Details Figure 1

FAQ
QI want to test the bending stiffness of paper, which instrument should I choose?
A YD-WTD bending stiffness tester conforms to GB/T 23144 and other national standards, specially used for bending stiffness detection of paper and Cardboard, accurate measurement, simple operation, 7-inch large Touchscreen makes testing and reading very convenient.
QCan this instrument measure other materials besides paper?
A Yes. This YD-WTD tester is widely used. In addition to paper Cardboard, it is also commonly used to detect the bending stiffness performance of various sheet materials such as film, mica sheet, graphite sheet, composite, etc. Its force arm has 8 adjustable gears, and the bending angle and speed can also be flexibly set, which can adapt to different soft, hard and resilience material testing needs.
