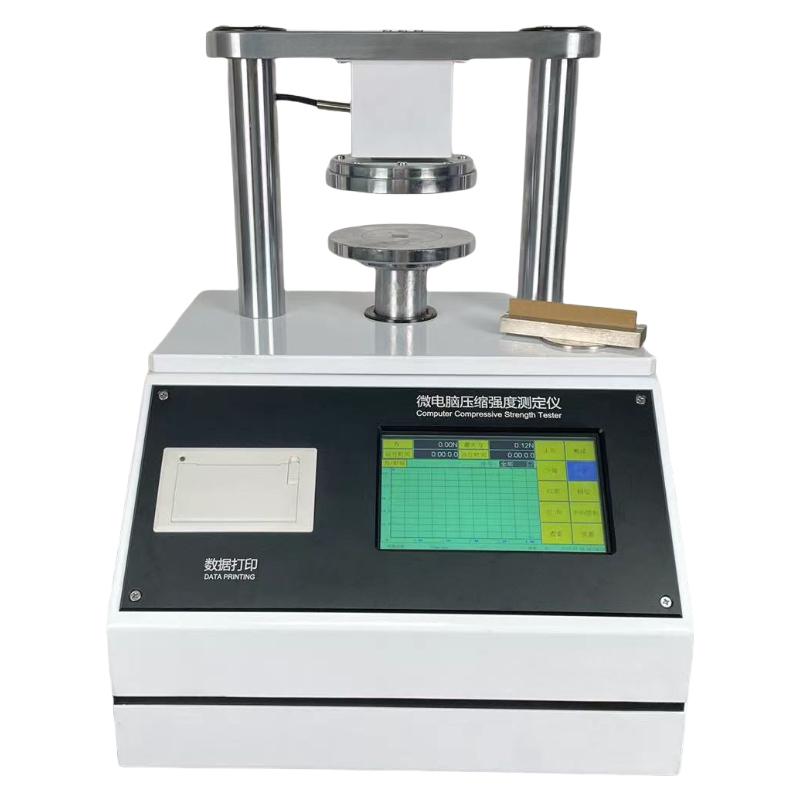

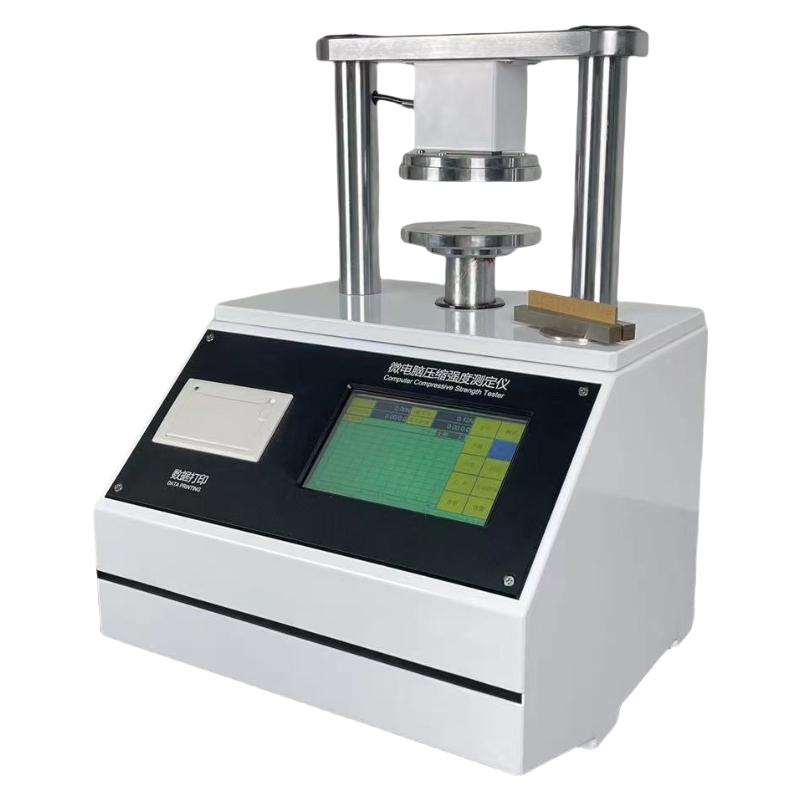

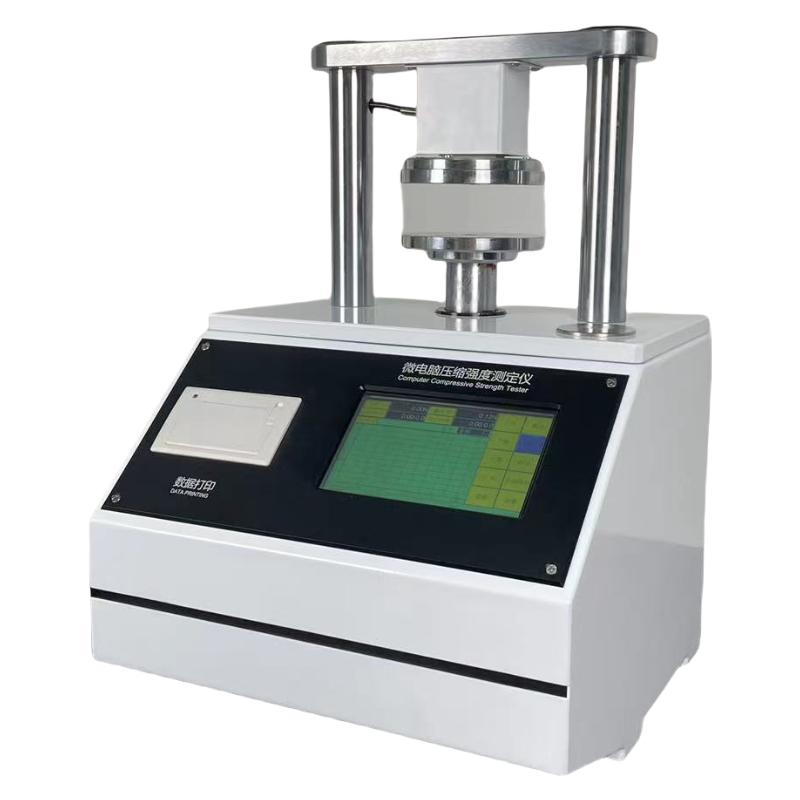

Yunda YD-BYJ Automatic Side Compression Strength Tester 0-3000N

YD-BYJ

Side pressure strength Tester

7-Inch color touch screen, detection paper, Cardboard, corrugated paper, range 0~3000N, with statistical function, can store 50 sets of test data, automatic reset settings.

Introduction

The automatic compressive strength Tester is a testing instrument for testing paper ring compressive strength, cardboard edge compressive strength, corrugated cardboard adhesive strength, corrugated cardboard flat compressive strength, etc. Paper mills are usually used to test paper with a thickness of 0.15-1.00mm Ring crush strength (RCT). Cardboard, carton factories and carton users are usually used to test the edge crush strength (ECT), flat crush strength (FCT), adhesive strength (PAT) and flat crush strength (CMT) of paper cores with a diameter less than 60mm of corrugated board. The instrument is a professional auxiliary test tool for papermaking enterprises, cardboard manufacturers, carton manufacturers, carton users and quality supervision and inspection departments.

Standards

GB/T 2679.8 "Determination of Ring Crush Strength of Paper and Board"

GB/T 6546 "Determination of Edge Crush Strength of Corrugated Cardboard"

GB/T 6548 "Determination of Adhesion Strength of Corrugated Cardboard"

GB/T 2679.6 "Determination of Flat Compression Strength of Corrugated Base Paper"

Features

• All stainless steel, fixture placement points, presenting a neat and uncluttered appearance


• It has the function of parameter setting authority management.

• Menu mode operation interface

• Menu Prompt Operation Steps

• High-contrast large screen 7 inches with a curve to display the operation results

• Auto reset setting

• Function keys with test items set

• External network cable interface, can be connected to a computer for operation, equipped with professional computer software, can operate the instrument and store test results on the computer, and can print A4 paper size test report through the computer to connect to a color printer

• The instrument itself can store 50 sets of test data and record them in the test results. And the results can be printed out by a micro-printer

• With statistical functions: arithmetic average, maximum and minimum, standard deviation, in different test modes, can automatically convert edge compressive strength, ring compressive strength, adhesive strength, compressive strength, flat compressive strength

Packing list：host X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
