Defelsko C Advanced 2003-E Ultrasonic Coating Thickness Gauge Coating thickness of concrete, fiberglass, etc
SE
C Advanced 200C3-E
Defelsko C Advanced 200C3-E Ultrasonic Thickness GaugeSPEC
Defelsko C Advanced 200C3-E Ultrasonic Thickness GaugeDetails
Defelsko C Advanced 200C3-E Ultrasonic Thickness GaugePacking list
- SKU
- NB000427
- Measurement range
- 50~3800μm(2~150 mils)
- Probe style
- Split probe
- Measurement error
- ±(3%H+2)μm
- Display resolution
- 1μm
- unit system
- μm/mils
- Storage Capacity
- 100000 Measured values, 1000 groups
- statistical function
- Average, standard deviation, minimum/maximum thickness and number of readings
- Standards
- ASTM D6132、ISO 2808
- Display
- Color LCD screen
- Operating language
- Chinese, English
- Interface
- USB
- Application Software
- Yes.
- Protection level
- Resistant to solvents, acids, oils, water and dust
- Power Supply
- 3 * 7 battery
- Host size
- 127*66*25.4mm
- Weight
- 137G (without battery)
- Application
- Coating thickness of concrete, fiberglass, etc
- calibration standard
- DeFelsko STDP6
Introduction
The Defelsko C Advanced 200C3-E Ultrasonic Coating Thickness Gauge is manufactured by DevskoAdvancedUltrasonic coating Thickness Gauge is suitable for measuring the thickness of concrete, glass fiber and other coatings. Advanced Ultrasonic Coating Thickness GaugeThe thickness of up to 3 coatings can be measuredIt is also capable of coating analysis through color graphic data, using a high-contrast LCD screen, which can store 100,000 measurement readings with a measurement range of 50~3800 microns.
Technical parameters of ultrasonic coating Thickness Gauge
Application: Coating thickness of concrete, fiberglass, etc
Measuring range: 50-3800 microns
Model: C Advanced 200C3-E
Advanced features
Includes all of the aforementioned features plus...
Measure the total thickness of a coating system or up to 3 coatings in a multi-coat system, and output graphical data for detailed coating analysis
High-contrast color LCD display
Stores 100,000 readings and 1,000 sets of readings
Instant help, real-time charts, dialogs, and more
Batch Annotation - Add and modify batch names via the universal keyboard on the screen
Wireless technology, synchronized with PosiSoft.net in real time, enables software updates and expands its functionality by connecting with other mobile devices
The concrete coating Thickness Gauge is connected to a computer and printer through USB or Bluetooth wireless technology to achieve data transmission
Chart mode with screenshot function

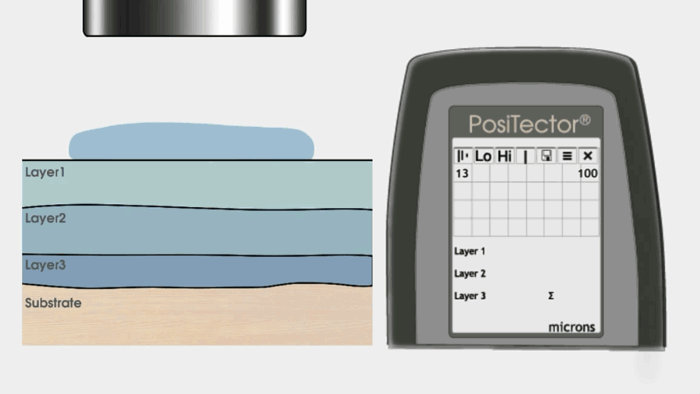

Schematic diagram of multi-coat testing
Live shot
Key features of ultrasonic coating Thickness Gauges:
durable
Resistant to solvents, acids, oils, water and dust - all-weather protection
The rubber sheath with belt buckle provides shock absorption and protection
The ultrasonic Thickness Gauge is guaranteed for two years on the main unit and the transducer
Simple
Ready-to-use – no calibration adjustment is required for the vast majority of tests
One-handed operation menu
The two-color indicator light still performs well in noisy environments
The RESET restart feature allows for a quick factory reset
Precision
Ultrasonic Thickness Gauges are traceable to NIST calibration proofs
Sensitive sensors provide fast, accurate readings
Proven non-destructive ultrasonic thickness gauging technology meets ASTM D6132
and ISO 2808 standards
Multi-purpose
The PosiTector mainframe is extremely versatile, with PosiTector 200, 6000, SPG, DPM, and UTG probes all available and easy to replace. In this way, a concrete coating Thickness Gauge becomes a surface profile meter, a dew point meter or an ultrasonic wall Thickness Gauge.
Mil/micron units can be freely switched to multiple languages
The high-contrast backlit display makes it easy to operate the inverted display function in bright or dim environments, making it easy to flip the readings and operate during measurements
Use alkaline batteries or rechargeable batteries (built-in charger)
Powerful
The concrete coating Thickness Gauge continuously displays/updates the average value, standard deviation, min/max thickness and number of readings
Screenshots - Record and store screen images for easy archiving and browsing
Quickly connect to your computer via the USB port for continuous power supply. USB cable is included
PosiSoft USB Driver - Use a regular PC/Mac browser or explorer to access stored readings and charts without the need for software
Each stored data is marked with a date and time
Update your software over the Internet to get your gauge in the air
Connect PosiSoft.net
Note: Advanced Thickness Gauges only
Ultrasonic Coating Thickness Gauge Software Features
PosiSoft®... A free solution for browsing, analyzing, and reporting
PosiSoft USB Drive
Connect to your PC/Mac via USB cable to read and print stored readings, charts, pictures, annotations and screenshots. No additional software or internet connection is required
PosiSoft.net
A web-based application that provides centralized management of secure PosiTector readings.
You can take readings from all networked instruments
PosiSoft Software
Desktop software to download, browse, and print test data.
PosiSoft Mobile
Through devices that can use WiFi such as tablets,
smartphones and laptops to take readings,
Charts, screenshots, and update notes.
(This feature is only available for premium models)
Select the ultrasonic coating Thickness Gauge model that suits the measurement range
Standard Advanced
The B-type probe measures wood, plastic, etc The C-probe measures concrete, fiberglass, etc
polymer coating on the material coating on the material
Features of Ultrasonic Coating Thickness Gauge Advanced
Premium model
Includes all of the aforementioned features plus...
Measure the total thickness of a coating system or up to 3 coatings in a multi-coat system, and output graphical data for detailed coating analysis
High-contrast color LCD display
Stores 100,000 readings and 1,000 sets of readings
Instant help, real-time charts, dialogs, and more
Batch Annotation - Add and modify batch names via the universal keyboard on the screen
Wireless technology, synchronized with PosiSoft.net in real time, enables software updates and expands its functionality by connecting with other mobile devices
The concrete coating Thickness Gauge is connected to a computer and printer through USB or Bluetooth wireless technology to achieve data transmission
Chart mode with screenshot function
Concrete coating Thickness Gauges output graphical data that facilitates detailed coating analysis
Ultrasonic Coating Thickness Gauge Model Measurement Range
C Advanced 200C3-E Ultrasonic Coating Thickness Gauge Probe
After-sales service
DeFelsko provides a comprehensive warranty against defects in the manufacture of its products or in the materials of its products under normal use for a period of 2 years from the date of purchase.
