Brand：YunDa
Model：YD-HD-Z

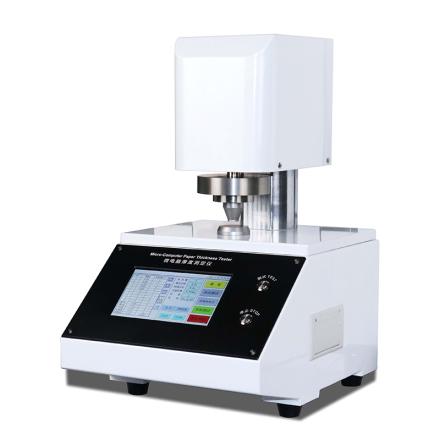

Name：Automatic Thickness testing instrument (7 inch screen)
Specifications
| Power Supply | AC220V±10% 2A 50Hz |
| error of indication | ±0.5% |
| Indication variability | ≤0.3% |
| Measurement Range | ≤5mm |
| resolution | 0.001mm |
| Measurement plane parallelism | ≤0.002mm |
| Contact area | Paper (200 +/- 5) mm2 or film (50 +/- 1) mm2 |
| Contact Pressure | (100 +/- 10) kPa (variable); film (17.5 +/- 1) kPa (Miscellaneous pressure can be customized) |
| rate of descent | ≤ 0.5-10 mm/s; (can be changed) |
| Print function | Modular integrated thermal printer |
| Weight | About 25kg |
| Human Machine Interface | 7 inch touch screen |
| Connect computer software to operate | optional |
| Dimensions | 320*310*380mm |
Packing list
host X1, manual X1, certificate X1, warranty card X1
After-sales instructions
Warranty days: 365 days
1. For product quality problems caused by non-human products of instruments and equipment, the manufacturer will provide free warranty services during the warranty period;
2. There is no warranty period for fragile and consumable parts, and if you find product quality problems after receiving the goods, please apply for return and exchange within 7 days, and you will not wait for the overdue ones;
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/42703/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
