Brand：YunDa
Model：YD-KYJ-Z

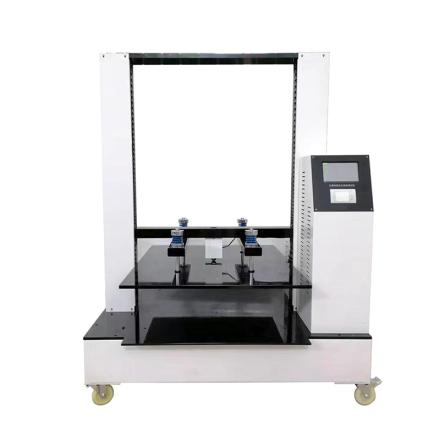

Name：Carton compression machine 600 * 800mm (7 inch screen)
Specifications
| Measurement range | 10KN |
| An indication of pressure error | ±2% |
| Pressure indication variability | ≤2% |
| Pressure return to zero error | ±0.2%FS |
| Measuring Accuracy | ±1mm |
| Stacking test Preset load Relative fluctuation | ±4% |
| Pressurization speed adjustment range | 5mm/min~90mm/min |
| Pressurization speed relative error | In the range of (5~ 90) mm/min, +/- 3% |
| Standard pressurization speed | 12mm/min |
| Stacking test tracking pressure speed | 5mm/min |
| Upper platen working stroke | 800mm |
| test interval | 600mm*800mm*800mm |
| The parallelism between the Upper/Lower platens | ≤1mm |
| communication output | Configurable Rs232 (software purchased separately) |
| Dimensions of testing machine | 800×1000×1350mm |
| Testing machine Mass | About 250KG |
Packing list
host X1, manual X1, certificate X1, warranty card X1
After-sales instructions
Warranty days: 365 days
1. For product quality problems caused by non-human products of instruments and equipment, the manufacturer will provide free warranty services during the warranty period;
2. There is no warranty period for fragile and consumable parts, and if you find product quality problems after receiving the goods, please apply for return and exchange within 7 days, and you will not wait for the overdue ones;
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/42705/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
