China

Yunda YD-TD-B cup stiffness Tester 0-10N

SE
Fully automatic electronic test, built-in tray automatic lifting, with real-time Linear dispersion function, in line with QB/T 2294 standard, can measure the diameter of paper cups 30~150mm.
$2247.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con CAT
Similar products

YunDa YD-TD-B Cup stiffness TesterSPEC

YunDa YD-TD-B Cup stiffness TesterDetails

YunDa YD-TD-B Cup stiffness TesterPacking list

SKU
NB042706
Resolution
0.01N
Error of indication
±1%
Indication of variability
≤1%
Measurable paper cup diameter
30-150mm
Paper Cup height
15≤L≤120
Test speed
50 +/- 2.5mm/min (1-200 continuously adjustable)
Force distance
9.5±0.5mm
Net Weight
18 kg
YD-TD-B
Cup stiffness Tester
Fully automatic electronic test, built-in tray automatic lifting, with real-time Linear dispersion function, in line with QB/T 2294 standard, can measure the diameter of paper cups 30~150mm.

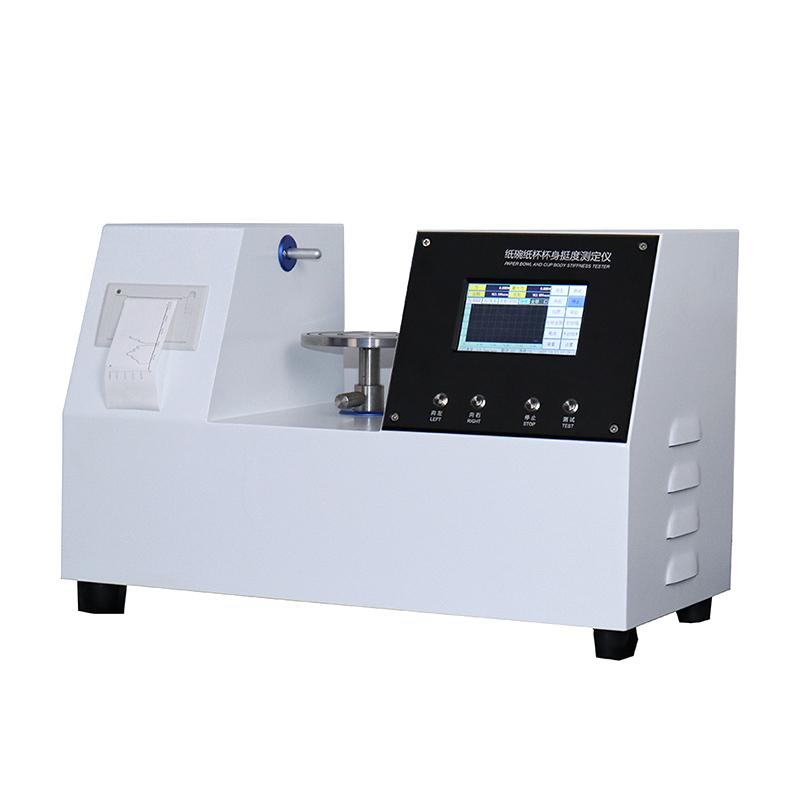

Yunda YD-TD-B cup stiffness Tester 0-10N Picture

Applications

The electronic paper cup body stiffness Tester is a fully automatic electronic testing instrument, designed according to the principle requirements of the mechanical paper cup body stiffness Tester in the QB/T 2294-2006 "Paper Cup" standard. The instrument is easy to operate and is suitable for measuring the body stiffness of paper cups of various capacities. It is a good instrument for measuring the body stiffness of paper cups and can meet the needs of paper cup manufacturers and related scientific research and quality inspection departments for the physical performance testing of paper cups.

technical characteristics

1. Microcomputer processing system, aluminum alloy sandblasting control panel, touch screen LCD display

2. Fully automatic electronic testing equipment, easy to use and wider testing range

3. One-key operation during the experiment to avoid human error

4. Computer measurement and control can automatically judge the initial test state

5. Built-in tray automatic lifting function, high degree of automation

6. Double measuring head structure design, more accurate test data

7. Test with real-time curve function

8. Micro printer, print test data at any time

FAQ
QOur factory mainly produces paper cups of various specifications. If you want to measure the stiffness of the cup body, which instrument should you choose?
A Recommended Yunda YD-TD-B cup body stiffness tester, it is specially designed for paper cups, in line with QB/T 2294-2006 standard, can measure 30-150mm diameter paper cups, fully automatic operation to avoid human error, suitable for daily inspection of manufacturers.
QThis instrument has many functions, what selection points should we pay attention to?
A Focus on automation and accuracy: YD-TD-B one-button operation, tray automatic lifting, saving labor; Measurement range 0-10N, resolution 0.01N, can accurately measure the stiffness of various paper cups to ensure mass stability.
QI want to measure the stiffness of a paper cup, what instrument should I use?
A YD-TD-B cup body stiffness tester is recommended. This instrument is specially designed according to the QB/T 2294-2006 standard, which can automatically measure the stiffness of paper cups of various capacities. It is easy to operate with one click to avoid human errors. It is suitable for paper cup manufacturers and Quality control departments.
QWhat features do you like when choosing this instrument?
A Mainly look at its fully automatic testing and accuracy. Microcomputer system one-click operation, saving time and effort; Measurement range 0~ 10N, resolution 0.01N, small error; Linear dispersion and printing data can be displayed in real time, which is convenient for recording and analysis, greatly improving the detection efficiency.
QOur factory mainly produces paper cups of various specifications. If you want to measure the stiffness of the cup body, what instrument should you choose?
A YD-TD-B cup body stiffness tester is specially designed for paper cups, in line with QB/T 2294-2006 standard, can measure paper cups with a diameter of 30-150mm and a height of 15-120mm, fully automatic operation to avoid human errors, double measurement heads make the data more accurate.
