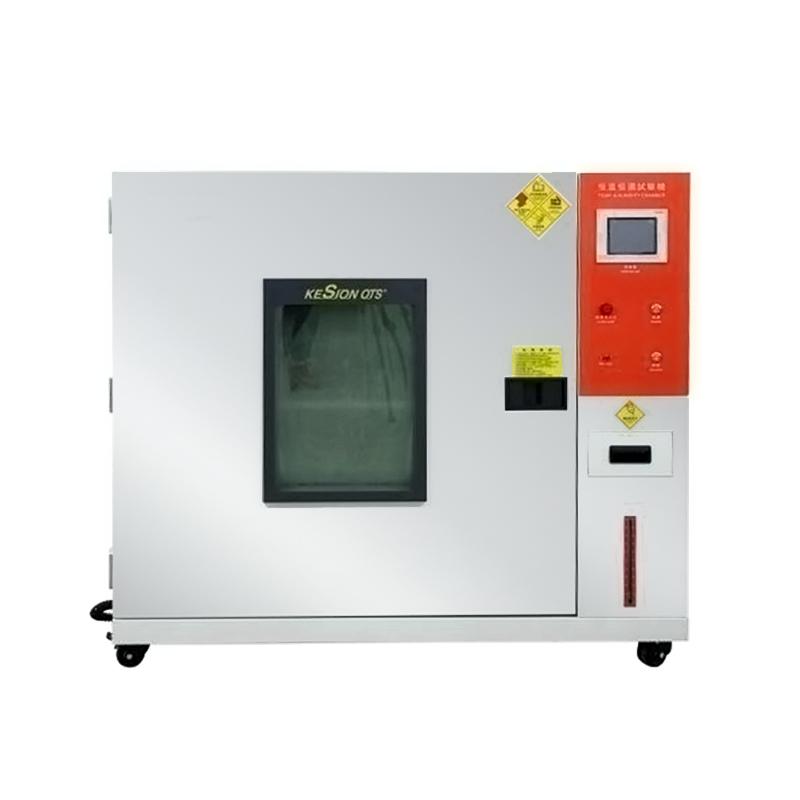

KESIONOTS KS-HD150LC material low/high Temperature Test Chamber -70 ℃/150L
Volume 150L, temperature control -40 ℃~ 150 ℃, air-cooled water-cooled double-stage compressor, with 50mm test hole, programmable control, stainless steel inner box, temperature accuracy +/- 0.1 ℃.
Model：
KS-HD150LC
Similar products
-
HUDA experiment rapid temperature change Test Chamber QD-E708-150K40-X15$ 20033.00SE -
HUDA rapid temperature change Test Chamber QD-E708-150K40-X10$ 14052.00SE -
HUDA rapid temperature change Test Chamber QD-E708-150K40-X5$ 9070.00SE -
HZAOC GDJW-150C high-low temperature cyclic Test Chamber -40-150 ℃/150L$ 6864.00SE
kesionots KS-HD150LC Low/high Temperature Test ChamberSPEC
kesionots KS-HD150LC Low/high Temperature Test ChamberDetails
kesionots KS-HD150LC Low/high Temperature Test ChamberPacking list
- SKU
- NB042715
- Temperature range
- -40~150℃
- Interior Volume
- 150L
- Inner box size
- 50*60*50cm
- Outer box size
- 98*146*110cm
- Temperature analysis Accuracy
- ±0.1℃
- Temperature Uniformity
- ±1℃
- Temperature control Accuracy
- ±1℃
- Temperature Fluctuation
- ±0.5℃
- Heating rate
- ≈4.0℃/min
- Internal and external accessories material
- The outer box is high-grade cold-rolled sheet paint, and the inner box is stainless steel.
- Insulation material
- High temperature resistant high density formic acid vinegar foam insulation material
- Chill down the system
- Air-cooled/single-stage compressor (-20 ℃), wind and water-cooled/double-stage compressor (-40 ℃~ -70 ℃)
- Protection device
- No fuse switch, compressor overload protection switch, refrigerant high Voltage protection switch, over temperature Humidity protection switch fuse, fault warning system
- Accessories
- Viewing window, 50mm test hole, PL box light, Shelf, wet and dry cloth
- Controller
- Korean "TEMI" or Japanese "OYO" card, choose
- Compressor
- "Taikang" or German Bitzer (optional)
- Power
- 220VAC±10%50/60Hz & 380VAC±10%50/60Hz
- meet the standard
- GB2423.1、GB2423.2、GJB150.3、GJB150.4、IEC、MIL
- Cooling rate
- About 1.0 ℃/min (a drop of 5 to 10 ℃ per minute is a special selection condition)
KS-HD150LC
Low/high Temperature Test Chamber
Volume 150L, temperature control -40 ℃~ 150 ℃, air-cooled water-cooled double-stage compressor, with 50mm test hole, programmable control, stainless steel inner box, temperature accuracy +/- 0.1 ℃.
Introduction
The high-low Temperature Test Chamber, also known as the environmental Test Chamber, is suitable for high-low temperature reliability testing of industrial products. Test various performance indicators of components and materials of electronics, electricians, automobiles and motorcycles, aerospace , shipbuilding weapons, colleges and universities, scientific research institutions and other related products under high-low temperature (alternating) cyclic changes. Product design, improvement, identification and inspection, etc., such as aging test.
Standards compliant
GB2423.1, GB2423.2, GJB150.3, GJB150.4, IEC, MIL
High-low Temperature Test Chamber series model table
| model | Inner box size | Carton size | Inner box volume |
| KS-HD80L | 40*50*40cm | 88*137*100 cm | 80L |
| KS-HD150L | 50*60*50 cm | 98*146*110 cm | 150L |
| KS-HD225L | 50*75*60 cm | 108*167*110 cm | 225L |
| KS-HD408L | 60*85*80 cm | 129*177*120 cm | 408L |
| KS-HD800L | 100*100*80 cm | 155*195*140 cm | 800L |
| KS-HD1000L | 100*100*100 cm | 150*186*157 cm | 1000L |
| Other parameters | |||
| temperature range | (A.-70℃; B.-60℃; -40℃; D.-20℃) ~150℃ | ||
| Temperature analysis accuracy | ±0.1℃ | ||
| temperature uniformity | ±1℃ | ||
| Temperature control accuracy | ±1℃ | ||
| temperature fluctuation | ±0.5℃ | ||
| Internal and external materials | The outer box is made of high-grade cold-rolled plate and painted, and the inner box is made of stainless steel. | ||
FAQ
QIs the price listed on the website the final cost for overseas purchases?
ANo, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
QWhat is the specific process for purchasing the product?
AFirst, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
QWhat should I do if the instrument I purchase needs repair?
AAfter-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
