KESIONOTS KS-HD1000LD low/high Temperature Test Chamber -20 ℃/1000L

Volume 1000L, temperature control -20 ℃~ 150 ℃, air-cooled water-cooled double-stage compressor, with 50mm test hole, programmable control, stainless steel inner box, temperature accuracy +/- 0.1 ℃.
Model：
Certificate
Contact
Details SPEC CAT
Similar products

kesionots KS-HD1000LD Low/high Temperature Test ChamberSPEC

kesionots KS-HD1000LD Low/high Temperature Test ChamberDetails

kesionots KS-HD1000LD Low/high Temperature Test ChamberPacking list

SKU
NB042728
Temperature range
-20~150℃
Interior Volume
1000L
Interior size
1000*1000*1000mm
Dimensions
150*186*157cm
Temperature analysis Accuracy
±0.1℃
Temperature Uniformity
±1℃
Temperature control Accuracy
±1℃
Temperature Fluctuation
±0.5℃
Heating rate
≈4.0℃/min
Internal and external accessories material
The outer box is high-grade cold-rolled sheet paint, and the inner box is stainless steel.
Thermal Insulation
High temperature resistant high density formic acid vinegar foam insulation material
Refrigeration system
Air-cooled/single-stage compressor (-20 ℃), wind and water-cooled/double-stage compressor (-40 ℃~ -70 ℃)
Protection device
No fuse switch, compressor overload protection switch, refrigerant high Voltage protection switch, over temperature Humidity protection switch fuse, fault warning system
Accessories
Viewing window, 50mm test hole, PL box light, Shelf, wet and dry cloth
Controller system
Korean "TEMI" or Japanese "OYO" card, choose
Compressor
"Taikang" or German Bitzer (optional)
Power
220VAC±10%50/60Hz & 380VAC±10%50/60Hz
meet the standard
GB2423.1、GB2423.2、GJB150.3、GJB150.4、IEC、MIL
Cooling rate
About 1.0 ℃/min (a drop of 5 to 10 ℃ per minute is a special selection condition)
KS-HD1000LD
Low/high Temperature Test Chamber
Volume 1000L, temperature control -20 ℃~ 150 ℃, air-cooled water-cooled double-stage compressor, with 50mm test hole, programmable control, stainless steel inner box, temperature accuracy +/- 0.1 ℃.

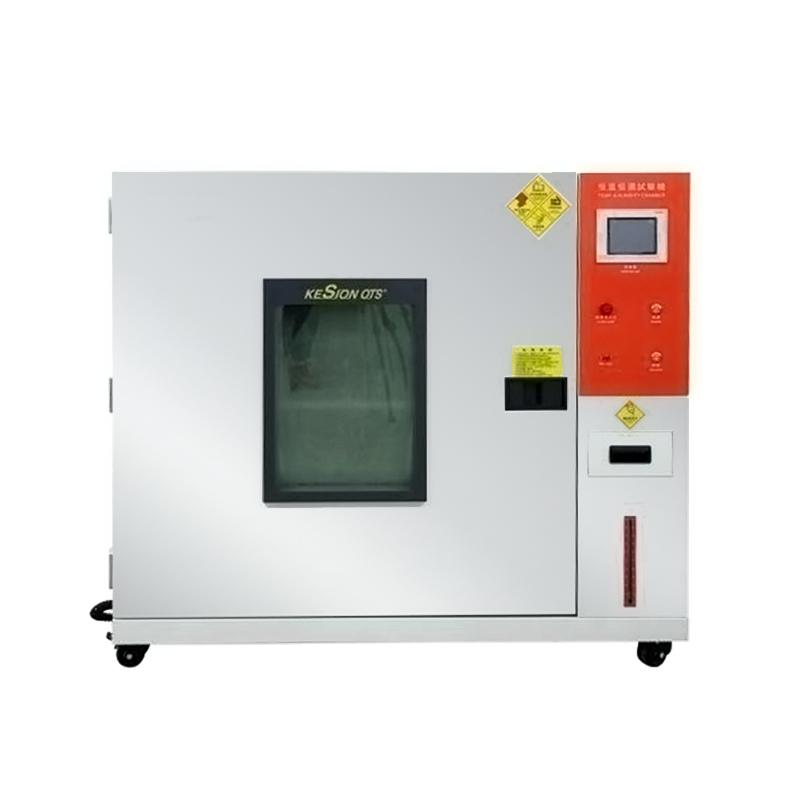

KESIONOTS KS-HD1000LD low/high Temperature Test Chamber -20 ℃/1000L Picture

Introduction

The high-low Temperature Test Chamber, also known as the environmental Test Chamber, is suitable for high-low temperature reliability testing of industrial products. Test various performance indicators of components and materials of electronics, electricians, automobiles and motorcycles, aerospace , shipbuilding weapons, colleges and universities, scientific research institutions and other related products under high-low temperature (alternating) cyclic changes. Product design, improvement, identification and inspection, etc., such as aging test.

Standards compliant

GB2423.1, GB2423.2, GJB150.3, GJB150.4, IEC, MIL

High-low Temperature Test Chamber series model table

modelInner box sizeCarton sizeInner box volume
KS-HD80L40*50*40cm88*137*100 cm80L
KS-HD150L50*60*50 cm98*146*110 cm150L
KS-HD225L50*75*60 cm108*167*110 cm225L
KS-HD408L60*85*80 cm129*177*120 cm408L
KS-HD800L100*100*80 cm155*195*140 cm800L
KS-HD1000L100*100*100 cm150*186*157 cm1000L
Other parameters
temperature range
(A.-70℃; B.-60℃; -40℃; D.-20℃) ~150℃
Temperature analysis accuracy±0.1℃
temperature uniformity±1℃
Temperature control accuracy±1℃
temperature fluctuation±0.5℃
Internal and external materialsThe outer box is made of high-grade cold-rolled plate and painted, and the inner box is made of stainless steel.


FAQ
QIs the price listed on the website the final cost for overseas purchases?
ANo, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
QWhat is the specific process for purchasing the product?
AFirst, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
QWhat should I do if the instrument I purchase needs repair?
AAfter-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
