Brand：YunDa
Model：YD-KZ-WL300

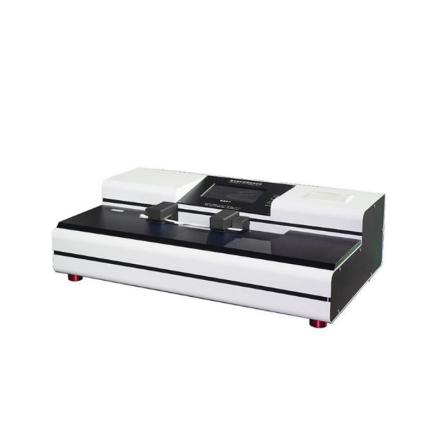

Name：Horizontal Tensile Strength Tester (7 inch screen)
Specifications
| Power | AC(100~240)V，(50/60)Hz 100W |
| Operating Environment | Temperature (10~35) ℃, Relative Humidity ≤ 85% |
| Display | 7-Inch color touch screen |
| Force range | 1~300N |
| Indication resolution | 0.1N |
| Error of indication | +/- 1% (range 5%~ 100%) |
| Working Travel | 300mm |
| Specimen width | 15Mm (25mm, 50mm optional) |
| stretching speed | (1~ 500) mm/min (can be adjusted arbitrarily) |
| printout | Thermal printer |
| Communication interface | RS232 (default) (USB, WIFI optional) |
| Dimensions | 800×400×300mm |
| Net Weight | About 35kg |
Packing list
machine X1, manual X1, certificate X1, warranty card X1
After-sales instructions
None
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/42734/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
