Taichang TC-DJY01 Shobar Freeness Tester

SE
The measurement of diluted pulp suspended water rate was carried out by Schopperr-Riegler test method, with a range of 1~ 100SR, which conforms to ISO, GB/T, QB/T standards.
$891.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con CAT
Similar products

TaiChang Instrument TC-DJY01 Shobal Freeness TesterSPEC

TaiChang Instrument TC-DJY01 Shobal Freeness TesterDetails

TaiChang Instrument TC-DJY01 Shobal Freeness TesterPacking list

SKU
NB042743
Measurement range
1~100°SR
Rising speed of sealing cone
100±10mm/s
Overflow port discharge time
149±1s
Indicator cylinder Graduation
1SR
residual Volume
7.5~8.0ml
Dimension
250×450×1180mm
Weight
About 30Kg
TC-DJY01
Shobal Freeness Tester
The measurement of diluted pulp suspended water rate was carried out by Schopperr-Riegler test method, with a range of 1~ 100SR, which conforms to ISO, GB/T, QB/T standards.

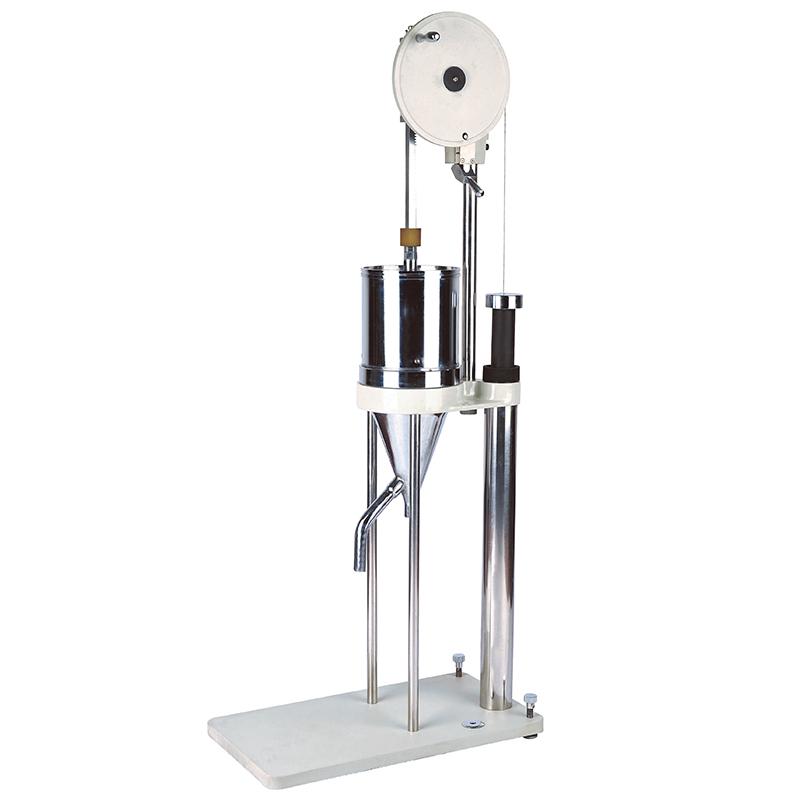

Taichang TC-DJY01 Shobar Freeness Tester Picture

product description

TC-DJY01 Schobel beating degree Tester is used to measure the suspended water velocity of diluted pulp, using the international general Schobel-Rigler test method. It is suitable for testing the drainage ability of diluted pulp suspension, that is, the determination of beating degree.

Features

  • The sealing cone is manually pressed, and the rising speed is adjusted through a heavy hammer. The operation is very simple.

  • The spring preloading mechanism is adopted to make the rubber sealing ring of the sealing hammer body tightly combined with the bottom of the water filter cylinder, which increases the sealing performance of the sealing hammer body.

technical standard

ISO 5267.1: Determination of drainage properties of pulp - Part 1: Schober-Rigler method

GB/T 3332: Determination of pulp beating degree (Schober Riegler method)

QB/T 1054: Pulp beating degree Tester

FAQ
QIs the price listed on the website the final cost for overseas purchases?
ANo, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
QWhat is the specific process for purchasing the product?
AFirst, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
QWhat should I do if the instrument I purchase needs repair?
AAfter-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
