Taichang Instrument TC-PHD Smoothness Meter, Buick Intelligent Tester 10 +/- 0.05cm ² Test Area

SE
Imported Vacuum Pump oil-free operation, with large and small volume cavity automatic switching function, test range 0~9999s, Precision 0.1 seconds, micro printer can save data.
$1835.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con CAT
Similar products

TaiChang Instrument TC-PHD Smoothness meterSPEC

TaiChang Instrument TC-PHD Smoothness meterDetails

TaiChang Instrument TC-PHD Smoothness meterPacking list

SKU
NB042748
Precision
0.1 second
test area
10±0.05cm²
Power
AC220V 50Hz
Weight
About 40kg
TC-PHD
Smoothness meter
Imported Vacuum Pump oil-free operation, with large and small volume cavity automatic switching function, test range 0~9999s, Precision 0.1 seconds, micro printer can save data.

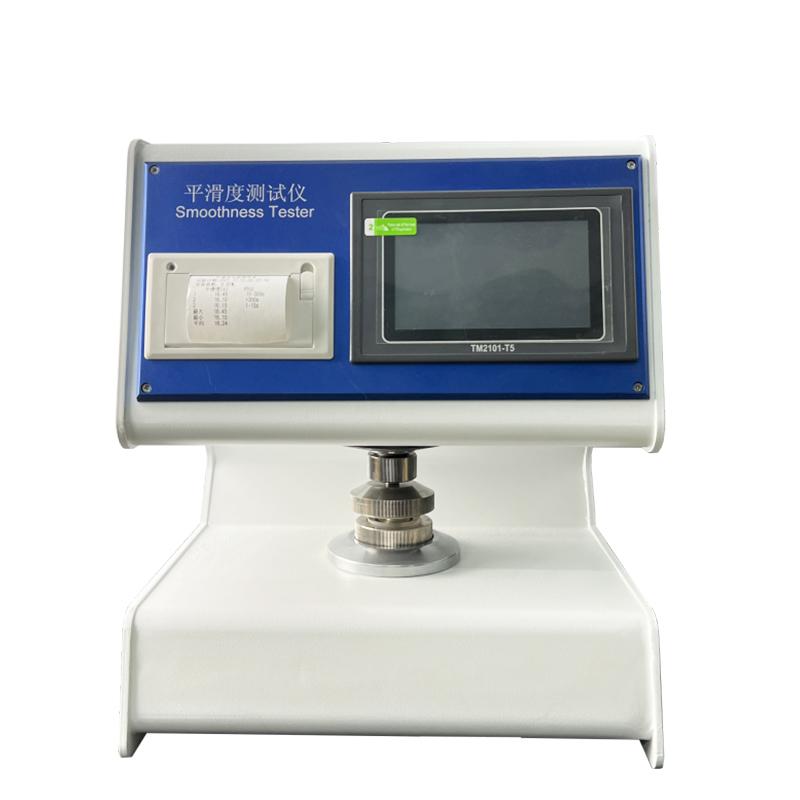

Taichang Instrument TC-PHD Smoothness Meter, Buick Intelligent Tester 10 +/- 0.05cm ² Test Area Picture

Introduction

TC-PHD smoothness measuring instrument is an intelligent testing instrument designed and developed according to the Principle of the internationally accepted Bekk type smoothness meter. The instrument is suitable for the determination of the surface smoothness of paper and cardboard, and is the required testing equipment for papermaking, packaging, printing and other industries.

Features

  • The smoothness measuring instrument is automatically measured and controlled by a microcomputer, with simple and convenient operation, high precision, and stable and reliable performance.

  • Imported Vacuum Pump is used, the Vacuum Pump can work without refueling, and the use of the instrument is oil-free and pollution-free.

  • The smoothness measuring instrument has the function of automatically distinguishing and switching between large and small volume cavities, and can measure and automatically distinguish.

  • A small volume cavity can be used for measurement, and the measurement time is only one tenth of that of a large volume cavity, which greatly saves measurement time and realizes rapid measurement.

  • The smoothness Tester is equipped with a micro-printer, which can save and print test data.

  • Adopt liquid crystal display, Chinese operation interface, display measurement and statistical results.

Product Standards

"GB/T 456 Determination of smoothness of paper and board (Buick method)"

"ISO 5627 Determination of smoothness of paper and board (Buick method)"

"QB/T 1665: Paper and Cardboard Smoothness Tester" and other related standards.


FAQ
QOur paper mill wants to measure the smoothness of Cardboard, which instrument should we choose?
A Recommended Taichang TC-PHD smoothness meter, it uses the principle of Buick method, fully in line with the paper industry standards, can accurately measure the smoothness of 0-9999 seconds, suitable for the detection of Cardboard materials.
QIs this instrument accurate in measuring smoothness? Is it easy to operate?
A TC-PHD accuracy of 0.1 seconds, in line with national and international standards. Microcomputer automatic control, Chinese interface display, as well as automatic determination of the size of the volume cavity function, simple operation, data can be directly printed and saved.
QDoes the instrument have the function of rapid measurement?
A Yes, TC-PHD supports automatic switching of large and small volume cavities. Measurement time of small volume cavities is only one-tenth of that of large volume cavities, which can greatly save Measurement time and is suitable for occasions that require rapid detection.
