CHENCHI WDB-05 180 ° Peel strength Tester 500N

SE
Five-inch color LCD touch screen, test force 0~500N, accuracy level +/- 1%, stretch space 800mm, with overload, leakage, limit protection functions.
$1544.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con CAT
Similar products

labchen WDB-05 Peel strength TesterSPEC

labchen WDB-05 Peel strength TesterDetails

labchen WDB-05 Peel strength TesterPacking list

SKU
NB042758
test force
500N
Operation mode
Five-inch color LCD touch screen,
Standard test force
0-500N
Measurement range
2%~ 100% of the maximum test force
Accuracy level
±1%
Test force Accuracy
+/- 1% better than indication
Deformation display error
≤±(50+0.15L)
test force
Minimum resolution 0.01N
Displacement measurement resolution
0.01mm
Deformation Accuracy
Better than +/- 1%
LCD content
Test force, displacement, peak value, running state, running speed, etc
stepless speed regulation
Stepper Motor and Control system
Drive mode
Stepper motor, synchronous belt drive
Motor Power
150W
Speed regulation range
1mm/min~500mm/min
test stroke
800mm (can be customized)
stretch space
800mm (can be customized)
Host size
500*420*1550mm
Test protection function
Overload protection, leakage protection, limit protection
Power supply
220V  50Hz
Weight
About 80Kg
WDB-05
Peel strength Tester
Five-inch color LCD touch screen, test force 0~500N, accuracy level +/- 1%, stretch space 800mm, with overload, leakage, limit protection functions.

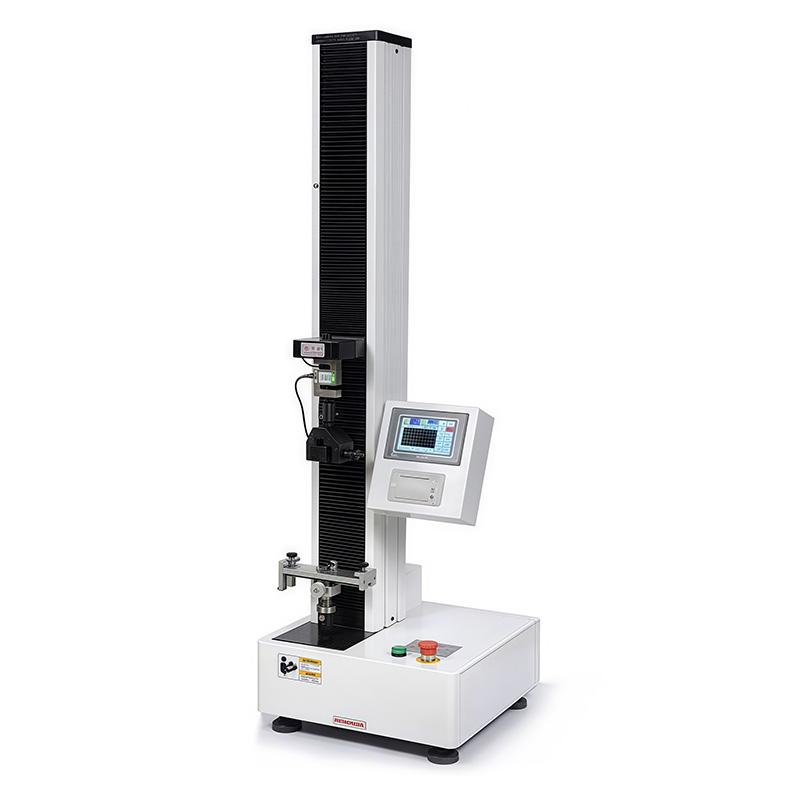

CHENCHI WDB-05 180 ° Peel strength Tester 500N Picture

Introduction

The instrument is a peel Strength Tester designed for colleges and universities and scientific research institutes. The design of the main body and auxiliary equipment of the testing machine integrates excellent technology, with beautiful appearance, convenient operation and stable and reliable performance. Various test methods such as tensile strength, 180°peel strength, and sealing strength can be realized; the system controls the rotation of the servo motor through the speed control system through the Chenchi controller, and after being decelerated by the deceleration system, it goes up through the precision screw auxiliary belt beam, Descending, to complete the tensile mechanical properties test of the sample, no pollution, low noise, high efficiency, and a wide range of speed regulation. The machine is widely used in the inspection and analysis of materials in construction materials, aerospace, machinery manufacturing, wire and cable, rubber and plastics, textiles, household appliances and other industries. Good test equipment.

Reference standard

GB 8808, GB/T 1040.1, GB/T 1040.2, GB/T 1040.3, GB/T 1040.4, GB/T 1040.5, GB/T 4850, GB/T 12914, GB/T 17200, GB/T 16578.1, GB/T T 7122, GB/T 2790, GB/T 2791, GB/T 2792, GB/T 17590, ASTM E4, ASTM D882, ASTM D1938, ASTM D3330, ASTM F88, ASTM F904, JIS P8113, QB/T 2358, QB /T 1130.


FAQ
QI want to test the adhesive strength between tape and Cardboard, what instrument should I use?
A Recommended CHENCHI WDB-05 Peel strength tester, it is specially used to test 180 ° peel strength, in line with GB/T 2790 and other standards, can accurately measure the adhesive force of tape and substrate, simple operation, reliable data.
QPlastic film tensile performance needs to be tested in our laboratory.
A CHENCHI WDB-05 Peel strength tester is very suitable, it supports tensile strength testing, covering GB/T 1040 series standards, suitable for plastics, films and other materials, high accuracy, wide speed range, to meet the needs of scientific research.
QI want to test the peel strength of the tape. Is your WDB-05 Peel strength tester suitable?
A Yes! This Peel strength tester is specially designed for 180 ° disbonding test of tapes, stickers and other materials. The force range of 0-500N fully covers the tape test requirements. The accuracy +/- 1% can accurately reflect the gluing performance. The simple touch screen makes the test more convenient.
QCan the instrument do the sealing strength test of Encasement material? What are the advantages of choosing this one?
A Yes! This instrument supports seal strength testing, using servo motor and precision screw drive, the test process is smooth and non-Impact, low noise and high efficiency. The five-inch touch screen is intuitive to operate and can automatically save peak data, which is suitable for the inspection needs of the sealing mass in the Encasement industry.
