Pushen ISO-4 #paints ISO Viscosity cup with bracket, aluminum

SE
Pushen ISO-4 #paints Viscosity cup with stent, outflow aperture is 4mm, measuring range is 34-135cSt, flow time is 25-100s.
Model：
Certificate
Contact
Details SPEC VIDEO CAT OI
Similar products

Pushen ISO-4# Flow cup with bracketSPEC

Pushen ISO-4# Flow cup with bracketDetails

Pushen ISO-4# Flow cup with bracketPacking list

SKU
NB004280
Viscosity range
34~135cSt
outflow time
25~100s
Flow hole diameter
4mm
Cup height
86mm
Cup width
56mm
Cup body material
Aluminum anode oxidation
Filter material
stainless steel
Applicable standard
ASTM D5125,ISO 2431
Certificate
without
Weight
268g
ISO-4#
Flow cup with bracket
Pushen ISO-4 #paints ISO Viscosity cup with bracket, aluminum Picture

Introduction to ISO Cup

Pushen ISO Cup is a benchtop Viscosity Cup with a bracket. Five different models are designed according to different measuring apertures: No. 3, No. 4, No. 5, No. 6, No. 8 ( need to be customized), and the measured aperture They are 3mm, 4mm , 5mm, 6mm, 8mm respectively . The production designer of Pushen ISO cup complies with the standard ASTM D 5125, ISO 2431, which is the required testing instrument for laboratory testing of viscosity.

The Pushkin ISO Cup is made of anodized aluminum with a stainless steel bore and is used for measuring the viscosity of paints, varnishes and other similar products.

Viscosity unit

The kinematic viscosity value is usually expressed in seconds after the flow is completed, and can also be converted into centistokes (Centistokes) through the viscosity conversion disc.

The unit of kinematic viscosity is stokes, Stokes, when the fluid viscosity is 1P (poise), the kinematic viscosity with a density of 1g/cm3 is 1 Stokes.

cSt is the abbreviation of centistokes, called centistokes, which is one hundredth of 1 Stokes. Centistokes (cSt) is the smallest unit of kinematic viscosity.

Standards

Paint ISO cups are made according to ASTM D 5125, ISO 2431 "Determination of flow time by Flow Cup for paints and varnishes".

Pictures

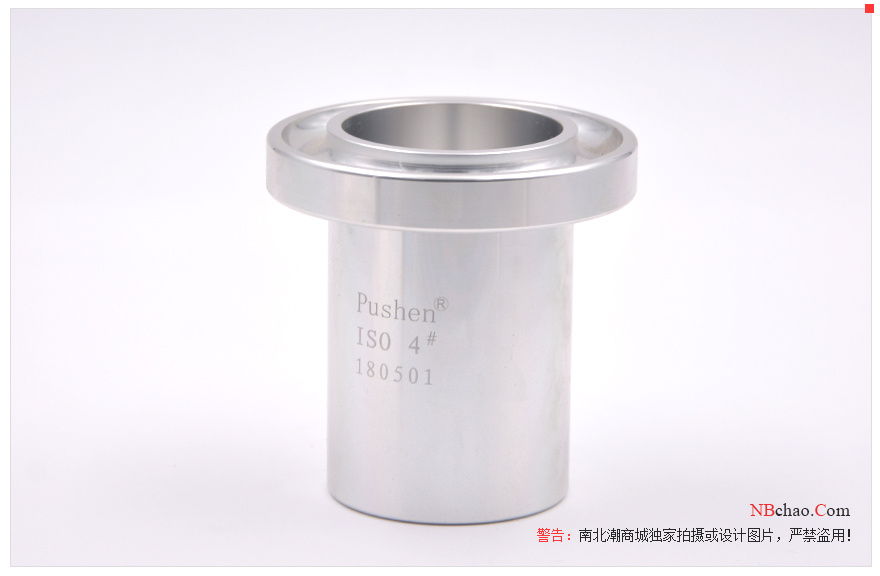

Front View of Pushen/Pushen No. 4 Paint Viscosity Cup

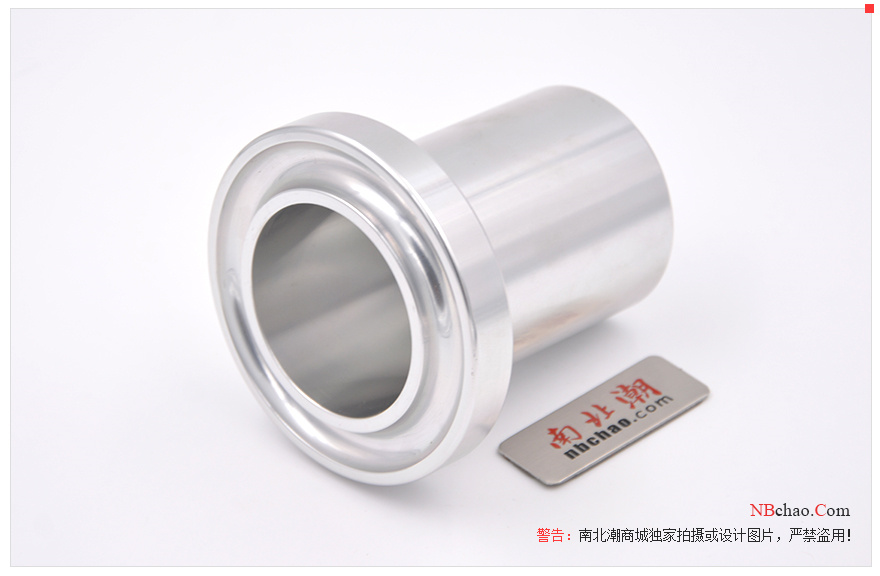

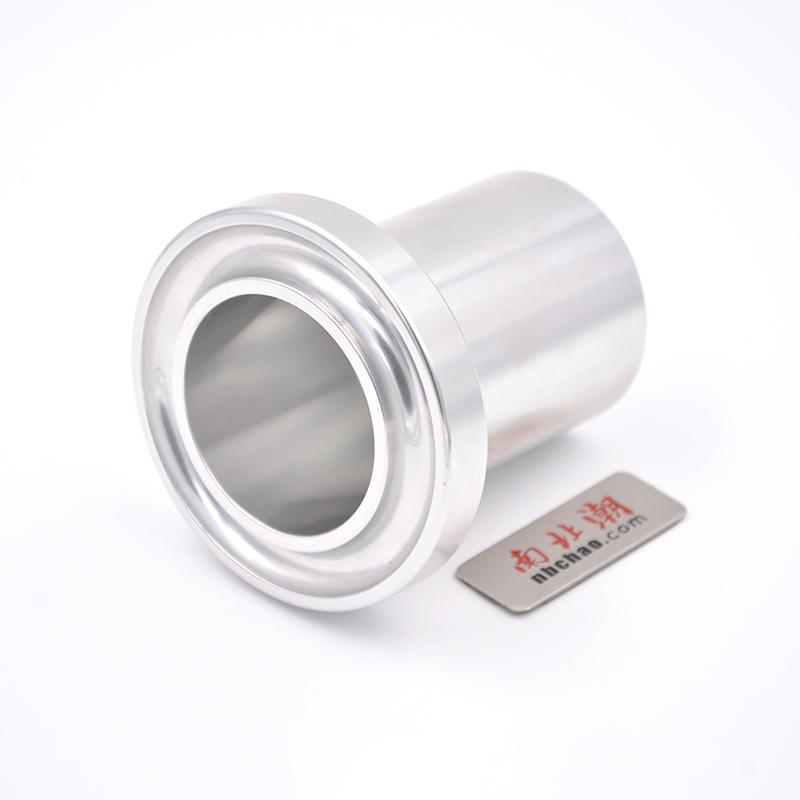

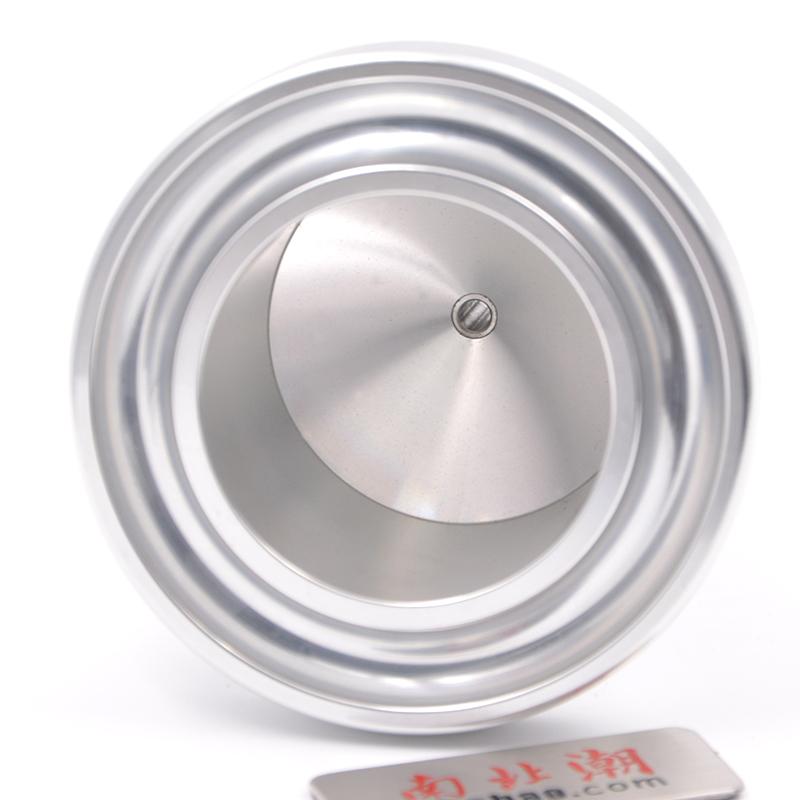

Details of Pushen/Pushen No. 4 paint Viscosity Cup

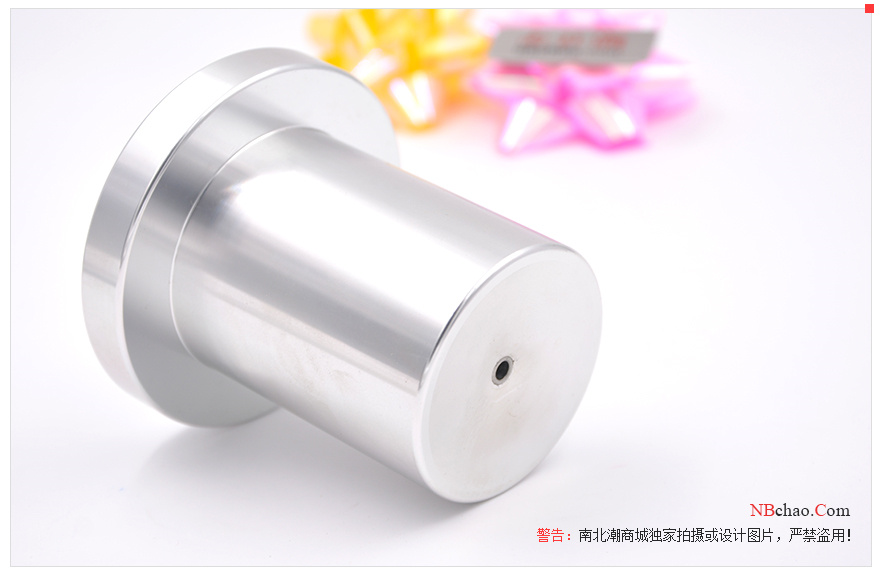

Details of outlet of Pushen/Pushen No. 4 paint Viscosity Cup

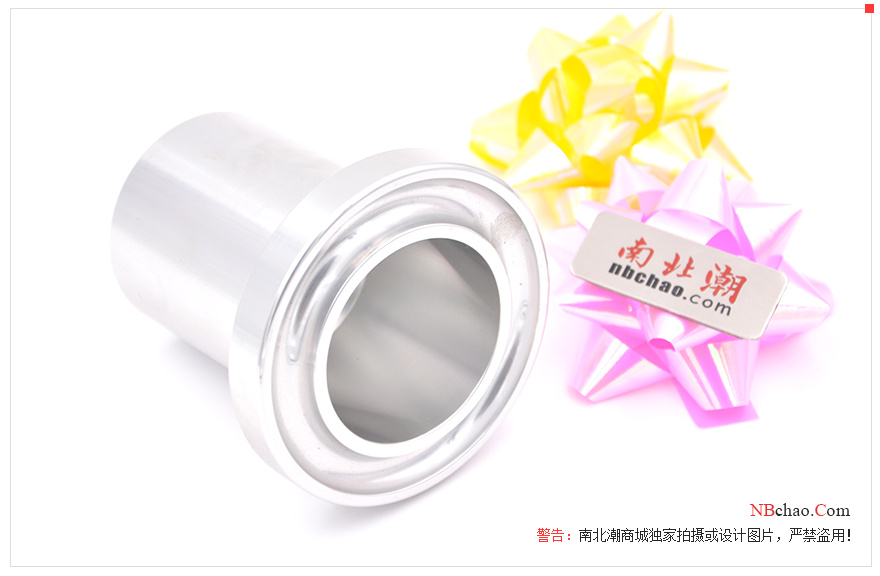

Appearance of Pushen/Pushen No. 4 Paint Viscosity Cup

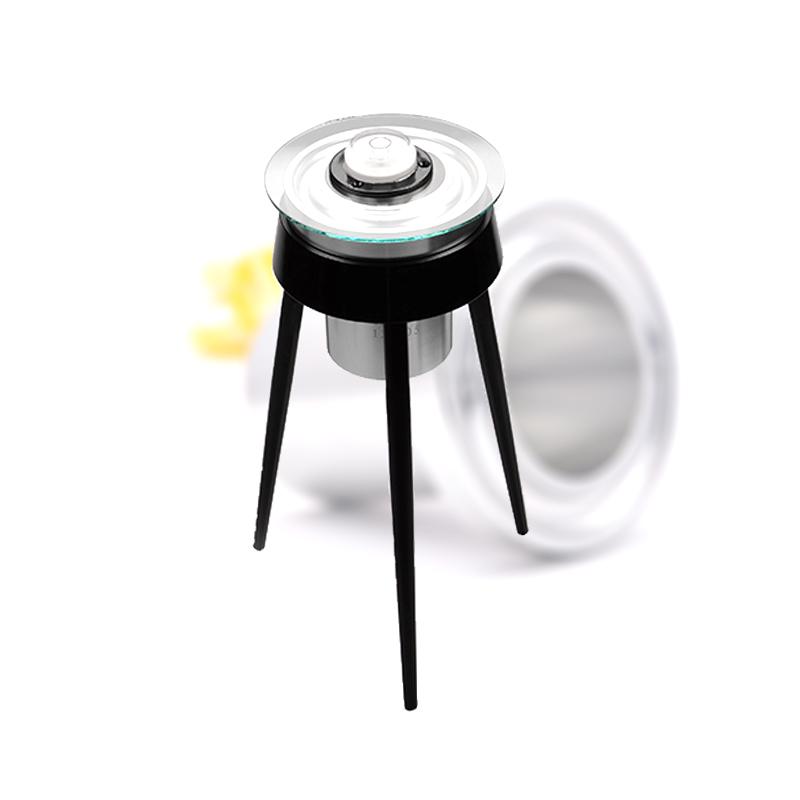

Pushhen ISO Cup Bracket Display

FAQ
QCan the PUSHEN ISO-4 #flow cup with bracket meet the ISO2431 standard?
A Applicable, you can consult the customer service of the mall for details about the ISO2431 standard.
QThe black and white two pieces should refer to a large cup and a small black matching bracket, right?
A Hello! This Pushen Ford viscosity cup meets the standard: ASTM D1200, filter diameter: 4.12mm, viscosity range: 70-370cSt, and the Ford No. 4 cup is a set (including No. 4 cup + bracket + Encasement box).
QIs the ISO No. 4 cup the same as the painted 4 cup?
A ISO4 cup is a viscosity cup produced according to ISO standards. The actual parameters of the "No. 4 cup" marked by different manufacturers of this viscosity cup are different. And the coated 4 cup is a viscosity cup produced according to the relevant standards of the national coated 4. The two are different.
QHow much is the price of the bracket in the picture?
A Hello, this bracket is matched with the cup, and the target is the price of the whole set. It will not be sold separately for the time being.
