Pushen ISO-8 #desktop Flow Cup with bracket, need to be customized

SE
The Pushen ISO-8 #Benchtop Viscosity cup is a No. 8 ISO cup with an outflow aperture of 8mm. The No. 8 Benchtop Viscosity cup is suitable for the measurement of Viscosity of Coatings, varnishes and Miscellaneous similar products.
Model：
Certificate
Contact
Details SPEC VIDEO CAT OI
Similar products

Pushen ISO-8# Flow cup with bracketSPEC

Pushen ISO-8# Flow cup with bracketDetails

Pushen ISO-8# Flow cup with bracketPacking list

SKU
NB004283
Viscosity range
7~42cSt
outflow time
30~100s
Flow hole diameter
3mm
Cup height
86mm
Cup width
56mm
Cup body material
Aluminum anode oxidation
Filter material
stainless steel
Applicable standard
ASTM D5125,ISO 2431
Certificate
without
Weight
268g
ISO-8#
Flow cup with bracket
Pushen ISO-8 #desktop Flow Cup with bracket, need to be customized Picture

ISO CupIntroduction

The PSH ISO cup is a benchtop Viscosity Cup with a stand, and five different models are designed according to different measuring apertures: No. 3, No. 4, No. 5, No. 6,No. 8 (customized), the measured aperture is 3mm, 4mm, 5mm, 6mm,8mm.The production designer of the PSH ISO Cup meets the standardASTM D 5125, ISO 2431, is a required testing instrument for laboratory testing of viscosity.

Made of anodized aluminium with a stainless steel pore size, the PSCHEN ISO cup is used to measure the viscosity of coatings, varnishes and other similar products.

Parameters

ModelOutflow Aperture (mm)Measuring range (cSt)Finish Time(s)The width of the cupCup heightweightMeets standards
wrap
Number 337-42
30-10056mm
86mm268gASTM D 5125，ISO 2431A Viscosity Cup, a holder
Number 4434-13525-100
Number 5591-32625-100
Number 66188-68425-100
Number 88--Customized

Viscosity and definition of Viscosity Cup

Viscosity: The ability of a liquid to hinder its tendency to flow is known as viscosity. For the coatings industry, viscosity is a critical parameter.

Viscosity cups: Allow a liquid to flow through the nozzle, often using this method to measure and grade its viscosity relatively.

The dynamic viscosity value is usually expressed in the number of seconds in which the flow has been completed, but it can also be converted to centistokes by the viscosity conversion dial.

Viscosity unit

The kinematic viscosity value is usually expressed in the number of seconds of the flow out, but it can also be converted to centistokes by the viscosity conversion dial.

The unit of kinematic viscosity is stokes, Stokes, when the fluid viscosity is 1P (poise), the density is 1g/cm3 and the kinematic viscosity is 1 stokes.

cSt is an abbreviation for centistokes and is called centis, i.e. one hundredth of 1 stokes. CSt is the smallest unit of kinematic viscosity.

Precautions

A stopwatch with high accuracy is required for use.

Meets standards

Coating ISO cups are made according to ASTM D 5125, ISO 2431 "Determination of Flow Time in Flow Cups" for basecoats and varnishes.

Actual picture of the product

Exterior drawing of Pushen No. 8 desktop Viscosity Cup

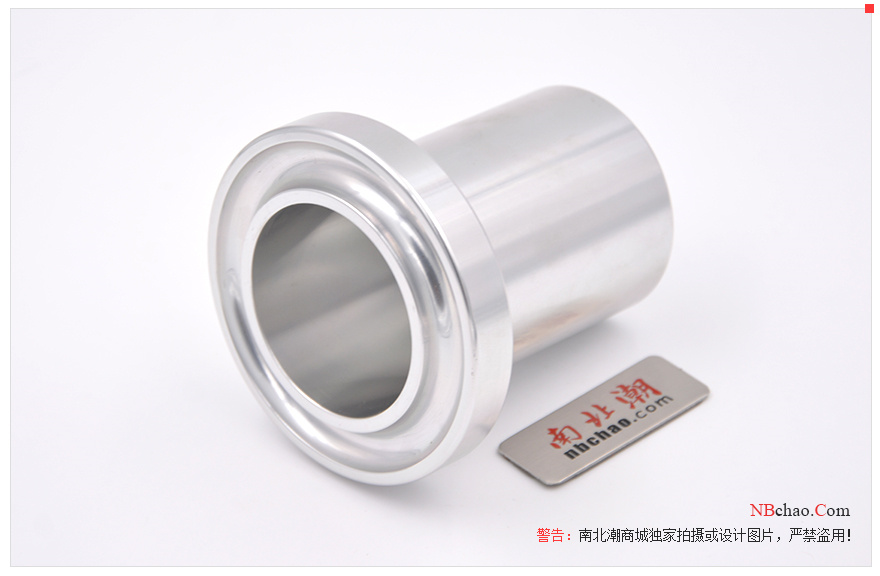

Detail drawing of Pushen No. 8 desktop Viscosity Cup

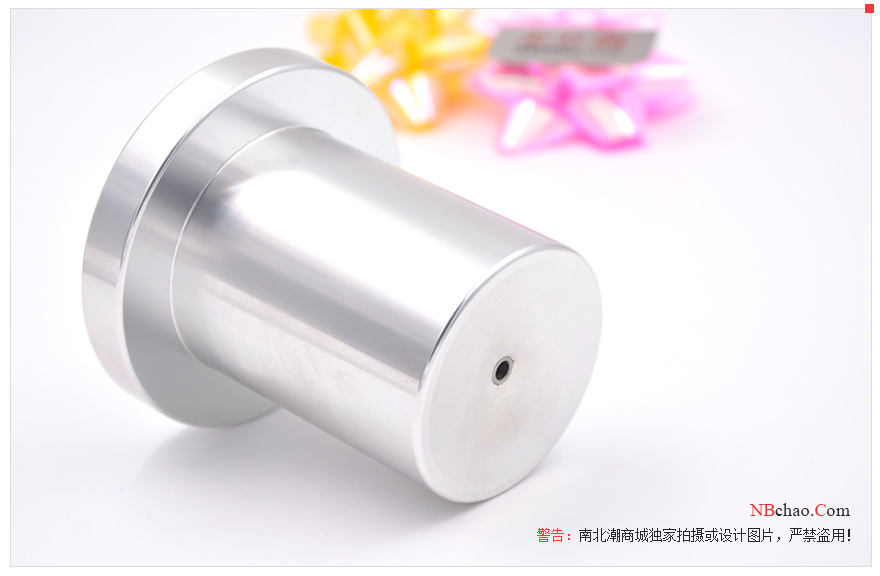

Detail of Pushen No. 8 desktop Viscosity Cup flow outlet

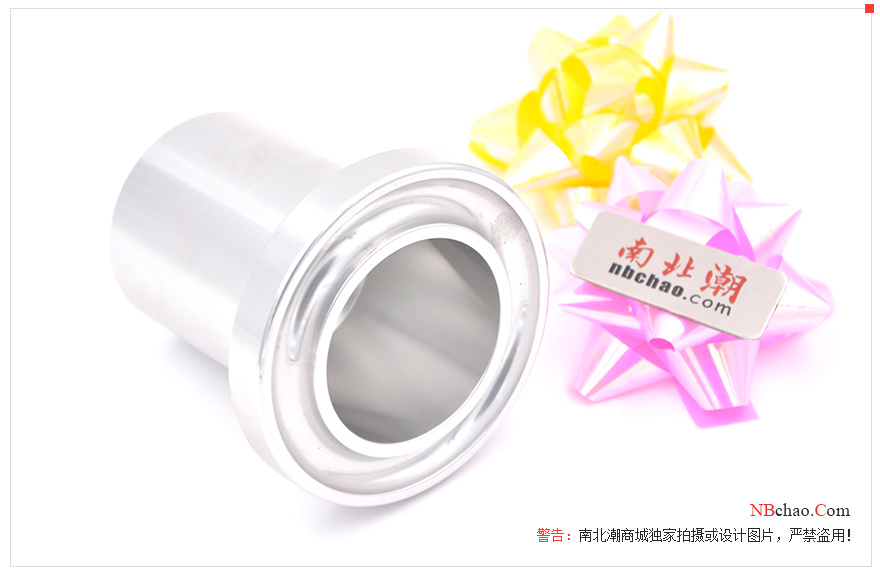

Side view of the Pushen No. 8 tabletop Viscosity Cup

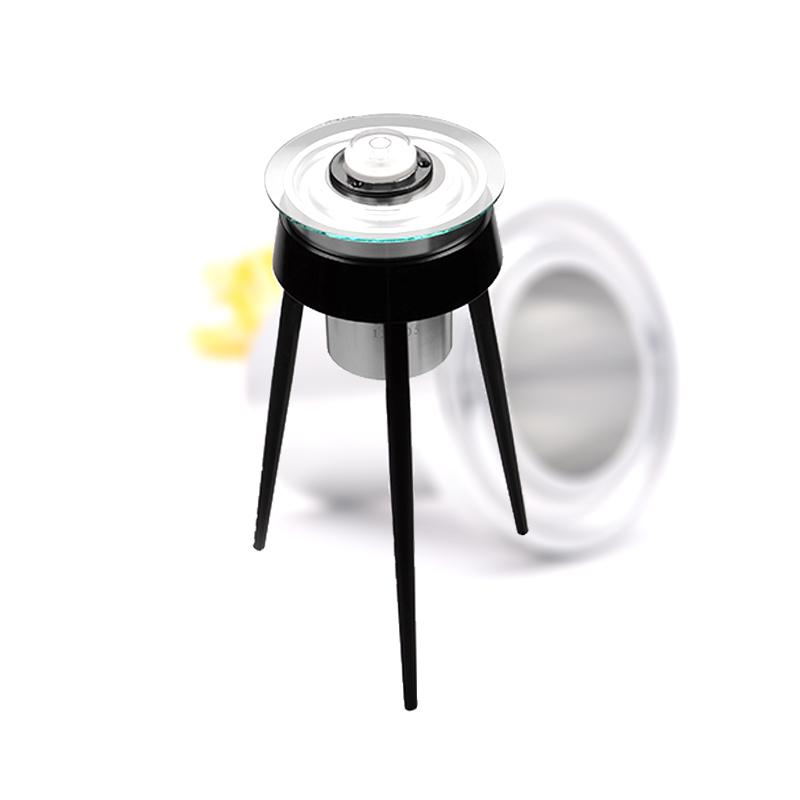

Pushen ISO cup holder display diagram

FAQ
QDoes this flow cup with bracket meet ASTMD5125 standard?
A This flow cup with bracket is suitable for ASTMD5125. Please consult customer service for detailed application definition.
QIs the node of time measurement just interrupted or no longer dripping?
A According to the definition of the measured outflow time in standard GB/T 6753.4 (1998), the calculated stop time of the stopwatch is to stop the stopwatch immediately when the flow beam of the Coating sample is interrupted "just". The time displayed by the stopwatch is the time reserved for the sample.
