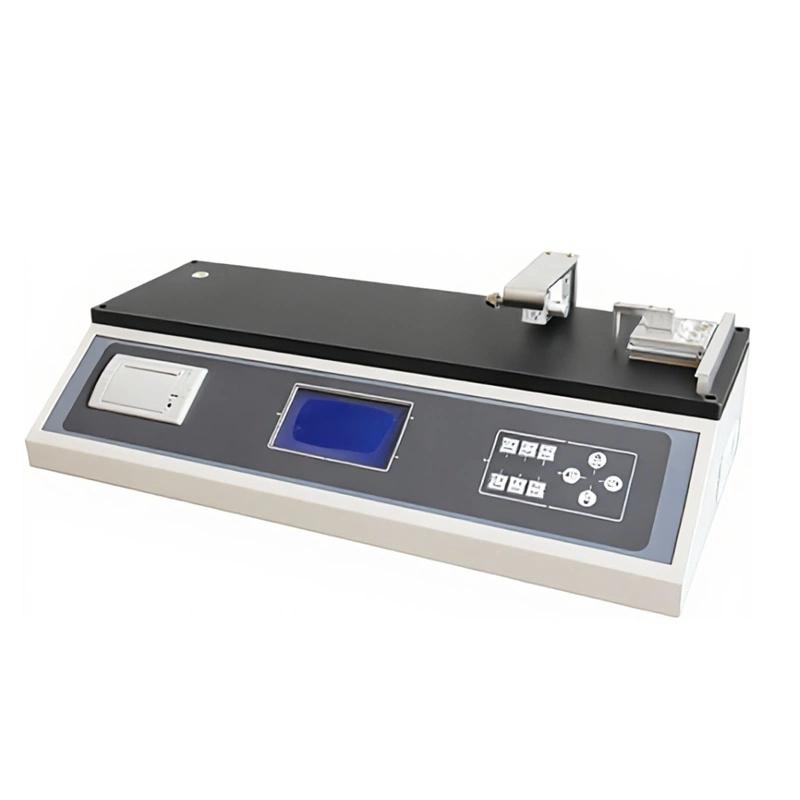

CHENCHI MXD-02 Film Friction Coefficient Meter Range 0-10N

MXD-02(0-10N)

Friction Coefficient Meter

Range 0-10N, measurement accuracy 0.001N, using high-precision imported Sensors, test stroke 0~320mm, real-time display of force Linear dispersion, equipped with micro printer data.

Introduction

MXD-02 Coefficient of Friction Tester is manufactured according to GB 10006 and ASTM D1894, and complies with national standards such as GB/T 17200, GB/T22895, ISO 8295, and TAPPI T816. Professionally suitable for measuring the static and dynamic friction coefficients of plastic films and sheets, rubber, paper, cardboard, woven bags, fabrics, metal material composite belts, conveyor belts, wood, coatings and other materials when they slide. By measuring the slipperiness of the material, it is possible to control and adjust the production quality process indicators of the material to meet the product use requirements. The 180° peel strength test of self-adhesive, release paper, protective film, tape, label and other materials can also be realized by changing the fixture.

Features

• Microcomputer control, the test process is fully automated.

• Support GB 10006, ISO 8295, ASTM D1894, TAPPI T816, GBT2792 and other standard test methods. At the same time, any non-standard test is supported.

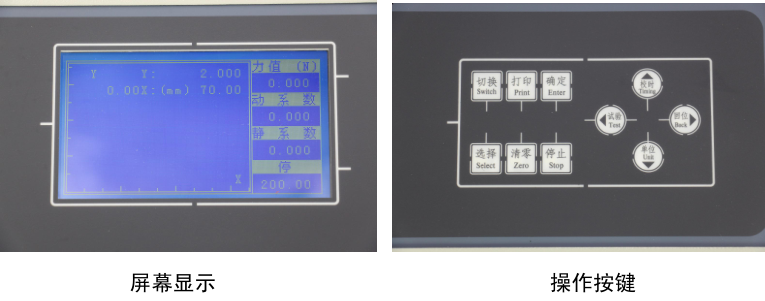

• PVC control panel, liquid crystal display results, parameters, test curves.

• High-precision imported sensors, high-precision test results, good stability and repeatability.

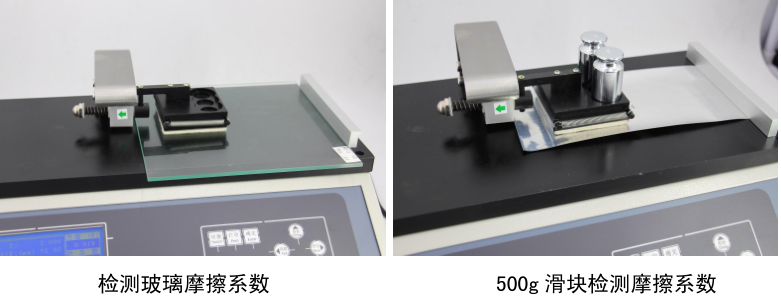

• Support for setting arbitrary slider quality tests.

• The test stroke can be set arbitrarily within 0-320mm.

• The test speed can be set arbitrarily within 0-1200mm/min.

• The whole machine has no mechanical knobs and is fully digitally controlled.

• Specially designed drive system, stable operation, no vibration, no noise.

• The force value curve is displayed in real time during the test, and the static and dynamic friction coefficients of the sample are measured at the same time.

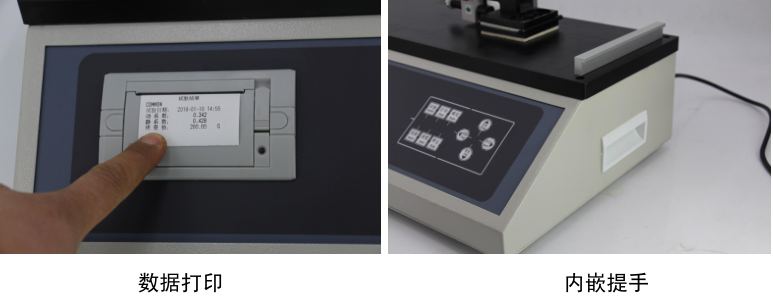

• Equipped with a micro-printer to print test reports of real-time or historical data.

• The instrument test bench and test slider have been demagnetized and detected for residual magnetism, which effectively reduces the system test error.

• Configure the standard RS232 serial communication port, use professional computer software to control the test through the computer.

Applications

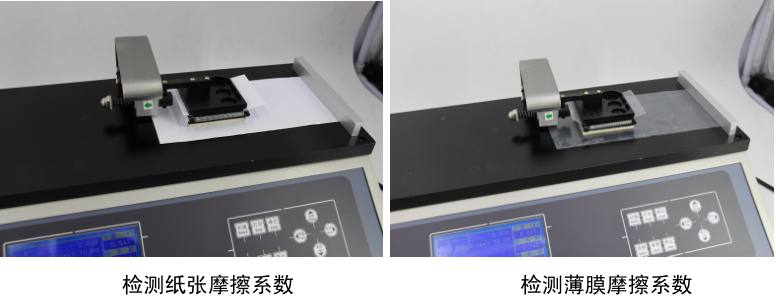

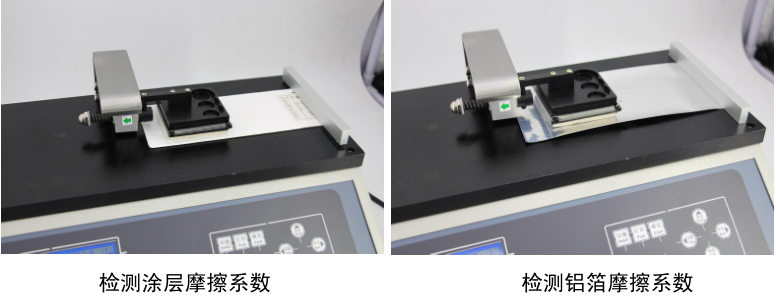

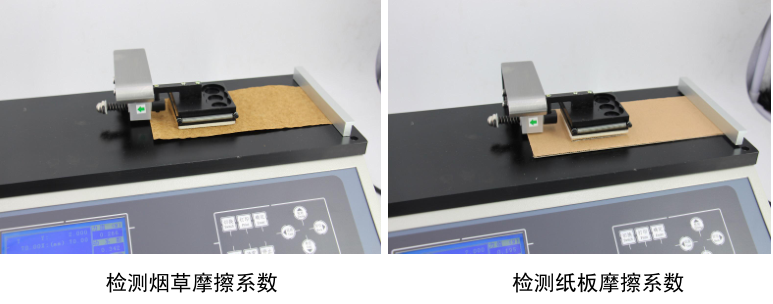

It is suitable for measuring the static and dynamic coefficients of friction when plastic films and sheets, rubber, paper, cardboard, woven bags, fabrics, metal material composite belts, conveyor belts, wood, coatings and other materials slide.

Details

Packing list：complete-built unit X1, manual X1, certificate of conformity X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
