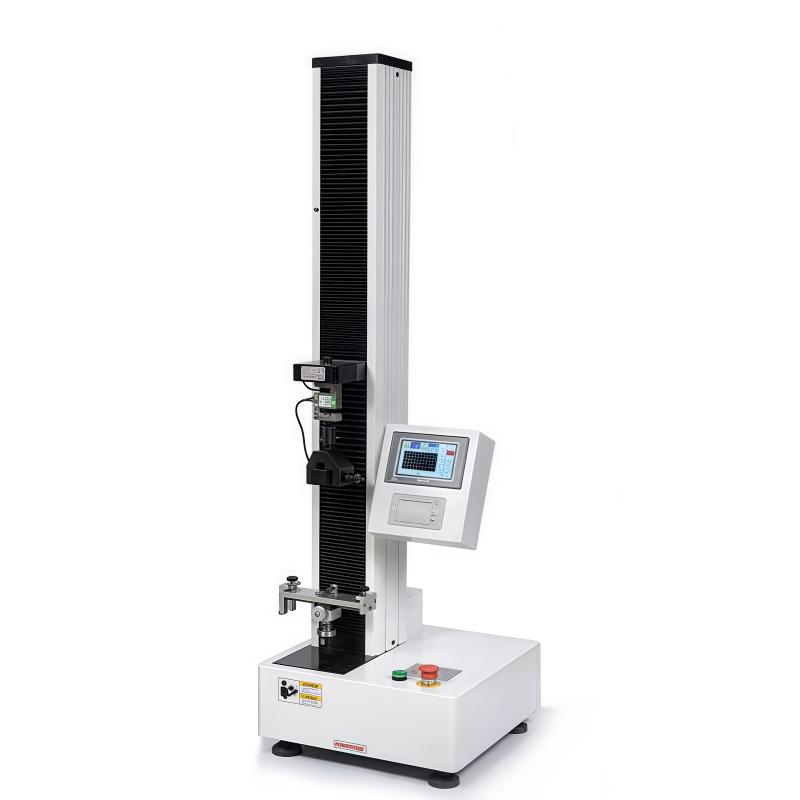

CHENCHI WDK-01 paper Tensile Strength Tester 0~ 2000N

WDK-01(2000N)

Tensile Strength Tester

Accuracy level +/- 1%, Precision control < 0.5%, Standard test force 0-2000N, 5-inch color LCD Touchscreen, can preset Test speed, sample width, sample Grammage, etc.

Introduction

This tensile Strength Tester is designed for colleges and universities and scientific research institutes. The design of the main body and auxiliary equipment of the testing machine integrates the excellent technology of our company, with beautiful appearance, convenient operation and stable and reliable performance. Wide range of adaptation and complete functions: several measuring ranges are available, making this type of instrument suitable for all paper and cardboard. It can detect the tensile strength, tensile strength, elongation, elongation, breaking length, tensile energy absorption, tensile index, tensile energy absorption index, breaking time, etc. of paper. The system controls the rotation of the servo motor through the Chenchi controller and the speed regulating system. After being decelerated by the deceleration system, it goes up and down through the precision screw and auxiliary belt beam to complete the tensile mechanical performance test of the sample. It has no pollution, low noise and high efficiency. , with a wide speed range.

Standards

GB 8808, GB/T 1040.1, GB/T 1040.2, GB/T 1040.3, GB/T 1040.4, GB/T 1040.5, GB/T 4850, GB/T 12914, GB/T 17200, GB/T 16578.1, GB/T T 7122, GB/T 2790, GB/T 2791, GB/T 2792, GB/T 17590, ASTM E4, ASTM D882, ASTM D1938, ASTM D3330, ASTM F88, ASTM F904, JIS P8113, QB/T 2358, QB /T 1130

Features

• High precision and repeatability: Using high-precision load cell, the accuracy is controlled at <0.5% when leaving the factory, which is better than ±1% of the ISO standard. Using imported stepping motor control, using new subdivision technology, the instrument has accurate positioning, fast speed response, reasonable design and precision machining to ensure high repeatability of the instrument.

• Long service life: precision ball screw drive, good machining process and reasonable design ensure that the instrument is durable. Our company's professional design and programming team can also upgrade the instrument to ensure the level of the instrument.

• Wide range of adaptation and complete functions: several measuring ranges are available, making this type of instrument suitable for all paper and cardboard. Moreover, it has complete functions: it can detect the tensile strength, tensile strength, elongation, elongation, breaking length, tensile energy absorption, tensile index, tensile energy absorption index, breaking time, etc. of paper.

• Easy to use and easy to operate: high-speed ARM processor, high degree of automation, fast data collection; 5-inch touch LCD with Chinese display, friendly man-machine interface operation. Complete the test fully automatically, with test data statistical processing function, standard micro-printer output, and can also be connected to a computer for operation. When connected to a computer, in addition to automatically memorizing and storing the results, it can also display and save the tensile curve.

• Fast and effective during testing: test speed, sample width, sample weight, etc. can be preset. The built-in force value can be converted into multiple units, and the result unit can be converted. Make testing faster and more efficient.

• Easy to measure and calibrate: the load cell is located on the top and connected to the upper chuck, and the user or the measurement and calibration department (third party) can easily calibrate the display error of the instrument by hanging the standard weight on the upper chuck.

Packing list：host X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
