Taichang TC-NZ135A Touch Screen MIT Folding Tester 0.75mm

SE
Fully automatic test, can count and print test results, folding head stitching specification 0.75mm, measurement range 1 time~ 99999 times, in line with GB and QB standards.
$1439.00/set
PromotionLoading...
Coupon
Certificate
Contact
Details SPEC Con CAT
Similar products

TaiChang Instrument TC-NZ135A (0.75mm) Touch screen folding resistance meterSPEC

TaiChang Instrument TC-NZ135A (0.75mm) Touch screen folding resistance meterDetails

TaiChang Instrument TC-NZ135A (0.75mm) Touch screen folding resistance meterPacking list

SKU
NB042850
Measurement range
1 time~ 99999 times
folding angle
135°±2°
folding speed
175 +/- 10 times/min
Tension adjustment range
4.9N～14.7N
Folding Head Stitching Specifications
0.75mm (the above four specifications are randomly equipped, 1.25mm specifications can be selected according to customers, and other special specifications can be customized according to customer requirements)
Power
AC220V 50Hz
Dimensions
305mm×380mm×420mm
Weight
About 22kg
TC-NZ135A (0.75mm)
Touch screen folding resistance meter
Fully automatic test, can count and print test results, folding head stitching specification 0.75mm, measurement range 1 time~ 99999 times, in line with GB and QB standards.

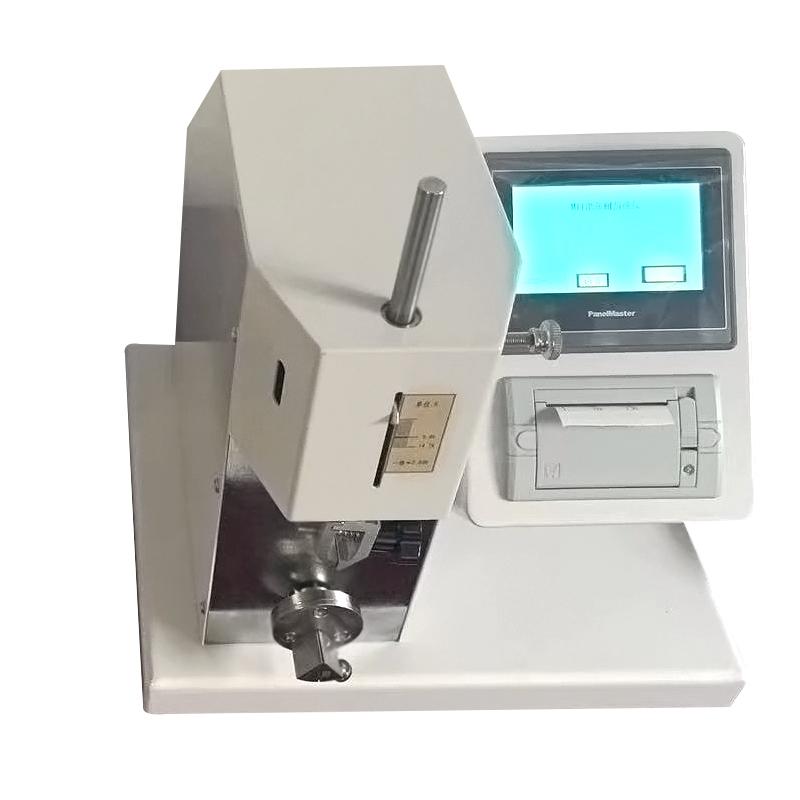

Taichang TC-NZ135A Touch Screen MIT Folding Tester 0.75mm Picture

Introduction

TC-NZ135A MIT folding Tester (also known as folding Tester, paper folding Tester, cardboard folding Tester) is used to measure the folding fatigue strength of paper, cardboard and other sheet materials with a thickness of less than 1.25mm. The main technical indicators and performance parameters of the special instrument, the paper folding Tester, comply with the relevant national standards.

Features

  • The paper folding Tester is fully computer controlled, with high degree of automation, open structure, simple and convenient operation, stable and reliable performance and high precision.

  • Paper folding Tester fully automatic test, intelligent judgment function.

  • Statistics, print test results, and has the function of saving test data.

  • Chinese graphical menu display operation interface, high-speed micro-printer.

  • Modern design concept of opto-mechanical-electrical integration, compact structure, elegant appearance and convenient maintenance .

Standards

"GB/T 2679.5 Determination of folding endurance of paper and cardboard (MIT folding endurance Tester method)"

"GB/T 457 Determination of folding endurance of paper and board"

"QB/T 1049 Paper and Cardboard Folding Tester"

"ISO 5626 Determination of crease resistance of paper "
