Taichang TC-NZ135A Touch Screen MIT Folding Tester 1mm

SE
Fully automatic test, can count and print test results, folding head stitching specification 1mm, measurement range 1 times~ 99999 times, in line with GB and QB standards.
$1439.00/set
PromotionLoading...
Coupon
Certificate
Contact
Details SPEC Con CAT
Similar products

TaiChang Instrument TC-NZ135A (1.00mm) Touch screen folding resistance meterSPEC

TaiChang Instrument TC-NZ135A (1.00mm) Touch screen folding resistance meterDetails

TaiChang Instrument TC-NZ135A (1.00mm) Touch screen folding resistance meterPacking list

SKU
NB042851
Measurement range
1 time~ 99999 times
folding angle
135°±2°
folding speed
175 +/- 10 times/min
Tension adjustment range
4.9N～14.7N
Folding Head Stitching Specifications
1.00mm (the above four specifications are randomly equipped, 1.25mm specifications can be selected according to customers, and other special specifications can be customized according to customer requirements)
Power
AC220V 50Hz
Dimensions
305mm×380mm×420mm
Weight
About 22kg
TC-NZ135A (1.00mm)
Touch screen folding resistance meter
Fully automatic test, can count and print test results, folding head stitching specification 1mm, measurement range 1 times~ 99999 times, in line with GB and QB standards.

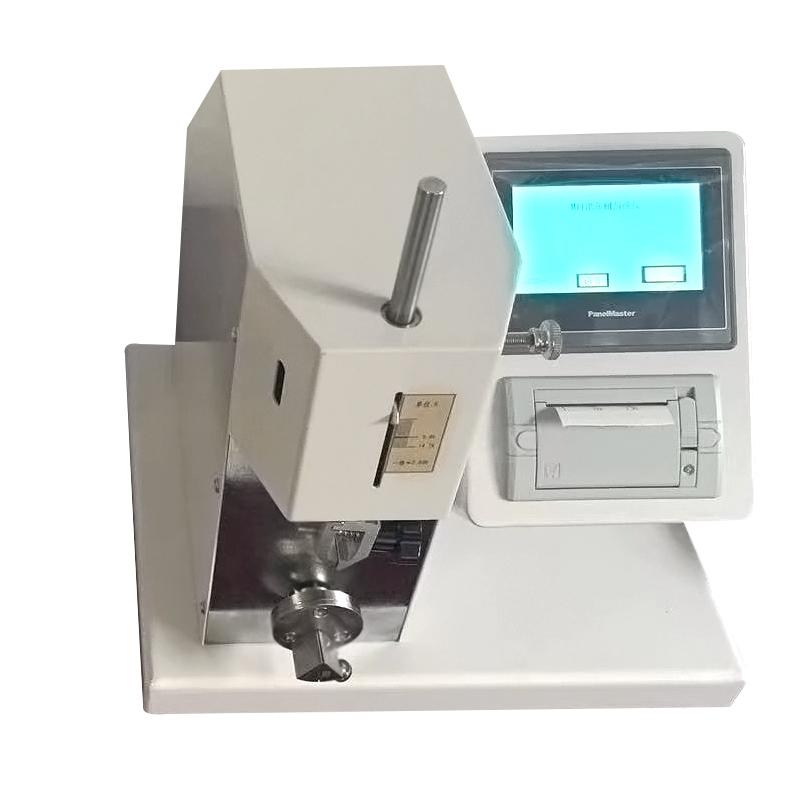

Taichang TC-NZ135A Touch Screen MIT Folding Tester 1mm Picture

Introduction

TC-NZ135A MIT folding Tester (also known as folding Tester, paper folding Tester, cardboard folding Tester) is used to measure the folding fatigue strength of paper, cardboard and other sheet materials with a thickness of less than 1.25mm. The main technical indicators and performance parameters of the special instrument, the paper folding Tester, comply with the relevant national standards.

Features

  • The paper folding Tester is fully computer controlled, with high degree of automation, open structure, simple and convenient operation, stable and reliable performance and high precision.

  • Paper folding Tester fully automatic test, intelligent judgment function.

  • Statistics, print test results, and has the function of saving test data.

  • Chinese graphical menu display operation interface, high-speed micro-printer.

  • Modern design concept of opto-mechanical-electrical integration, compact structure, elegant appearance and convenient maintenance .

Standards

"GB/T 2679.5 Determination of folding endurance of paper and cardboard (MIT folding endurance Tester method)"

"GB/T 457 Determination of folding endurance of paper and board"

"QB/T 1049 Paper and Cardboard Folding Tester"

"ISO 5626 Determination of crease resistance of paper "

FAQ
QI want to test the folding resistance of paper with a thickness of about 1mm. Which instrument should I choose?
A Recommend Taichang Instrument's TC-NZ135A folding resistance instrument, which is specially used to test paper and Cardboard below 1.25mm, equipped with 1.00mm folding mouth crevice, which meets your needs and supports national standards. The test results are accurate and reliable.
QOur laboratory needs to do Cardboard fatigue test, is this instrument suitable?
A The TC-NZ135A folding resistance tester is widely used in the folding strength test of paper, Cardboard and other sheet materials. The folding angle is 135 ° and the speed is 175 times/minute. It can simulate the repeated folding situation in actual use and help you evaluate the durability performance of the material.
QDoes the instrument have automation and data saving capabilities?
A Yes, this instrument is fully computer-controlled, fully automatic testing, and can intelligently judge results. It also has statistical, printing, and data saving functions. The Chinese menu is easy to operate, making your testing more worry-free and data management more convenient.
QI want to measure the folding resistance of paper with a thickness of about 1mm. Which instrument should I use?
A TC-NZ135A folding resistance instrument can measure paper Cardboard below 1.25mm, folding mouth seam distance 1.00mm just match, automatic test can also directly print results, especially worry-free operation.
QQuality control of our paper factory needs to measure folding resistance. Is this instrument suitable?
A This folding resistance instrument fully complies with the national GB/T 2679.5 and other standards, the spring tension can be adjusted 4.9~ 14.7N, can simulate the real situation of paper repeated folding, computer control performance is stable, especially suitable for factory batch testing.
