TIANMA UPTM-A20 desktop ultra-pure water machine, water production 20L/H

SE
Low-end ultra-pure water machine, can produce UP water and RO water at the same time, with a water production capacity of 20L/H, automatic regular flushing, instant water intake of 1.2L/min, automatic water intake, suitable for biological research, Quality control, etc.
$798.00/set
PromotionLoading...
Coupon
Certificate
Contact
Details SPEC Con CAT

TianMa UPTM-A20 (desktop) Ultrapure water machineSPEC

TianMa UPTM-A20 (desktop) Ultrapure water machineDetails

TianMa UPTM-A20 (desktop) Ultrapure water machinePacking list

SKU
NB042856
Inlet source
City tap water TDS < 200ppm, when TDS > 200PPM, a water softener is required
Flow Rate
20L/H
Instant water withdrawal
1.2L/min (optional high Voltage barrel)
effluent quality
UPS Electrical resistivity > 10MΩ · cm@25 ℃; RO conductivity 2~ 10us/cm
water pressure
0.1~0.3Mpa
Micro particulate matter (PM)
<1/ml(＞0.22um)
Heavy metals ions
＜0.2ppb
Inlet source
General city tap water
inlet pressure
Water pressure 1~ 4kg/cm ², water temperature 5-45 ℃
Power
220V/50HZ, noise < 40dB
Dimensions
280x460x450mm
Rated Power
50W
Weight
15kg
UPTM-A20 (desktop)
Ultrapure water machine
Low-end ultra-pure water machine, can produce UP water and RO water at the same time, with a water production capacity of 20L/H, automatic regular flushing, instant water intake of 1.2L/min, automatic water intake, suitable for biological research, Quality control, etc.

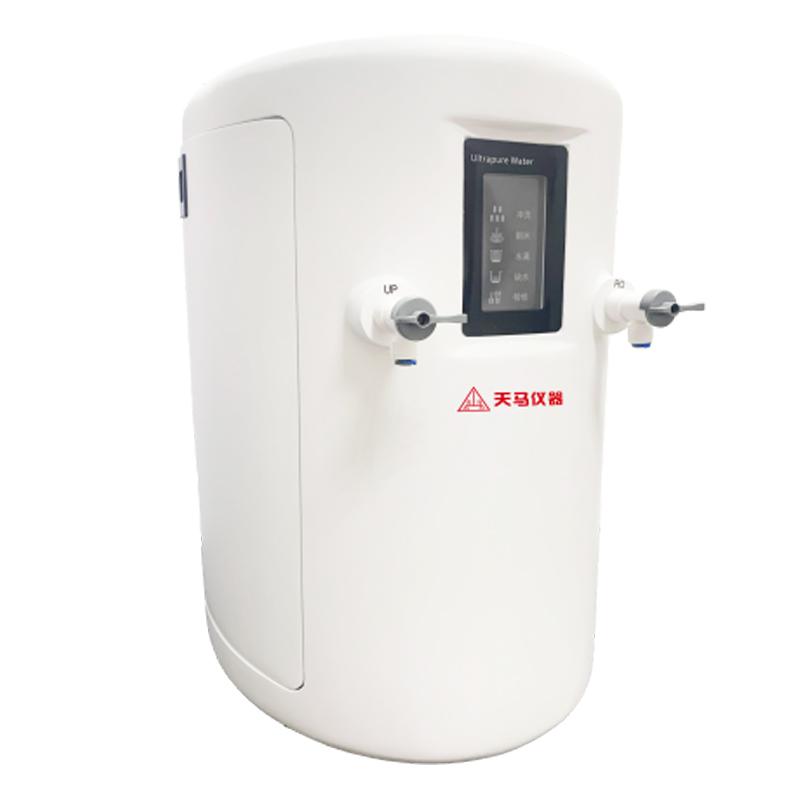

TIANMA UPTM-A20 desktop ultra-pure water machine, water production 20L/H Picture

Introduction

UPTM-A20 Ultrapure Water System is suitable for quality inspection institutes, drug inspection institutes, biochemical instruments, chemical plants, colleges and universities, biological research, environmental monitoring and conventional laboratories with small water consumption and low water frequency.

Features

  • All-plastic shell, molded in one go

  • Microcomputer controlled LED color screen display, fully automatic water production

  • Dual water outlet, can output UP water and RO water at the same time

  • Real-time display of flushing, water production, water full, water shortage, and maintenance status

  • Automatic scheduled flushing, self-protection from water shortage

  • Automatically starts when water is taken, automatically shuts down when no water is needed

  • Quick connector imported from Taiwan, CHINA, easy to plug and pull out

  • Fully enclosed pipeline design to maintain stable water quality at all times

Process flow

Tap water → PP filter → granular activated carbon → sintered activated carbon → booster pump → RO reverse osmosis membrane → high pressure barrel → ultrapurification column → ultrapure water

Quality Assurance

  • American Rohm and Haas nuclear grade mixed bed column

  • American Fluid FCS Company RO Membrane

  • Delta high pressure silent pure water pump

  • American KFLOW company automatic control system

  • RO pipe, quick connector: Taiwan, CHINA CCK

FAQ
QOur laboratory does not use much water, mainly for routine testing. Do you want to choose a cost-effective ultra-pure water machine?
A The UPTM-A20 desktop ultrapure water machine is recommended, which is especially suitable for laboratories with low water consumption and low Frequency. This one adopts a fully automatic water production design, and the double outlet can provide RO water and UP water at the same time to meet different experimental needs. Fully enclosed pipelines and imported filter elements can ensure stable water quality and high cost performance.
QThe water consumption in the laboratory is not large, and it is mainly used for routine chemical analysis. Is there any suitable ultra-pure water machine recommended?
A Tianma UPTM-A20 ultra-pure water machine is specially designed for laboratories with low water consumption and low Frequency. It produces 20 liters of water per hour, which can fully meet the needs of conventional chemical analysis. Using RO reverse osmosis (RO) + ultra-purified column two-stage purification, the water resistivity is > 10MΩ · cm, which can effectively remove heavy metals ions and particulate matter (PM) to ensure the accuracy of the experiment.
