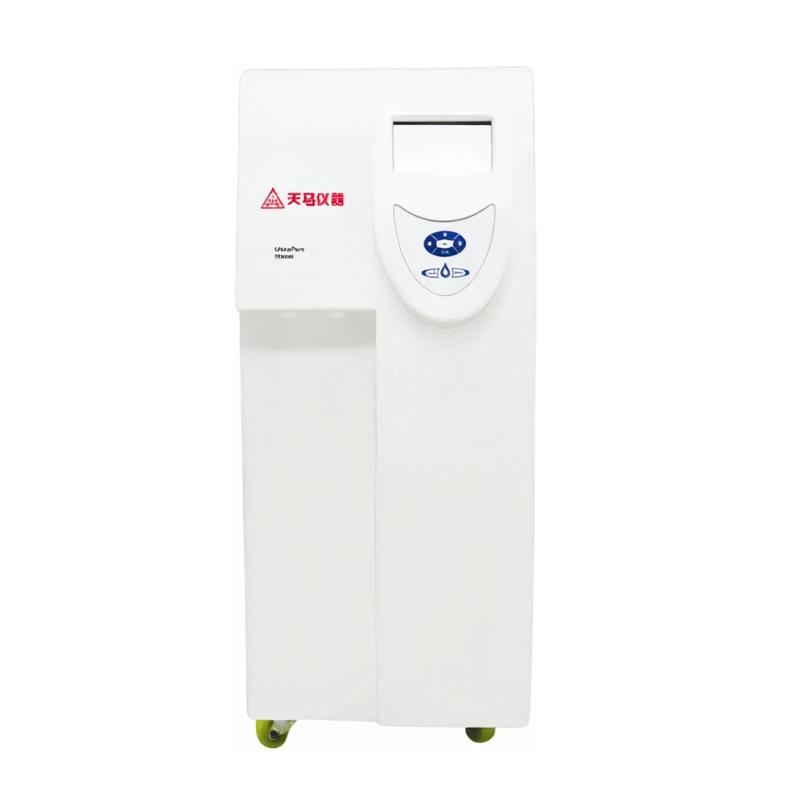

TIANMA UPTM-B80 Vertical ultrapure water mechanism Water volume 80L/H

UPTM-B80 (Vertical)

Ultrapure water machine

Touch conventional ultra-pure water machine, water production capacity 80L/H, ultra-pure water 1.2L/min, regular automatic circulation, automatic reminder when consumables expire, regular quantitative water intake, standard one-click disinfection function components.

Introduction

UPTM-B80 Ultrapure Water System is suitable for standard laboratories such as liquid chromatography, gas chromatography, atomic absorption, quality inspection institutes, drug inspection institutes, biochemical instruments, chemical plants, colleges and universities, biological research, environmental protection testing, effective scientific research, etc. ; Semiconductor components, integrated circuit development, circuit board printing and other workshops or university laboratory buildings that use a large amount of ultrapure water.

Features

• 5.1-inch large-screen LCD Chinese display, real-time display of operating status

• Three-way water quality and temperature display of incoming water, RO water and UP water realize online monitoring

• Regular automatic circulation maintains stable water quality at all times, effectively extending the service life of ultrapure water bags

• Chinese and English language selection function to facilitate language usage habits

• The lifespan of pretreatment, RO membrane, UV lamp and ultrapure water pack can be set arbitrarily, and the usage and remaining time of consumables can be displayed.

• The circulation system can be started and closed freely to extend the life of the ultrapure water package.

• Automatic reminders for expiration of consumables to avoid deterioration in water quality

• The system sets password protection function to prevent unauthorized changes to data

• Timing and quantitative water intake function

• The standard one-click disinfection functional component enables rapid disinfection of RO membranes, circulation pipelines, and Water Tanks, ensuring extremely low bacterial contamination levels in the system.

• RS-232 communication module, can be connected to printer. Print water quality report (optional)

• Remote water intake system (optional)

• Full plastic shell, never rust

Process flow

Tap water → PP filter → granular activated carbon → sintered activated carbon → booster pump → RO reverse osmosis membrane → pressure tank → ultrapurification column → dual-wavelength UV lamp (optional) → terminal filter (optional) → ultrapure water

Quality Assurance

• American Rohm and Haas nuclear grade mixed bed column

• American Fluid FCS Company RO Membrane

• Delta high pressure silent pure water pump

• American KFLOW company automatic control system

• RO pipe, quick connector: Taiwan, CHINA CCK

Packing list：machine X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
