CHINA ASR-5647 FPC folding Tester, flexible circuit board test

It is used for the flexure test of the circuit board with flexure resistance, 1 test station, 10~180 degree test angle, touch screen operation, and manual adjustment of the test stroke of 45~ 100mm.
Model：
Certificate
Contact
Details SPEC CATCAT
Similar products

AISRY ASR-5647 FPC folding testing machineSPEC

AISRY ASR-5647 FPC folding testing machineDetails

AISRY ASR-5647 FPC folding testing machinePacking list

SKU
NB042953
folding angle
10~180 degrees (touch screen digital setting)
Test station
1
Test speed
10-200 times/min (touch screen digital setting; stepper motor 60 times limit speed; servo motor up to 120 times limit speed)
Maximum width and opening width of test fixture
100mm
Number of trials Counter
0~999999 times (the touch screen number can be preset, and the number of times reached and the product is broken will automatically stop)
Machine size (L × W × H)
450×380×700mm
Machine Weight
About 45kg
Power
AC220V、50HZ
ASR-5647
FPC folding testing machine
It is used for the flexure test of the circuit board with flexure resistance, 1 test station, 10~180 degree test angle, touch screen operation, and manual adjustment of the test stroke of 45~ 100mm.

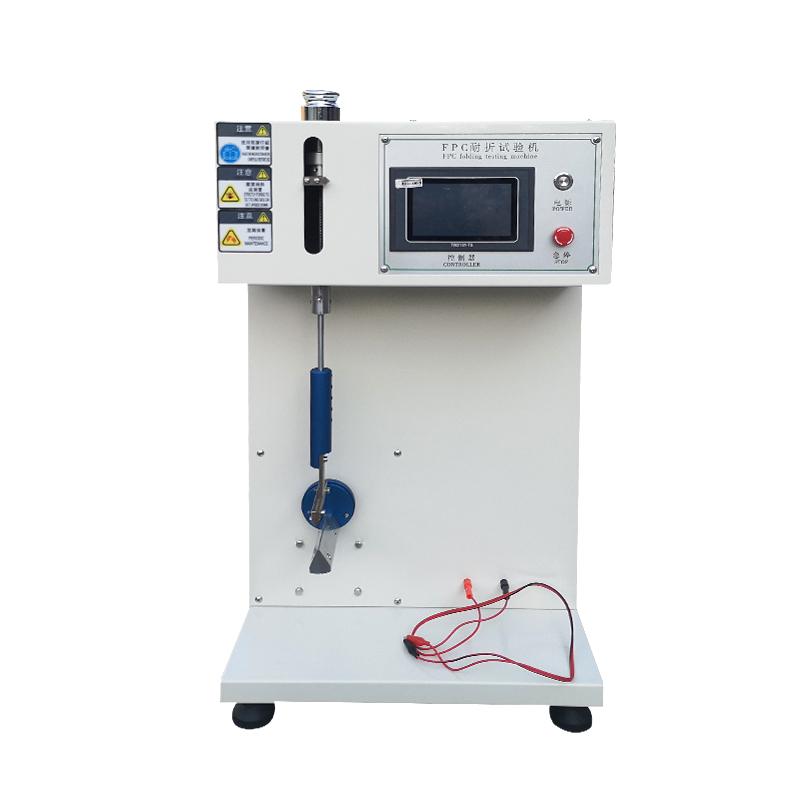

CHINA ASR-5647 FPC folding Tester, flexible circuit board test Picture

Introduction

This machine is mainly used for flexing test of circuit boards (commonly known as flexible circuit boards) with flexing resistance; such as mobile phones, PDAs, electronic dictionaries, laptops and other electronic products such as FPC soft boards for flexing resistance and flexing life testing tests.

Features

1. The machine is driven by a stepping motor, with high-precision positioning, low noise, and can be used for a long time;

2. Program-controlled origin reset, no need to align the fixture to the original position by hand;

3. The machine uses a touch screen display controller for program input;

4. The test angle, speed, number of tests, and the return of the motor to the origin can be set and counted automatically. When the product is bent to a broken line and cannot be powered on, it can automatically stop the operation.
