TAISITE WGL-65D digital Electric Forced Air Drying Oven capacity 65L

SE
Temperature control 300 ℃, inner size 400 * 360 * 450mm, digital tube dual-row PID temperature control, touch four buttons to set, 4-digit digital display temperature value, support 8-layer Shelf, vertical double air duct air sleeve.
Model：
Certificate
Contact
Details SPEC CAT
Similar products

TaiSiTe WGL-65D Electric Forced Air Drying OvenSPEC

TaiSiTe WGL-65D Electric Forced Air Drying OvenDetails

TaiSiTe WGL-65D Electric Forced Air Drying OvenPacking list

SKU
NB043000
way
Double duct forced convection
Temperature range
RT+10~300°C
Temperature Resolution
0.1℃
Temperature Fluctuation
±1.0℃
Temperature Uniformity
±2.0%
Interior
Mirror stainless steel plate
Exterior
Cold rolled steel plate, surface resistance painting
Thermal insulation material
aluminum silicate fiber
heater
Stainless steel heating tube
Rated power
1.6KW
Exhaust port
Inner diameter 28mm * 1, top
Temperature Control mode
Digital tube dual row PID
Temperature setting
Tap the four-button settings
Temperature representation
Type D: Measured temperature display: 4-digit digital upper display; set temperature display: 4-digit digital lower display
Timer
0~9999 minutes (with Timer and waiting function)
Run function
Fixed-value operation, regular operation, automatic stop, scheduled start
Program Mode
optional
Additional features
Deviation correction, menu button lock, power outage compensation, power outage memory
Sensors
Pt100
Inner size
400 * 360 * 450mm (W * D * H)
Dimensions
518 * 550 * 860mm (W * D * H)
Packing size
642 * 628 * 980mm (W * D * H)
Inner Volume
65L
Shelf load bearing
15kg
Shelf Layers
8th floor
Shelf spacing
40mm
Power
(50/60Hz) Rated current AC220V/7.2A
WGL-65D
Electric Forced Air Drying Oven
Temperature control 300 ℃, inner size 400 * 360 * 450mm, digital tube dual-row PID temperature control, touch four buttons to set, 4-digit digital display temperature value, support 8-layer Shelf, vertical double air duct air sleeve.

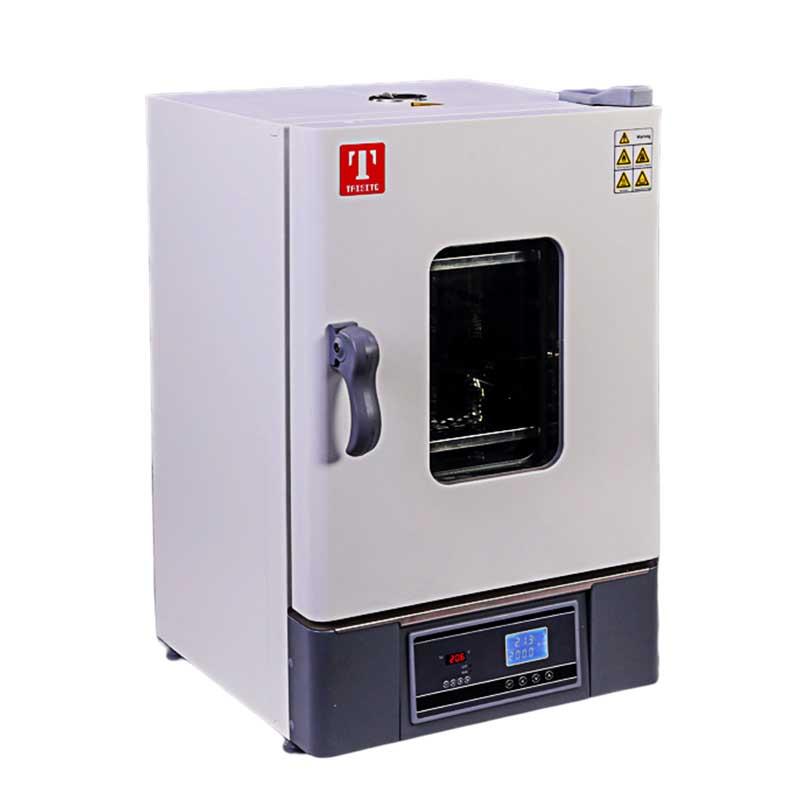

TAISITE WGL-65D digital Electric Forced Air Drying Oven capacity 65L Picture

Features

  • Adopt PID intelligent temperature control, quickly reach the set value, and run stably.

  • Convenient operation, fixed value operation, timing operation, automatic stop, scheduled start.

  • Dedicated function keys for temperature setting.

  • Auxiliary menu to realize overheating alarm, deviation correction and menu lock.

  • Vertical double air duct air jacket, centrifugal forced air supply from the turbine, more uniform temperature.

  • A variable speed fan enables light, fine, powdery samples to be used.

  • Forced fan heat dissipation and air intake structure, so that the maximum operating temperature of the fan is <50C for long-term and long-life operation.

  • Insulated door technology, the outer door temperature is low when used in high temperature state, no deformation.

  • Pull-out tray partition design scheme, convenient and quick to take and place samples.

  • The self-developed digital display overheating preventer makes the temperature control more accurate, stable, safe and reliable. (optional)

  • Overheating alarm, menu lock, overheating prevention. (optional)

Patent No

  • ZL201630486063.2

  • ZL201320059701.3

  • ZL201921000740.X

  • ZL201920940767.0

  • ZL201921001075.6

FAQ
QOur laboratory needs to do material drying, which drying oven should we choose?
A WGL-65D electric air blowing dryer adopts PID intelligent temperature control and vertical double air duct design. Temperature uniformity is good, suitable for experiments that require a stable temperature environment such as material drying. 65L capacity and 8-layer shelf can also meet the processing needs of batch samples.
