TAISITE WGL-625L Liquid crystal Electric Forced Air Drying Oven Volume 625L

SE
Temperature control 300 ℃, inner size 660 * 760 * 1250mm, LCD dual-column PID temperature control, touch four buttons to set, LCD upper display temperature value, support 17 layers of Shelf, upper air duct rotary air supply.
Model：
Certificate
Contact
Details SPEC CAT

TaiSiTe WGL-625L Electric Forced Air Drying OvenSPEC

TaiSiTe WGL-625L Electric Forced Air Drying OvenDetails

TaiSiTe WGL-625L Electric Forced Air Drying OvenPacking list

SKU
NB043011
Convection mode
Upper air duct rotary air supply
Temperature range
RT+10~300°C
Temperature Resolution
0.1℃
Temperature Fluctuation
±1.0℃
Temperature Uniformity
±2.0%
Chamber material
Mirror stainless steel plate
Enclosure Material
Cold rolled steel plate, surface resistance painting
Thermal insulation material
aluminum silicate fiber
Heating mode
Stainless steel heating tube
Rated power
5.0KW
Exhaust port
Inner diameter 28mm * 2, top
thermostat
Liquid crystal dual row PID
Temperature setting
Tap the four-button settings
Temperature representation
L type: measured temperature display: liquid crystal upper display; set temperature display: liquid crystal lower display
Timer
0~9999Min (with Timer waiting)
Run function
Fixed-value operation, regular operation, automatic stop, scheduled start
Program Mode
optional
Additional features
Deviation correction, menu button lock, power outage compensation, power outage memory, overlift preventer, constant speed fan
Temperature sensor
pt100
Interior size
660760*1250mm
Dimensions
900 * 960 * 1840mm (W * D * H)
Packing size
1051*1060*1949mm
Volume
625L
Shelf load bearing
15kg
Shelf Layers
7th floor
Shelf spacing
150mm
Power
(50/60Hz) Rated current AC380V/7.6A
Optional accessories
Shelf, RS485 interface, printer, recorder, external communication, remote control, programmed temperature control, wireless SMS alarm, U disk data storage
WGL-625L
Electric Forced Air Drying Oven
Temperature control 300 ℃, inner size 660 * 760 * 1250mm, LCD dual-column PID temperature control, touch four buttons to set, LCD upper display temperature value, support 17 layers of Shelf, upper air duct rotary air supply.

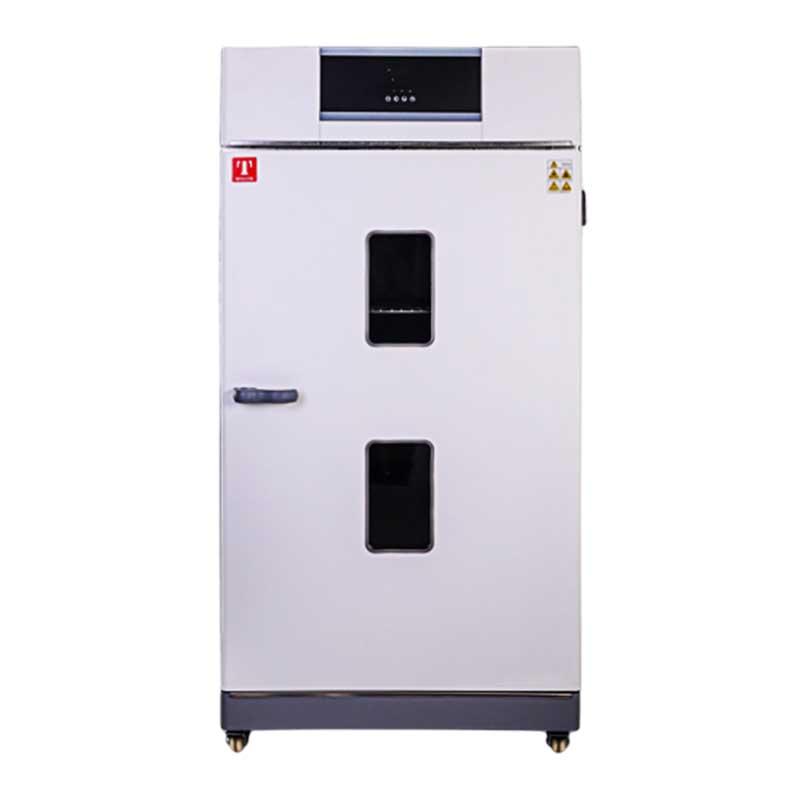

TAISITE WGL-625L Liquid crystal Electric Forced Air Drying Oven Volume 625L Picture

Features

  • Adopt PID intelligent temperature control, quickly reach the set value, and run stably.

  • Convenient operation, fixed value operation, timing operation, automatic stop, scheduled start.

  • Dedicated function keys for temperature setting.

  • Auxiliary menu to realize overheating alarm, deviation correction and menu lock.

  • Vertical double air duct air jacket, centrifugal forced air supply from the turbine, more uniform temperature.

  • A variable speed fan enables light, fine, powdery samples to be used.

  • Forced fan heat dissipation and air intake structure, so that the maximum operating temperature of the fan is <50C for long-term and long-life operation.

  • Insulated door technology, the outer door temperature is low when used in high temperature state, no deformation.

  • Pull-out tray partition design scheme, convenient and quick to take and place samples.

  • The self-developed digital display overheating preventer makes the temperature control more accurate, stable, safe and reliable.

  • Overheating alarm, menu lock, overheating prevention.

  • L-shaped LCD multi-data full-screen operation display, power failure memory, power failure compensation.

Patent No

  • ZL201630486063.2

  • ZL201320059701.3

  • ZL201921000740.X

  • ZL201920940767.0

  • ZL201921001075.6


FAQ
QI need a drying oven for drying laboratory materials at a uniform and stable temperature. What do you recommend?
A WGL-625L electric air blowing dryer adopts PID intelligent temperature control to quickly and stably reach the set temperature, vertical double air duct and turbine centrifugal forced air supply ensure uniform temperature distribution, suitable for drying laboratory materials, to avoid local overheating affecting sample mass.
QDrying oven needs regular automatic stop and anti-overheating, what model can meet?
A WGL-625L has the function of regular operation and automatic stop, and can be set for up to 9999 minutes. There are also over-rise preventer and over-rise alarm, which can monitor the temperature in real time to prevent over-temperature damage to the sample.
