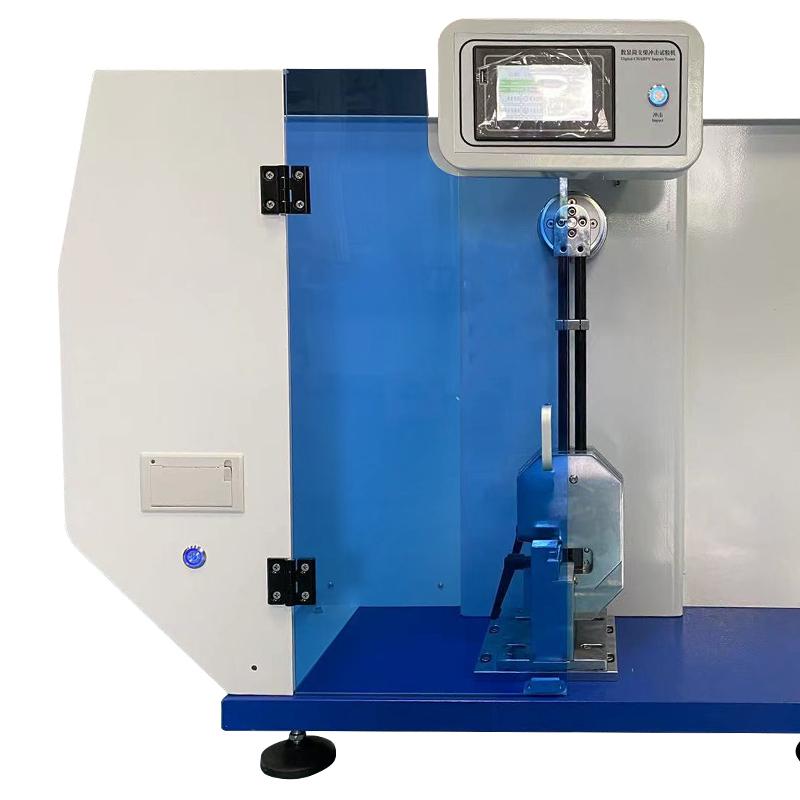

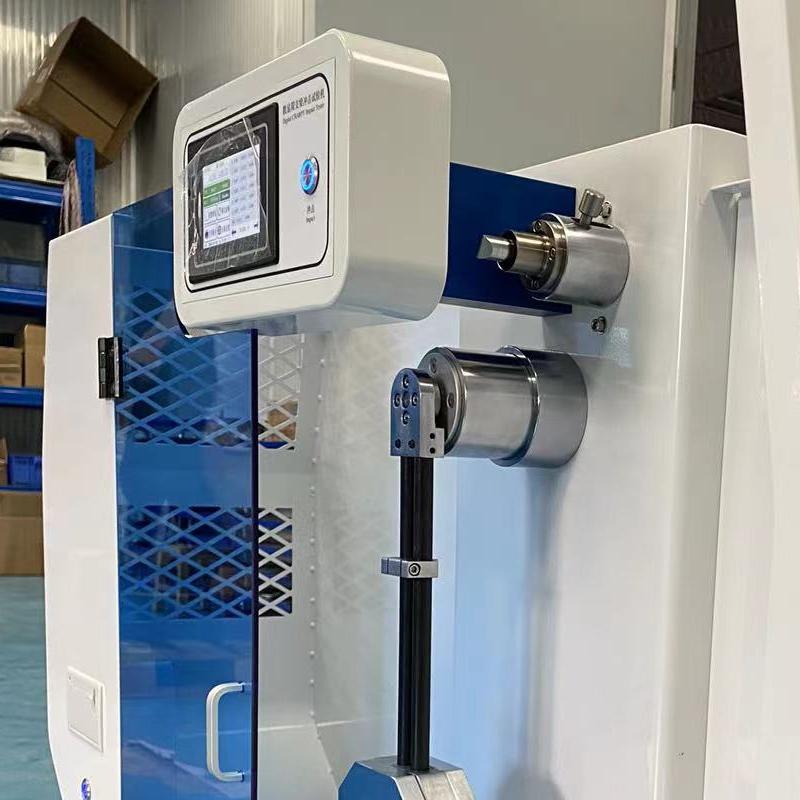

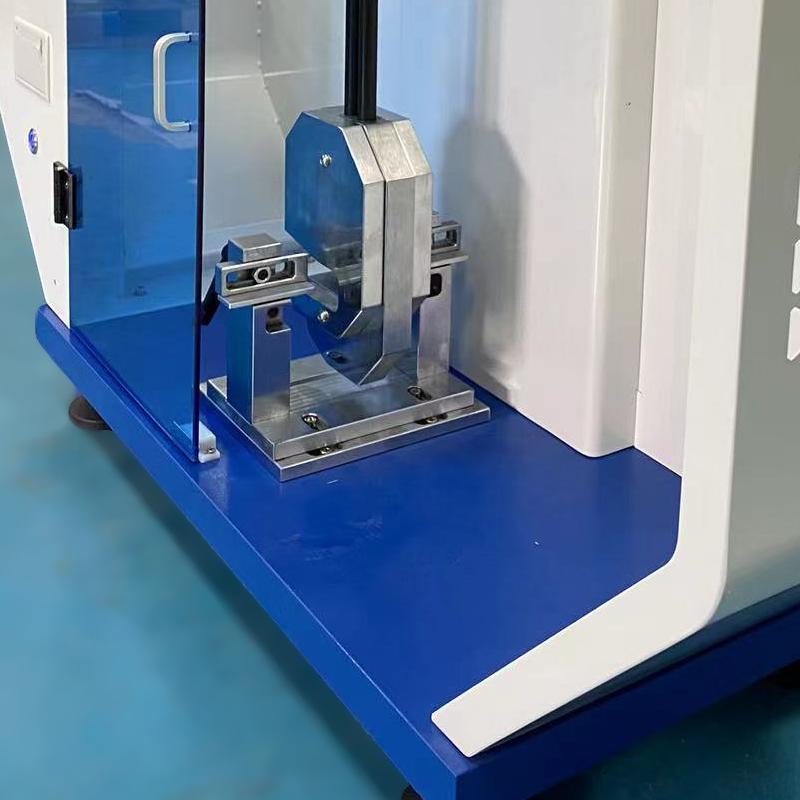

YOUKE YK-3659 Digital Display Simply Supported Beam Impact Tester

YK-3659

Digital Simply Supported Beam Impact Tester

Accuracy to 0.01 °, color touch screen, using imported high-resolution digital encoder, automatic calculation of final results, built-in micro printer printing test data.

Introduction

The digital simply supported beam impact testing machine is mainly used to measure the impact toughness of non-metallic materials such as hard plastics, reinforced nylon, fiberglass, ceramics, cast stones, and electrical insulation materials. It is a suitable testing equipment for chemical industry, scientific research units, colleges and universities, quality inspection and other departments.

Features

• High-precision intelligent controller, equipped with LCD display, can read data intuitively and accurately

• The use of carbon fiber pendulum rods improves the rigidity of the material in the impact direction and concentrates the impact mass on the center of mass of the pendulum, achieving a vibration-free impact test and extending the service life.

• Using imported high-resolution digital encoders, the angle measurement accuracy is higher and more stable.

• The aerodynamic impact hammer and imported ball bearings greatly reduce the friction loss caused by the machine.

• Automatically calculate the final result, the test data can save 12 sets of data and calculate the average

• Chinese and English operation interfaces can be selected, and test results can be selected in units such as J/m, KJ/㎡, kg-cm/cm, ft-ib/in, etc.

• Built-in micro printer prints test data

Implementation standards

• ISO179-2000 "Plastics - Determination of Impact Strength of Simply Supported Beams of Hard Materials"

• GB/T1043-2008 "Impact test method for rigid plastic simply supported beams"

• JB/T8762-1998 "Plastic simply supported beam impact testing machine"

• GB/T 18743-2002 "Character beam impact test method for thermoplastic pipes for fluid transportation" (applicable to pipe fittings)

Packing list：machine x1, manual x1, certificate of conformity x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
