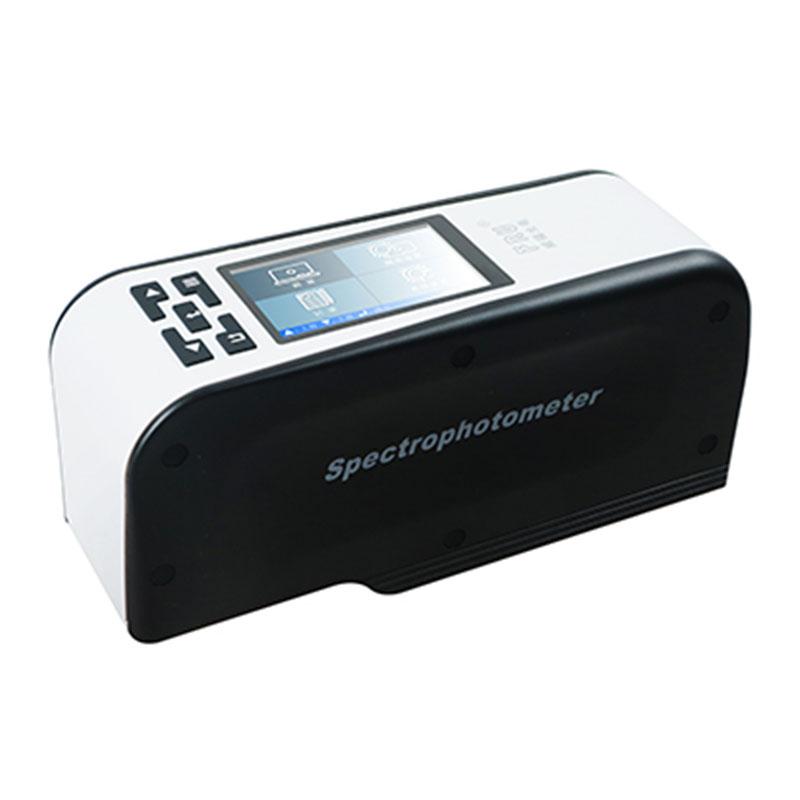

IWAVE WS4500 Colorimeter

WS4500

Colorimeter

45-Degree ring light illumination, using 1200-line high-precision Diffraction grating for spectroscopy, using high-sensitivity 2048 pixel CCD Sensors, measurement interface displays a variety of data at the same time

Introduction

WS4500 is a portable Spectrophotometer with 8mm diameter, suitable for quality control and color evaluation of different measurement planes in various industries. It has many functions and is easy to carry, suitable for fast, portable and precise color control.

Usage: measure the standard sample first, and then measure the sample. The color difference value will appear on the color LCD screen.

Features

• Accurate data

Using a self-developed spectral detection core, combined with standard data from the CHINA Institute of Testing Technology, to achieve more accurate color parameter measurement;

• Data consistent

Each color measuring instrument has undergone careful debugging and strict quality control, using up to 24 color blocks (X-Rite standard 24 Color Charts) for data consistency testing to ensure data consistency.

• Humanized appearance design

The ergonomically designed body brings you a more comfortable measurement experience;

It adopts TFF color high-definition display and graphical user interface to achieve easier operation for you;

The body is small in size, light in weight and easy to carry;

• Low power consumption design

Adopt low-power design principles and integrate low-power design into every module at any cost;

The lithium battery can be measured up to 10,000 times per charge, which is 8 to 10 times the industry average;

Low-power LED light source design, lower power consumption, longer life (20,000 hours to more than 50,000 hours), convenient for long-term mobile and outdoor measurements;

• Quick measurement

The spectrum detection core adopts a high-sensitivity design, and the detection sensitivity is increased by 5 times to achieve more sensitive and faster measurements. The measurement interval is <1.5 seconds, and the measurement speed is industry-leading;

• Excellent stability

The electronic system adopts the mainstream ARM+FPGA architecture, which has the characteristics of large data throughput, stable operation, high system reliability, and strong anti-interference ability;

The spectrum detection core uses correlated double sampling technology to effectively suppress external interference and system noise. It is a reliable weak signal detection technology;

• More accurate spectral data, more accurate LAB values

A high-precision diffraction grating with 1200 lines is used for light splitting to better separate light waves of different wavelengths;

Using a highly sensitive 2048-pixel CCD sensor, it can detect spectral data more accurately and obtain accurate color information.

• Richer display content

The measurement interface displays standard sample data, sample data, measurement conditions, reflection spectrum curves, and color simulation at the same time, enabling all color information to be displayed in one measurement;

Multiple color spaces, standard light sources, and color difference formulas are available to meet the various needs of customers;

• High performance lithium battery

Low power consumption design and high-performance lithium battery can perform more than 10,000 measurements when fully charged, making it convenient for long-term mobile and outdoor measurements.

Packing list：host X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
