TaiSiTe TEX-230LG-30L Explosion-proof vertical Forced Air Drying Oven Specifications

Search

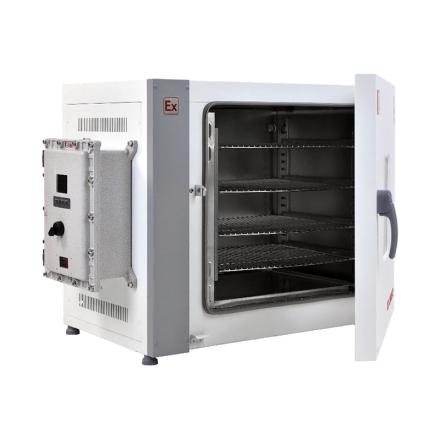

TAISITE TEX-230LG-30L Explosion-proof vertical Forced Air Drying Oven

Brand:TaiSiTe

Model:TEX-230LG-30L

Name:Explosion-proof vertical Forced Air Drying Oven

DetailsContact
Specifications
Explosion-proof level EX d e mb IIB T4 Gb
Door opening method single door
Temperature range RT+10~300℃
Temperature Resolution 0.1℃
Temperature Fluctuation ±1℃
Temperature Uniformity ±2.5%
fan Explosion-proof fan
Enclosure Material Cold rolled steel plate, surface resistance painting
Thermal Insulation aluminum silicate fiber
Heating mode Explosion-proof stainless steel heating pipe (explosion-proof qualification)
Input Power 3.0KW
Exhaust Port Should 30mm, top
control box Explosion-proof qualification box centralized explosion-proof design
Temperature representation LCD display (flameproof button)
Timer 0~9999Min (with Timer waiting)
Operational Features Fixed value operation, regular operation, automatic stop
Program Mode optional
Temperature sensor 2 pt100 (explosion-proof qualification), 1 control and 1 prevention
blower Explosion-proof special motor (with explosion-proof qualification)
switch Explosion-proof switch (with explosion-proof qualification)
external connection Adopt explosion-proof torsion pipe (explosion-proof qualification)
Power cord Explosion-proof flexible connection, explosion-proof connection pin.
Additional features Deviation correction, menu button lock, power failure compensation, power failure memory
Safety Devices Over-rise protection, leakage current protection, Independent Overtemperature Protection protector (built in the explosion-proof control box, the maximum temperature limit).
Safety Devices Over-temperature alarm
Interior size 500*600*750mm
Volume 230L
Load per shelf 15kg
Shelves (max) 2nd floor
Power AC220/50-60Hz,18.2A
Optional accessories Shelf, RS485 interface, printer, recorder, external communication, remote control, programmed temperature Controller, unlimited SMS alarm, U disk data storage.
Packing list
machine X1, manual X1, certificate X1, warranty card X1
After-sales instructions

Warranty days: 365 days
