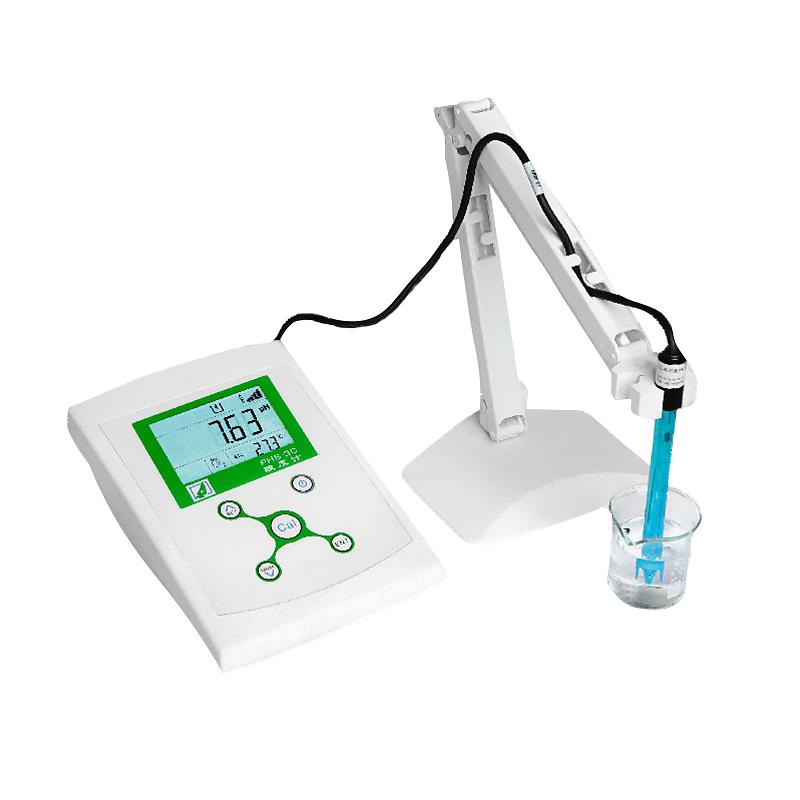

FANGZHOU PHS-3F + acidity meter pH value Tester

PHS-3F+

Acidity meter

Instrument level 0.01, multiparameter measurement, pH, mV, RelmV, ORP, T value, with self-diagnostic function, judge the working state of the host and electrode performance, the chassis shell is IP54 Protection level

Features

The main function

• Large screen true color TFT LCD display, chart display, menu navigation operation

• Multi-parameter measurement, pH, mV, Relmv, ORP, T value

• 2 resolutions available: 0.01pH/0.1pH 0.1mV/1mV

• Equipotential function to meet different zero potential electrode applications

• The chassis shell is IP54 protection grade

Intelligent detection

• Intelligent operating system, with functions such as electrode management, calibration management, data management and user management

• 10 sample ID numbers, 10 personnel ID numbers, with GLP setting and query functions, truly realizing GLP function management

• Automatically identify 20 kinds of pH standard solutions in 4 groups of GB, Europe, Merck and DIN, one-click calibration, up to 5 points calibration

• The instrument automatically identifies and calibrates, and the graph displays the calibration curve and calibration information (calibration points, calibration date and time, solution stability and slope to directly express pH electrode status)

• ATC automatic recognition, automatic/manual temperature compensation

• Five measurement modes: real-time, scheduled, automatic fast, automatic medium speed, automatic slow speed measurement

• With self-diagnosis function, it can judge the working status of the host and electrode performance

• Dual display of clock and date, showing current time and providing time reference for digital recording function

• Timing storage time in interval: (0-3600) seconds

Data management and traceability

• Complying with GLP specifications, it supports 10,000 groups of data storage, allowing users to print measurement results directly or send data to a computer for data management: the instrument can send stored data to computer acquisition software, and can export Excel files, Notepad files, etc. , convenient for users to perform operations such as archiving, statistics, analysis, comparison, and saving of measurement data.

• The RS232 serial port provides two application modes: (1) Connect to a micro printer to print report results (2) Send data to the computer for data statistics

Packing list：

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
