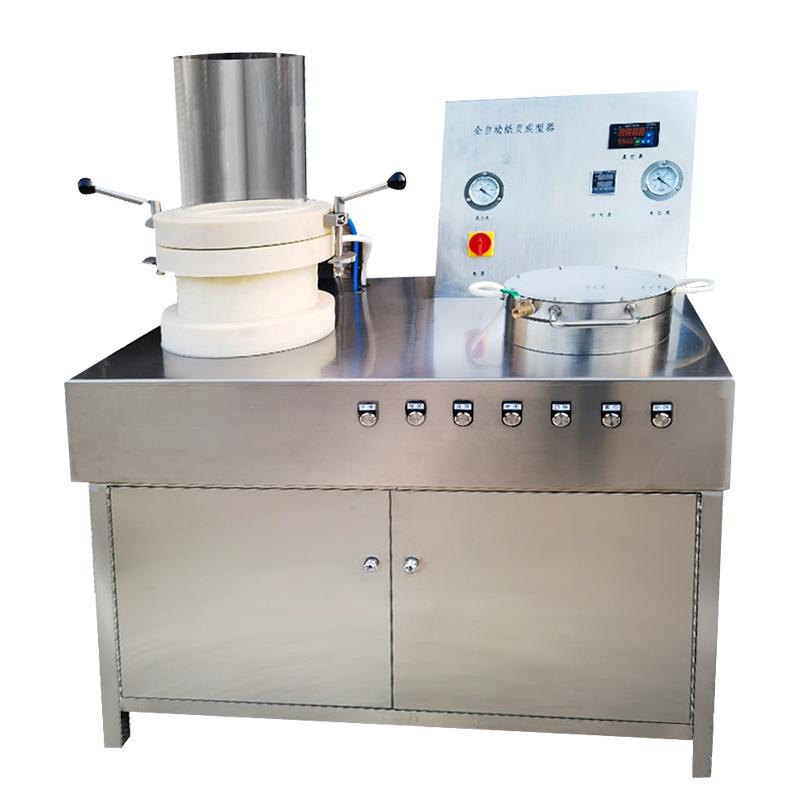

JINGWEN JWJ01A1 Paper forming machine, sample extractor, sample diameter ≤ 200mm

JWJ01A1

Paper Former

It integrates Vacuum Pumping, pressing and vacuum drying, the drying temperature is ≤ 120 ℃, in line with QB/T3703-1999 standard, electric sizing, and the countertop material is 304 stainless steel.

Introduction

Pattern extractor is a kind of experimental equipment for hand-copying pulp and rapid vacuum drying. In the laboratory, after various fibers such as plants and minerals are boiled, beaten, and sifted, the pulp is thawed to a standard, and then put into a sheet-copying cylinder. After stirring, it is quickly pumped into shape, and then pressed and vacuum dried on the machine to form a circular sheet with a diameter of 200 mm. The sheet can be used as a sample for further physical testing.

The technical specifications of this equipment meet the requirements of QB/T3703-1999 (preparation of pulp laboratory paper + conventional paper former method), ISO 5269/2 & ISO 5269/3, 5269/2, NBR 14380/99, TAPPI T-205, DIN 54358, ZM V/8/76.

This machine is an all-electric controlled molding equipment integrating Vacuum Pumping molding, pressing and vacuum drying. It is suitable for pumping molding and vacuum drying of various microfibers, nanofibers and ultra-thick sheets.

Product Features

Sheet copying and vacuum drying are integrated;

White water cycle;

Electric sizing;

Compressed air homogenization, manual homogenization, quick water release;

Microfiber and ultra-thick sheet forming auxiliary device;

The countertop material is stainless steel (304L), the drying body is equipped with an elastic suction and flattening device, the drying thickness of the pattern can reach 10mm, the Vacuum Pump automatic anti-oil return device, and the external water source quick connector;

The user only needs to plug in the power plug and connect the water source quick connector to work.

It adopts three-stage centrifugal special Vacuum Pump, which uses the principle of venturi tube and centrifugal vacuum technology to generate high negative pressure, with small size, compact structure and large air extraction volume;

The vacuum is high, and the use process does not require maintenance. Can work in harsh environments.

Packing list：Complete machine X1, manual X1, certificate of conformity X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
