BENTING CSX2-5-12 Box-Type Resistance Furnace refractory brick muffle furnace

SE
Standard 50-segment program temperature control, room temperature + 50~1200 ℃, fluctuation +/- 2 ℃, 7.2L volume, liner adopts refractory brick, can be scheduled to switch on and off, 5-inch touch screen.
$972.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con CAT
Similar products

BenTing CSX2-5-12 Box-Type Resistance FurnaceSPEC

BenTing CSX2-5-12 Box-Type Resistance FurnaceDetails

BenTing CSX2-5-12 Box-Type Resistance FurnacePacking list

SKU
NB043044
display mode
LCD word display
Power Supply
AC220V 50HZ
Temperature range
RT+50~1200℃
Temperature Resolution
1℃
Temperature fluctuation
±2℃
Ambient Operating Temperature
5℃~40℃
input power
5000W
Dimensions
460*630*500mm
Timer Range
1~9999min
after-sales
National joint insurance service
Door opening method
Open the door manually
Furnace Volume
7.2L
optional
Programmable Controller, printer, RS485 interface, mobile phone remote control and other ancillary functions.
CSX2-5-12
Box-Type Resistance Furnace
Standard 50-segment program temperature control, room temperature + 50~1200 ℃, fluctuation +/- 2 ℃, 7.2L volume, liner adopts refractory brick, can be scheduled to switch on and off, 5-inch touch screen.

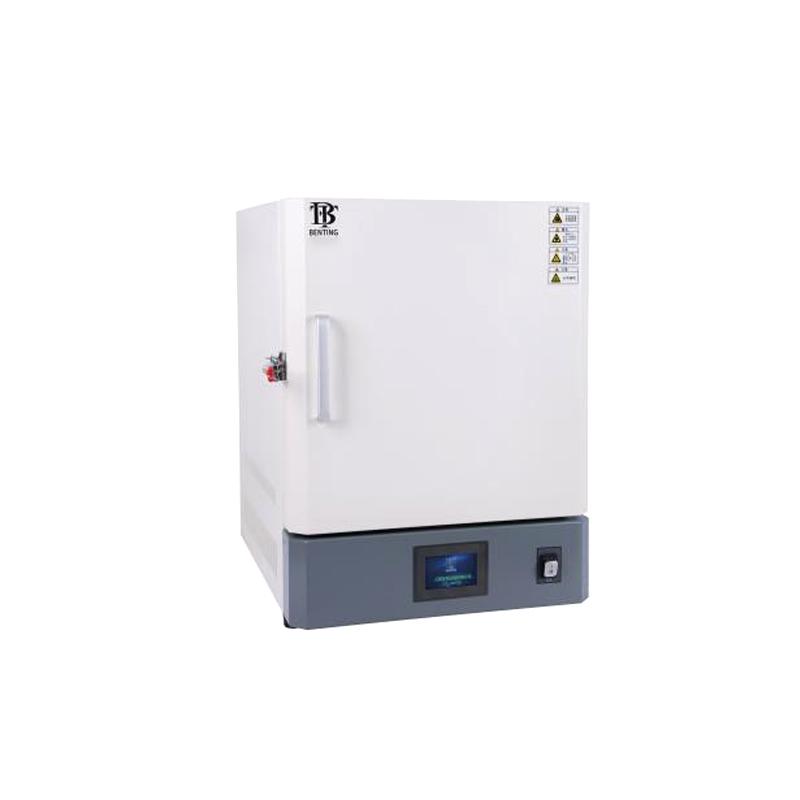

BENTING CSX2-5-12 Box-Type Resistance Furnace refractory brick muffle furnace Picture

Introduction

Refractory brick muffle furnace, also known as (box-type Resistance Furnace), is a periodic operation type electric furnace, which can be used for chemical analysis, physical determination and general small steel parts for heating in laboratories of industrial and mining enterprises, scientific research and other units.

Features

● The inner container is made of refractory bricks, and the equipment is cost-effective.

● Intelligent controller, good temperature control effect; exported to European countries in large quantities.

● Digital one-screen display, temperature, time and other parameters.

● Manufactured by an honest enterprise, the product is durable, and the parameters are presented without reservation.

humanized design

●A streamlined and luxurious overall machine with an aesthetic design concept, and an electrostatically sprayed plastic box.

● The furnace body is made of refractory brick, which has good thermal insulation performance.

● 5-inch touch screen, standard 50-segment program temperature control, heating rate, over-temperature alarm, timing, restart to restore temperature and time memory, display heating curve, can record 800 minutes of data (recorded per minute), and can make an appointment for timing switch machine.

security function

● Consider safety protection design to realize triple safety protection for personnel, samples and equipment

● Safety functions: sensor failure alarm, over-temperature alarm, independent over-heating preventer, independent over-temperature protector, over-current tripping protection, etc.


FAQ
QOur laboratory needs to do small steel heat treatment, and the budget is limited. Is there any cost-effective box furnace recommended?
A Recommended BENTING CSX2-5-12 box type resistance furnace, it uses refractory brick liner, good insulation effect and affordable, suitable for your small steel heat treatment needs, temperature control accuracy +/- 2 ℃ fully meet the requirements.
QTo do material analysis experiments, you need a furnace that can program temperature control and data recording. Which one is suitable?
A BENTING CSX2-5-12, which comes standard with 50-segment program temperature control function, can also record 800 minutes of experimental data, and is easy to operate with a 5-inch touch screen. These functions are just right for your temperature control and data recording needs for material analysis experiments.
QOur laboratory needs to do heat treatment of small steel parts. Is there any suitable box type resistance furnace recommended?
A Temperature range of CSX2-5-12 box type resistance furnace RT + 50~ 1200 ℃, fully meet the needs of small steel heat treatment, and the use of refractory brick furnace insulation effect is good, intelligent controller can accurately control temperature, cost-effective.
QWe need to remotely monitor experimental data. Can this stove be achieved?
A Yes, CSX2-5-12 supports optional RS485 interface and mobile phone remote control, and can also connect the printer to record data. The 5-inch touch screen can display heating Linear dispersion and record 800 minutes of data, which is very suitable for experimental scenarios that require remote monitoring and Data analysis.
