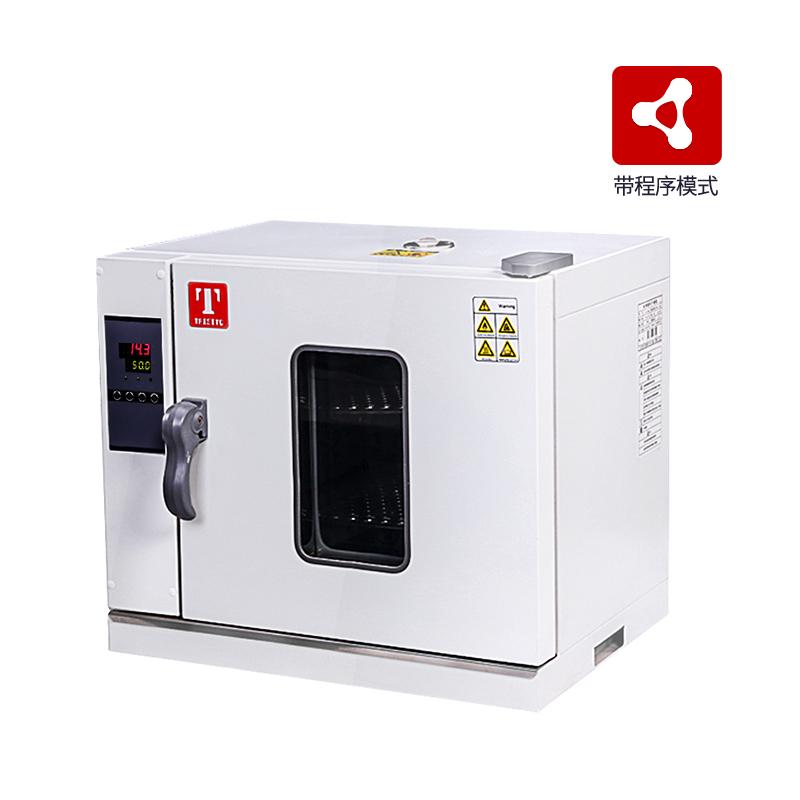

TAISITE 101-3DB programmable desktop electric blast oven 250 ℃/225L
Temperature range RT + 10~250 ℃, with timing function, support over-rise alarm, liner size is 600 * 500 * 750mm, material is high-strength carbon steel plate.
Model：
101-3DB (with program mode)
Similar products
-
Kenton KH-75A laboratory electric air blowing dryer 225L with independent temperature limiter$ 534.00SE -
Kenton KH-75AS digital electric air blowing dryer 250 ℃/225L with independent temperature limiter$ 744.00SE -
Kenton KH-75T digital electric air blowing dryer 250 ℃/228L with independent temperature limiter$ 1350.00SE
TaiSiTe 101-3DB (with program mode) Electric Forced Air Drying OvenSPEC
TaiSiTe 101-3DB (with program mode) Electric Forced Air Drying OvenDetails
TaiSiTe 101-3DB (with program mode) Electric Forced Air Drying OvenPacking list
- SKU
- NB043093
- Temperature range
- RT+10~250°C
- Temperature Fluctuation
- ±1.0℃
- Temperature Resolution
- 0.1℃
- Temperature Uniformity
- ±2.5％
- Volume
- 225L
- Interior size
- 600*500*750mm
- Chamber material
- High strength carbon steel plate
- Shelf (std.)
- 2pcs
- Shelves (max)
- 21pcs
- Load per shelf
- 15kg
- Timer
- 0~9999Min (with Timer waiting)
- Power
- AC220V/18.2A 50/60Hz
- Input Power
- 3.0Kw
- Dimensions
- 890*613*970mm
- Net Weight
- 77kg
- Enclosure Material
- Cold rolled steel plate, surface resistance painting
- Thermal insulation material
- aluminum silicate fiber
- Heating mode
- Stainless steel heating tube
- Exhaust port
- Inner diameter 28mm * 1, overhead test hole
- thermostat
- Digital tube dual row PID
- Temperature setting
- Tap the four-button settings
- Temperature representation
- Measuring temperature display: 4-digit digital upper display; setting temperature display: 4-digit digital lower display
- Run function
- Fixed value operation, Timer operation, automatic stop
- Program Mode
- Standard, single-stage temperature control and program temperature control can be converted to each other, 50 experimental programs can be stored, each program can be set to 50 steps, each step can be set to 0-6000 minutes adjustable
- Additional features
- Deviation correction, menu button lock, power outage compensation, power outage memory
- Temperature sensor
- pt100
- Packing size
- 1012*773*1160mm
- Shelf spacing
- 25mm
- Gross Weight
- 96Kg
- Safety Devices
- Overrise alarm
101-3DB (with program mode)
Electric Forced Air Drying Oven
Temperature range RT + 10~250 ℃, with timing function, support over-rise alarm, liner size is 600 * 500 * 750mm, material is high-strength carbon steel plate.
Features
The transverse air circulation structure is conducive to air mixing, high space utilization, and fast drying rate.
Convenient operation, fixed value operation, timed operation, automatic stop.
Dedicated function keys enable temperature setting.
Auxiliary menu, to achieve over-rise alarm, deviation correction, menu locking.
The forced fan heat dissipation and air intake structure makes the maximum working temperature of the fan < 50 °C, and the long-term longevity operation.
Security:Over-lift alarm, menu lock.
Advantages
Figure 1:Multi-function control panel
Figure 2:Warming curve. Time is measured in minutes and temperature is measured in °C
Fig. 3: Exhaust holes: Multi-functional exhaust design
Parameter comparison
| Model | Rated power | Content volume |
| 101-0D/101-0DB | 1.2KW | 43L |
| 101-1D/101-1DB | 1.6KW | 71L |
| 101-2D/101-2DB | 2.0KW | 136L |
| 101-3D/101-3DB | 3KW | 225L |
| Other parameters | ||
| Convection mode | Side air ducts force convection | |
| Operating temperature range | RT+10～250℃ | |
| Temperature resolution | 0.1℃ | |
| Temperature fluctuations | ±1.0℃ | |
| Temperature distribution accuracy | ±2.5％ | |
| Built-in | B: Stainless steel plate None B: High-strength carbon steel plate | |
| Exterior | Cold-rolled steel plate, surface resistant coating | |
| Insulating materials | Aluminum silicate fiber | |
| heater | Stainless steel heating tubes | |
| Exhaust outlets | Inner diameter 28mm*1, overhead test hole | |
| Temperature control method | Digital tube double row PID | |
| Temperature setting method | Tap the four buttons to set it | |
| Temperature representation | Measured temperature display: 4-digit digital upper display, set temperature display: 4-digit digital lower display | |
| timer | 0~9999 minutes (with timed waiting function) | |
| Run the function | Fixed-value operation, timed operation, automatic stop | |
| Program mode | Standard, single-stage temperature control and program temperature control can be converted to each other, 50 experimental programs can be stored, each program can be set to 50 steps, each step can be set 0-6000 minutes can be adjusted | |
| Additional features | Deviation correction, menu key locking, power failure compensation, power failure memory | |
| sensor | pt100 | |
| Safety devices | Overlift alarm | |
