Brand：TaiSiTe
Model：WHL-30B (with program mode)

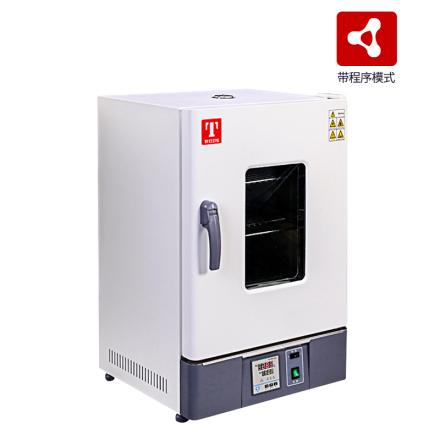

Name：Electric thermostatic Drying Oven
Specifications
| Temperature range | RT+10~300°C |
| Temperature Fluctuation | ±1.0℃ |
| Temperature Resolution | 0.1℃ |
| Temperature Uniformity | ±3.5％ |
| Volume | 30L |
| Interior size | 310*310*310mm |
| Chamber material | stainless steel plate |
| Shelf (std.) | 2pcs |
| Shelves (max) | 6pcs |
| Load per shelf | 15kg |
| Timer | 0~9999Min (with Timer waiting) |
| Power | AC220V/3.6A 50/60Hz |
| Input Power | 0.8Kw |
| Dimensions | 445*440*690mm |
| Net Weight | 32kg |
| Enclosure Material | Cold rolled steel plate, surface resistance painting |
| Thermal insulation material | aluminum silicate fiber |
| Heating mode | Nickel-chromium alloy heating wire OCr27A17Mo2 |
| Exhaust port | Inner diameter 28mm * 1, top |
| thermostat | Digital tube dual row PID |
| Temperature setting | Tap the four-button settings |
| Temperature representation | Measuring temperature display: 4-digit digital upper display; setting temperature display: 4-digit digital lower display |
| Run function | Fixed value operation, Timer operation, automatic stop |
| Program Mode | Standard, single-stage temperature control and program temperature control can be converted to each other, 50 experimental programs can be stored, each program can be set to 50 steps, and each step can be set to 0-6000 minutes adjustable |
| Additional features | Deviation correction, menu button lock, power outage compensation, power outage memory |
| Temperature sensor | pt100 |
| Packing size | 560*560*830mm |
| Shelf spacing | 35mm |
| Gross Weight | 37Kg |
| Safety Devices | Overrise alarm |
| Convection mode | Natural convection |
| Shelf (std.) | 2pcs |
| Shelf (std.) | 4pcs |
Packing list
complete-built unit X1, manual X1, certificate of conformity X1, warranty card X1
