Brand：TaiSiTe
Model：202-3AB (with program mode)

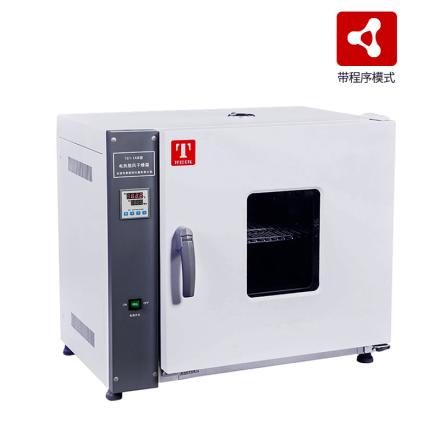

Name：Electric thermostatic Drying Oven
Specifications
| Convection mode | Natural convection |
| Temperature range | RT+10~250°C |
| Temperature Resolution | 0.1℃ |
| Temperature Fluctuation | ±1.0℃ |
| Temperature Uniformity | ±3.5％ |
| Chamber material | stainless steel plate |
| Enclosure Material | Cold rolled steel plate, surface resistance painting |
| Thermal insulation material | aluminum silicate fiber |
| Heating mode | Nickel-chromium alloy heating wire OCr27A17Mo2 |
| Input Power | 4Kw |
| Exhaust port | Inner diameter 28mm * 2, rear; overhead test hole |
| thermostat | Digital tube dual row PID |
| Temperature setting | Tap the four-button settings |
| Temperature representation | Measuring temperature display: 4-digit digital upper display; setting temperature display: 4-digit digital lower display |
| Timer | 0~9999Min (with Timer waiting) |
| Run function | Fixed value operation, Timer operation, automatic stop |
| Program Mode | Standard, single-stage temperature control and program temperature control can be converted to each other, 50 experimental programs can be stored, each program can be set to 50 steps, and each step can be set to 0-6000 minutes adjustable |
| Additional features | Deviation correction, menu button lock, power outage compensation, power outage memory |
| Temperature sensor | pt100 |
| Safety Devices | Overrise alarm |
| Interior size | 600*500*750mm |
| Dimensions | 860*623*985mm |
| Packing size | 1020*804*1102mm |
| Volume | 225L |
| Load per shelf | 15kg |
| Shelf (std.) | 21pcs |
| Shelf spacing | 25mm |
| Power | AC220V/18.2A 50/60Hz rated current |
| Net Weight | 77kg |
| Gross Weight | 95Kg |
| Shelf (std.) | 2pcs |
| Shelf (std.) | 4pcs |
Packing list
complete-built unit X1, manual X1, certificate of conformity X1, warranty card X1
