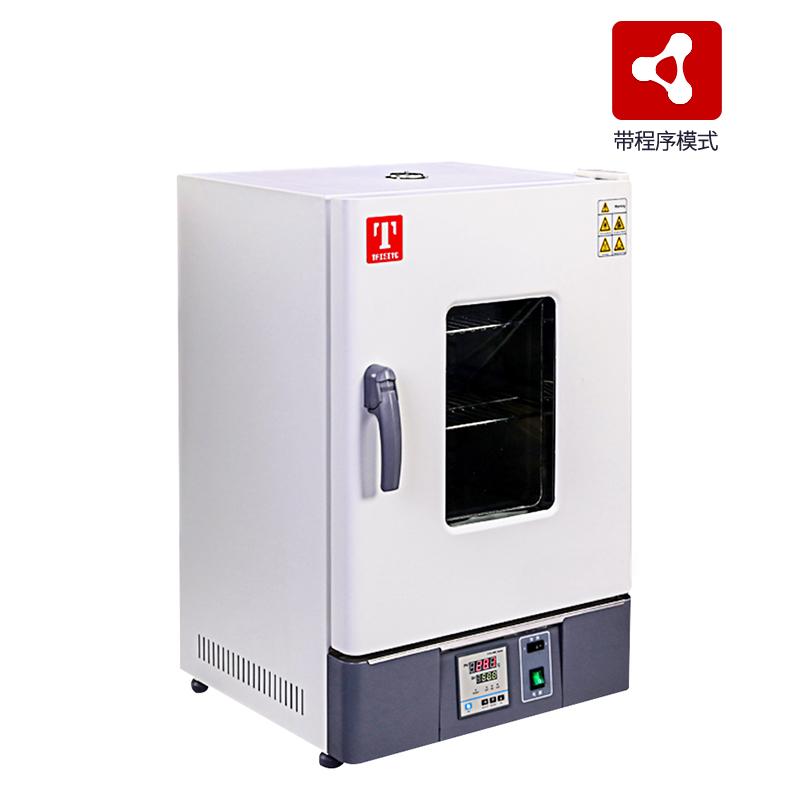

TAISITE WHLL-30BE electric thermostatic Drying Oven program-controlled type 300 ℃/30L

LCD, content volume 30L, using aluminum silicate fiber insulation material, natural convection air supply mode, dedicated function keys to achieve temperature setting.

Model：

WHLL-30BE (with program mode)

Certificate

TaiSiTe

Manufacturer authorization

Contact

Details SPEC CAT OI

TaiSiTe WHLL-30BE (with program mode) Electric thermostatic Drying OvenSPEC

TaiSiTe WHLL-30BE (with program mode) Electric thermostatic Drying OvenDetails

TaiSiTe WHLL-30BE (with program mode) Electric thermostatic Drying OvenPacking list

SKU: NB043099

Temperature range: RT+10~300°C

Temperature Fluctuation: ±1.0℃

Temperature Resolution: 0.1℃

Temperature Uniformity: ±3.5％

Volume: 30L

Interior size: 310*310*310mm

Chamber material: stainless steel plate

Shelf (std.): 2pcs

Shelves (max): 6pcs

Load per shelf: 15kg

Timer: 0~9999Min (with Timer waiting)

Power: AC220V/3.6A 50/60Hz

Input Power: 0.8Kw

Dimensions: 445*440*690mm

Net Weight: 32kg

Enclosure Material: Cold rolled steel plate, surface resistance painting

Thermal insulation material: aluminum silicate fiber

Heating mode: Nickel-chromium alloy heating wire OCr27A17Mo2

Exhaust port: Inner diameter 28mm * 1, top

thermostat: Liquid crystal dual row PID

Temperature setting: Tap the four-button settings

Temperature representation: Measuring temperature display: liquid crystal upper display; setting temperature display: liquid crystal lower display

Run function: Fixed value operation, Timer operation, automatic stop

Program Mode: Standard, single-stage temperature control and program temperature control can be converted to each other, 50 experimental programs can be stored, each program can be set to 50 steps, and each step can be set to 0-6000 minutes adjustable

Additional features: Deviation correction, menu button lock, power outage compensation, power outage memory, overlift preventer

Temperature sensor: pt100

Packing size: 560*560*830mm

Shelf spacing: 35mm

Gross Weight: 37Kg

Safety Devices: Overlift alarm, overlift preventer

Convection mode: Natural convection

Shelf (std.): 2pcs

Shelf (std.): 4pcs

WHLL-30BE (with program mode)

Electric thermostatic Drying Oven

LCD, content volume 30L, using aluminum silicate fiber insulation material, natural convection air supply mode, dedicated function keys to achieve temperature setting.

Benefits:

Advantages: High precision, effectiveness, safety, wide range.
Convenient operation, fixed value operation, timed operation, automatic stop.
Dedicated function keys enable temperature setting.
Auxiliary menu, realize over-rise alarm, deviation correction, menu locking.

Detail design advantages

Figure 1, double-layer insulation door design: Menzi adopts double-layer thermal insulation design, which is more comfortable for experiments.

Fig. 2, multi-function control panel: vertical double air duct air jacket, turbine centrifugal forced air supply, more uniform temperature.

Fig. 3, exhaust hole: multi-functional exhaust hole design

Fig. 4, multi-layer space multi-layer partition design: the partition spacing can be adjusted, which is convenient for placing experimental items of different heights.

Parameter comparison

Model		Rated power	Content volume
WHL-30B/WHLL-30BE		0.8KW	30L
WHL-45B/WHLL-45BE		1.0KW	45L
WHL-65B/WHLL-65BE		1.5KW	65L
WHL-125B/WHLL-125BE		2.5KW	125L
Other parameters
Convection mode	Natural convection
Operating temperature range	RT+10～300℃
Temperature resolution	0.1℃
Temperature fluctuations	±1.0℃
Temperature distribution accuracy	±3.5％
Built-in	Stainless steel plate
Exterior	Cold-rolled steel plate, surface resistant coating
Insulating materials	Aluminum silicate fiber
heater	Nichrome heating wire OCr27A17Mo2
Temperature control method	Type B: Digital tube double-row PID;BE type: LCD double-row PID
Temperature setting method	Tap the four buttons to set it
Temperature representation	Type B: Measured temperature display: 4-digit digital upper display, set temperature display: 4-digit digital lower display BE type: Measured temperature display: liquid crystal upper display, set temperature display: liquid crystal lower display
timer	0~9999 minutes (with timed waiting function)
Run the function	Fixed-value operation, timed operation, automatic stop
Program mode	Standard, single-stage temperature control and program temperature control can be converted to each other, 50 experimental programs can be stored, each program can be set to 50 steps, each step can be set 0-6000 minutes can be adjusted
Additional features	Deviation correction, menu button locking, power failure compensation, power failure memory (BE type: Overlift preventer)
sensor	pt100
Safety devices	Overlift Alarm (BE Type Overlift Arrester)
power supply	AC220V/3.6A 50/60Hz
